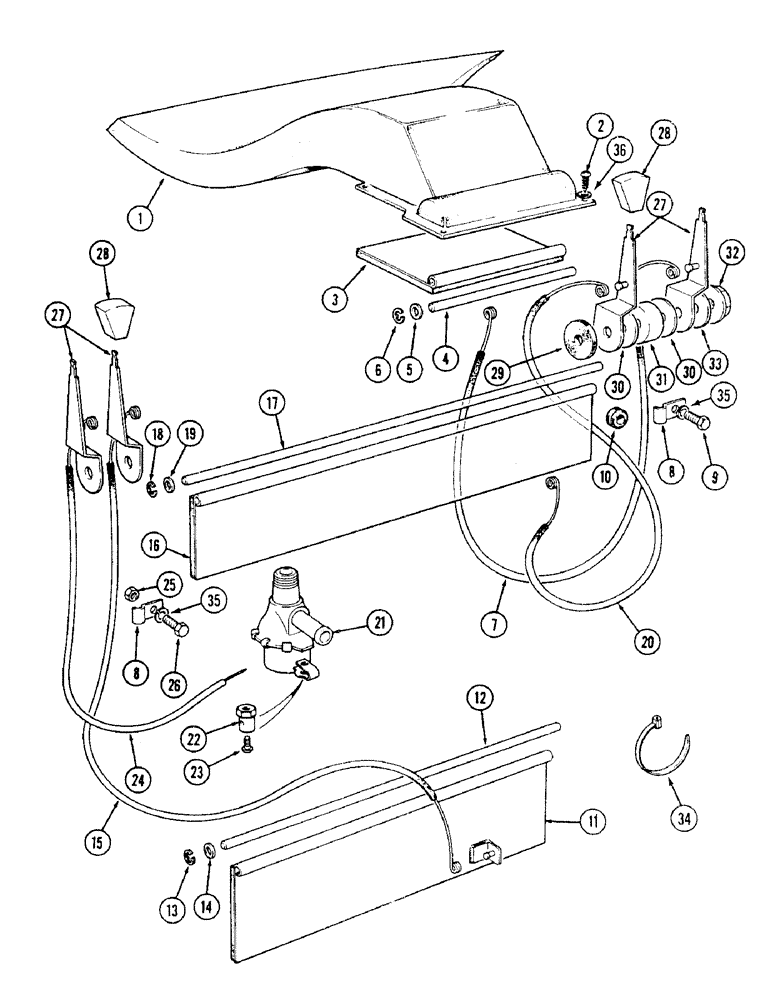

Запчасти Case IH 1494 (9-466) - HEATER CONTROLS, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

1

K303556

BRACKET

NOZZLE defroster

1шт.

2

K626212

SCREW

self tapping, no. 7 x 1/2 inch

4шт.

3

K303189

SHUTTER

defroster nozzle

1шт.

4

K303548

SHAFT

SPINDLE, 6 x 129 mm

1шт.

5

K303580

WASHER

SPACER spindle, 10 x 1.5 mm

2шт.

6

K657860

RING, SNAP

RING snap, anchor pin, 6 mm

2шт.

7

K303576

BOWDEN CONTROL

CABLE ASSEMBLY control, 1135/1070 mm

1шт.

8

K303732

CABLE

CLIP cable

6шт.

9

K652743

SCREW,M5 x 12mm

M5 x 12 mm

4шт.

10

K627700

GROMMET

6 x 10 x 1.5 mm

1шт.

11

K303167

SHUTTER

recirculating vent

1шт.

12

K303549

SHAFT

SPINDLE, 6 x 339 mm

1шт.

13

K657860

RING, SNAP

RING snap, anchor pin, 6 mm

2шт.

14

K303580

WASHER

SPACER spindle, 10 x 1.5 mm

2шт.

15

K303579

CABLE

ASSEMBLY control, 945/880 mm

1шт.

16

K303177

SHUTTER

interior vent

1шт.

17

K303551

SHAFT

SPINDLE, 6 x 393 mm

1шт.

18

K657860

RING, SNAP

RING snap, anchor pin, 6 mm

2шт.

19

K303580

WASHER

SPACER spindle, 10 x 1.5 mm

2шт.

20

K303578

CABLE

ASSEMBLY control, 825/745 mm

1шт.

21

K205318

VALVE

heater

1шт.

22

K952104

TRUNNION

no. 8 UNC

1шт.

23

70-1086

SCREW,Slotted Pan Hd, #8-32 x 3/8"

no. 8 x 3/8 inch

1шт.

24

K304229

CABLE

inner and outer

1шт.

25

825-1405

NUT,M5, Cl 8

2шт.

26

614-5016

BOLT,Hex, M5 x 0.8 x 16mm, Cl 8.8, Full Thd

2шт.

27

K310371

HANDLE

LEVER hand, Replaces: K303647

4шт.

28

K303754

KNOB

hand lever

4шт.

29

K310364

WASHER

10 x 30 x 4 mm

4шт.

30

K310365

WASHER

plastic, 10 x 30 x 2 mm

4шт.

31

K310367

BUSHING

SPACER, 30 x 14.5 mm

2шт.

32

K651554

NUT

M10

2шт.

33

K310366

NUT

M10, special

2шт.

34

K621734

CABLE

CLIP cable

1шт.

35

K651846

WASHER, LOCK

WASHER lock, 5 mm

6шт.

36

K651775

WASHER

plain, M5

4шт.
