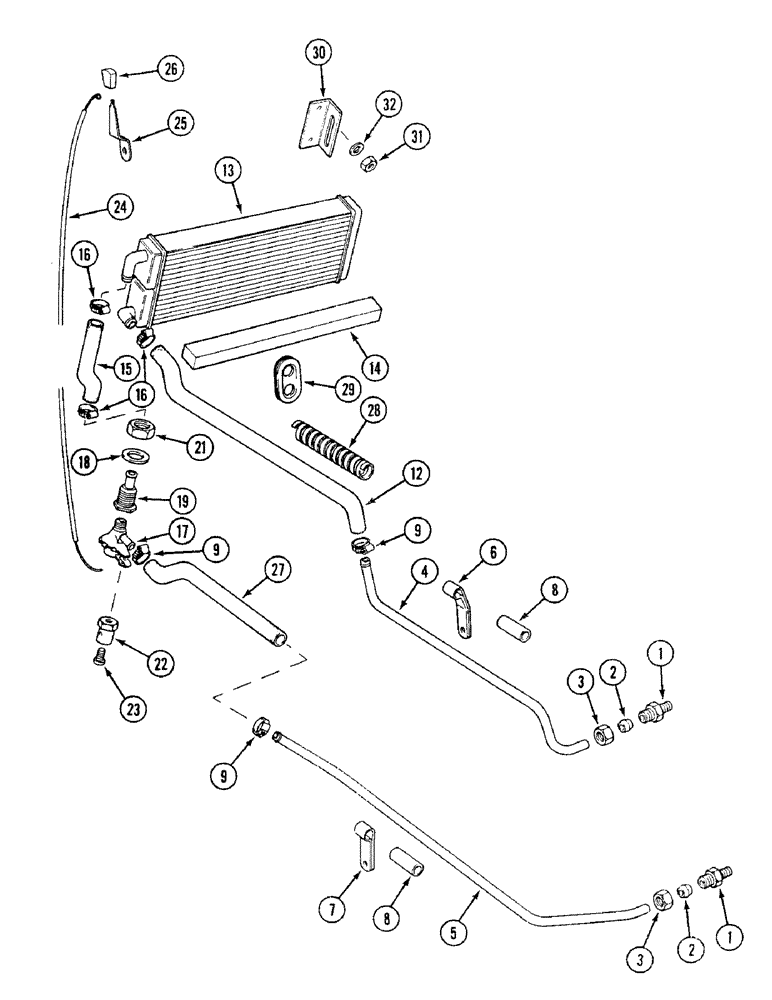

Запчасти Case IH 1494 (9-464) - CAB HEATER, TUBES AND FITTINGS (09) - CHASSIS/ATTACHMENTS

1

K626055

FITTING

UNION, 1/2 - 3/8 inch BSP

2шт.

2

K11904

FERRULE

SLEEVE, 1/2 inch internal diameter

2шт.

3

K623212

FITTING

NUT union, 1/2 inch BSP

2шт.

4

K205039

PIPE,0.5" OD

TUBE thermostat housing

1шт.

5

K205040

PIPE

TUBE water pump

1шт.

6

K205041

SHIM

CLIP housing tube

1шт.

7

K625011

CLIP

pump tube

1шт.

8

K926858

TUBE,0.47" ID x 0.625" OD x 1" L

SLEEVE nylon

2шт.

9

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

3шт.

12

K307265

HEATER HOSE,12.50 mm ID x 380.00 mm, SAE20R4 Class D1

- Radiator 12.50 mm ID x 380.00 mm, SAE20R4 Class D1

2шт.

13

K304486

HEATER

RADIATOR heater

1шт.

14

K308479

BAFFLE

radiator, without air conditioning

1шт.

15

1974651C1

HEATER HOSE,15.50 mm ID x 140.00 mm

HOSE , Valve to Radiator 15.50 mm ID x 140.00 mm

1шт.

16

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. #08, 0.50/0.91 Type F Worm

3шт.

17

K205318

VALVE

heater

1шт.

18

K627472

WASHER

1 inch

1шт.

19

K205316

ADAPTER

heater valve

1шт.

21

425-1416

JAM NUT,Jam, 1"-8, G5

hex, jam, 1 inch NC

1шт.

22

K952104

TRUNNION

no. 8 UNC

1шт.

23

70-1086

SCREW,Slotted Pan Hd, #8-32 x 3/8"

no. 8 x 3/8 inch

1шт.

24

K304229

CABLE

inner and outer

1шт.

25

K310371

HANDLE

LEVER hand, Replaces: K303647

1шт.

26

K303754

KNOB

hand lever

1шт.

27

K307264

HEATER HOSE

- Control valve

1шт.

29

K308480

GROMMET

bulkhead

1шт.

30

K303251

BRACKET

radiator

1шт.

31

825-13412

NUT,M12 x 1.25, Cl 8

cable, M12

2шт.

32

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.
