(9-462) - CAB AIR FILTER AND HEATER FAN

Запчасти Case IH 1494 (9-462) - CAB AIR FILTER AND HEATER FAN (09) - CHASSIS/ATTACHMENTS

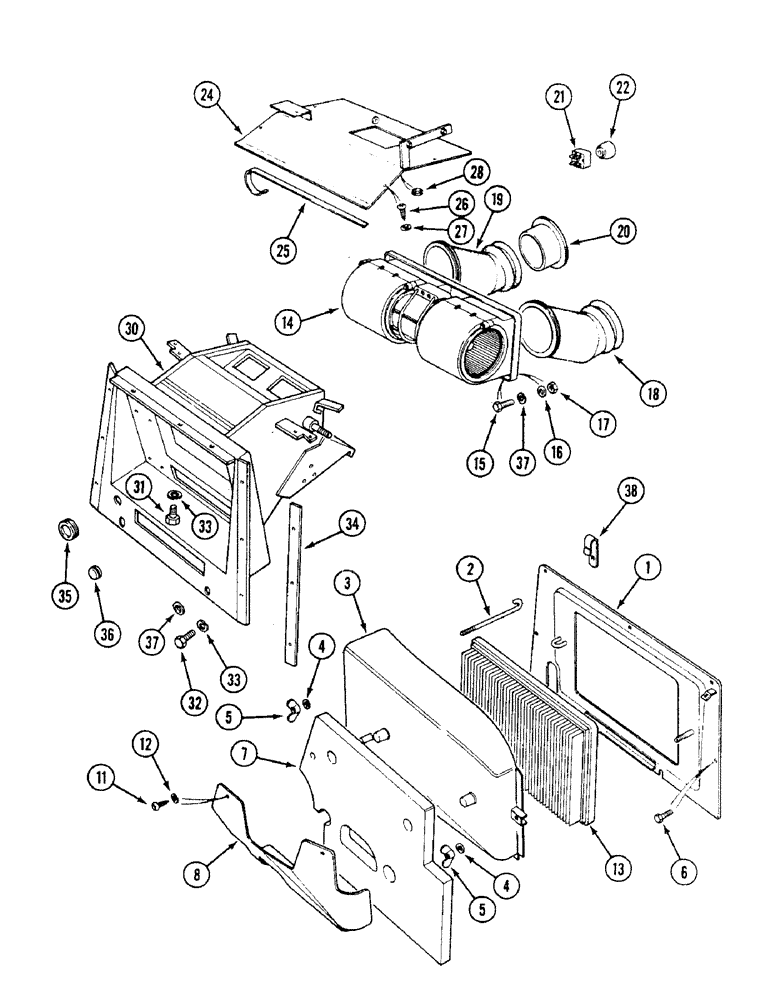

Схема запчастей Case IH 1494 - (9-462) - CAB AIR FILTER AND HEATER FAN (09) - CHASSIS/ATTACHMENTS
11
19
12
37
37
33
8
2
20
5
6
36
18
13
4
25
38
22
35
14
3
31
24
15
5
4
1
34
33
30
32
27
16
21
26
7
28
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

K307424

GUARD

PLATE support, filter

1шт.

2

K307547

BOLT

CLAMP filter

1шт.

3

K307502

BOX

filter

1шт.

4

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

5

E44806

NUT

M6

2шт.

6

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 12 mm

5шт.

6

K653344

SCREW

M6 x 16 mm

7шт.

7

K307868

FOAM

SEAL

1шт.

8

K307858

PLATE

seal retaining

1шт.

11

K656110

SCREW

self tapping

4шт.

12

K626310

WASHER

3/16 inch, 5 mm

4шт.

13

K303737

CAB FILTER

ELEMENT filter

1шт.

14

K303739

HEATER

FAN AND MOTOR ASSEMBLY cab

1шт.

15

K650603

BOLT

SCREW, M4 x 12 mm

7шт.

16

K651775

WASHER

plain, 4 mm

7шт.

17

K651624

NUT

M4

7шт.

18

K303555

FITTING

DUCT air, left hand

1шт.

19

K303554

FITTING

DUCT air, right hand

1шт.

20

K303740

NOZZLE CAP

NOZZLE air duct

2шт.

21

K303726

BLOWER SWITCH

SWITCH, heater fan

1шт.

22

K303738

KNOB

heater switch and air conditioning fan switch

1шт.

24

K303182

COVER

bulkhead

1шт.

25

K777030

FOAM

STRIP sealing, 8 x 15 mm, order L35799

1шт.

26

K656212

SCREW

no. 7 x 1/2 inch

5шт.

27

K651775

WASHER

plain, 4 mm

5шт.

28

K627754

GROMMET

wire, 14 mm

1шт.

30

K303494

PANEL

BULKHEAD cab, front

1шт.

31

K650816

SCREW,M8 x 1.25 x 1.25mm, Gr 8.8

M8 x 16 mm

3шт.

32

K650817

SCREW

M8 x 25 mm

8шт.

33

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

11шт.

34

K303345

FOAM

STRIP sealing, 2750 mm

1шт.

35

K627724

GROMMET

PLUG rubber, 1-3/16 inch

1шт.

36

K627742

GROMMET

PLUG rubber, instrument panel

1шт.

37

K651845

WASHER

lock, 4 mm

7шт.

38

K628378

CLIP

spring, vent tube

2шт.
