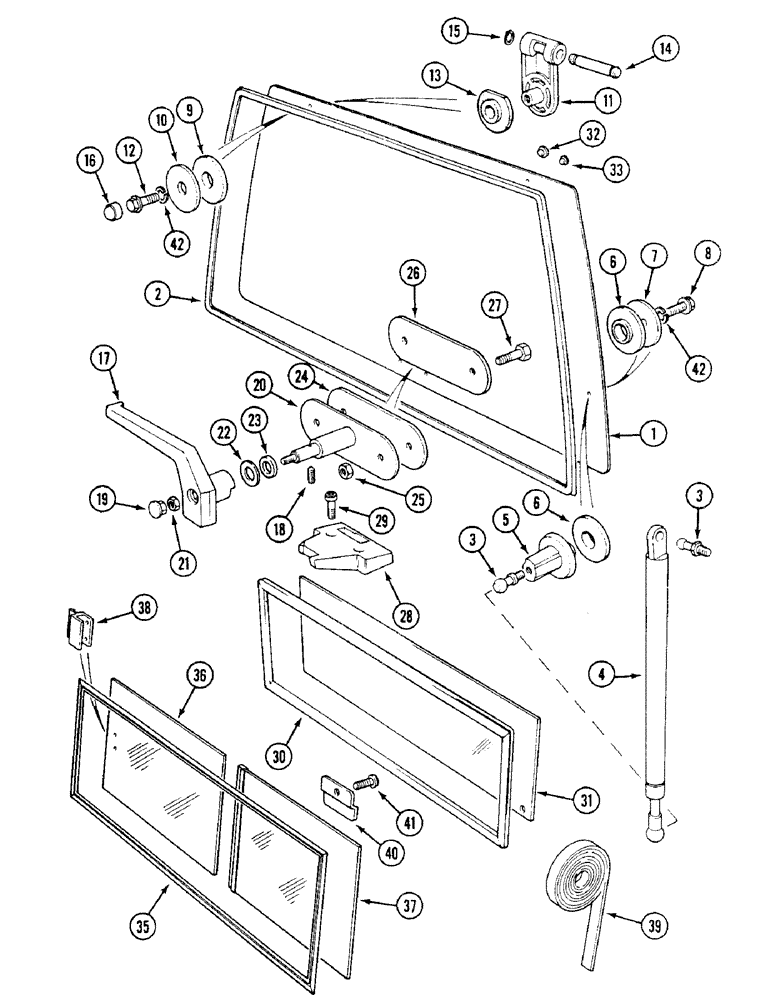

Запчасти Case IH 1494 (9-458) - REAR WINDOWS, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

1

K312000

GLASS

window, rear, Replaces: K307233 and K311314

1шт.

2

K303592

SEAL, GLASS

STRIP sealing

1шт.

3

K303756

BALL STUD,M6 x 1

BALL END, M6

4шт.

4

K303743

GAS STRUT

STRUT gas, rear window

2шт.

5

K303541

BRACKET

2шт.

6

K303501

SPACER,12mm ID x 18.5mm OD x 5.5mm L

WASHER rubber

4шт.

7

K303571

WASHER,6.5mm ID x 36mm OD x 3mm Thk

6 mm

2шт.

8

K650626

BOLT

M6 x 14 mm

2шт.

9

K303501

SPACER,12mm ID x 18.5mm OD x 5.5mm L

WASHER rubber

2шт.

10

K303571

WASHER,6.5mm ID x 36mm OD x 3mm Thk

6 mm

4шт.

11

K303875

HINGE

2шт.

12

K650626

BOLT

M6 x 14 mm

2шт.

13

K303928

GROMMET

WASHER rubber

2шт.

14

1535323C1

PIN,8mm OD x 78.5mm L

large, order also 1535283C1 snap ring

2шт.

15

K653509

RING, SNAP

RING retaining, 8 mm, external

4шт.

16

K965671

CAP

plastic

4шт.

K303983

HANDLE

ASSEMBLY, order components, Includes: Ref. 17 - 23

1шт.

17

194910A1

HANDLE

window, rear

1шт.

18

3125424R1

SCREW

locating, M4

1шт.

19

1340207C1

PLUG

window hinge

1шт.

20

1340202C1

PLATE

assembly

1шт.

21

K652106

LOCK NUT

self locking, M6

1шт.

22

406579R1

WASHER

flat, 17/32 inch

1шт.

23

1340206C1

RUBBER BUSHING

BUSHING rubber

1шт.

24

1340208C1

RUBBER PAD

PAD rubber

2шт.

25

K651474

NUT

M6

2шт.

26

K303508

PLATE

clamping, Includes: Ref. 27

1шт.

27

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 25 mm

2шт.

28

1340142C1

PLATE

striker

1шт.

29

840-1630

SCREW,Pan, M6 x 30mm, Cl 4.8

2шт.

30

K303947

GASKET

FRAME window, lower rear, fixed

1шт.

31

K307656

GLASS,CAB

GLASS window, lower rear, fixed

1шт.

32

F66090

PLUG

window, 29/32 inch diameter

1шт.

33

F64839

PLUG

window, rear

1шт.

35

K303645

WINDOW

ASSEMBLY sliding, rear, Includes: Ref. 36 - 39

1шт.

36

K303707

GLASS,CAB

GLASS window, sliding, lower rear, Includes: Ref. 38

1шт.

37

K303706

WINDOW

GLASS window, fixed, lower rear, Includes: Ref. 38

1шт.

38

K303746

HANDLE

sliding window

1шт.

39

K965590

SEALING STRIP

sealing, 6 meter roll

1шт.

40

K653339

SCREW,Hex, M5 x 0.8 x 12mm

M5 x 12 mm

4шт.

41

K303811

WASHER

SCREW retaining, rear window

4шт.

42

K651933

LOCK WASHER

WASHER lock, M6

4шт.
