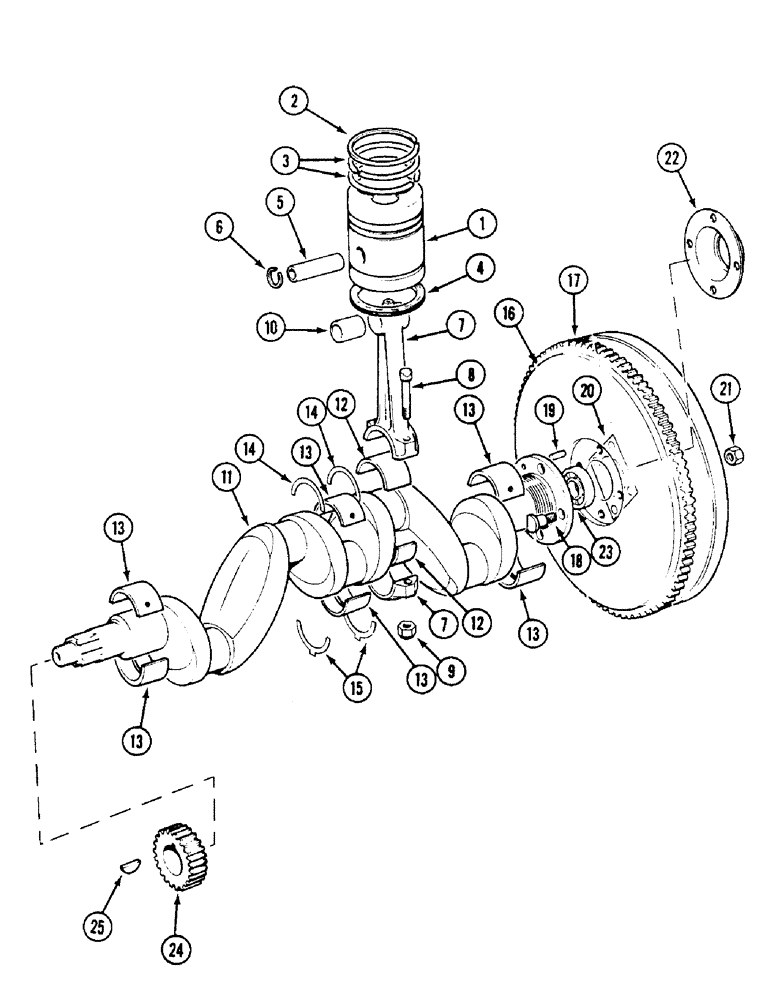

Запчасти Case IH 1494 (2-026) - PISTONS, CRANKSHAFT AND FLYWHEEL (02) - ENGINE

1

K944573

PISTON & RINGS KIT

PISTON ASSEMBLY, standard, Includes: Ref. 2 - 6

4шт.

2

K943881

RING, PISTON

RING piston, No., 1 compression

1шт.

3

K943882

RING, PISTON

RING piston, No., 2 and 3 compression

2шт.

4

K206956

RING, PISTON

RING piston, scraper

1шт.

5

K928547

PISTON PIN

PIN piston

1шт.

6

K34501

RING, SNAP

RING snap, 1-1/4 inch, 32 mm, internal

2шт.

1

K946354

PISTON

ASSEMBLY, 0.020 inch, 0.51 mm, oversize, Includes: Ref. 2 - 6

4шт.

2

K943885

RING, PISTON

RING piston, No. 1 compression

1шт.

3

K943886

RING, PISTON

RING piston, No. 2 and 3 compression

2шт.

4

K206961

RING, PISTON

RING piston, scraper, Replaces: K917412

1шт.

5

K928547

PISTON PIN

PIN piston

1шт.

6

K34501

RING, SNAP

RING snap, 1-1/4 inch, 32 mm, internal

2шт.

K261069

SET OF RINGS

RING KIT oil control, standard, one per piston

4шт.

K261070

PISTON RING SET

RING KIT oil control

4шт.

7

K923027

PITMAN ASSY.

CONNECTING ROD ASSEMBLY, Includes: Ref. 8 - 10

4шт.

8

K207581

STEP BOLT

connecting rod, 7/16 inch BSF

2шт.

9

K623151

LOCK NUT

self locking, 7/16 inch BSF

2шт.

10

K31669

BEARING

BUSHING small end

1шт.

11

K928415

CRANKSHAFT

1шт.

12

K929148

BEARING SET

BEARING large end, halves

8шт.

13

K928997

BEARING SET

BEARING main, halves

6шт.

14

K928998

WASHER

thrust, upper

2шт.

15

K928999

WASHER

thrust, lower

2шт.

12

K946351

BEARING SET

BEARING large end, halves

8шт.

Items 12 & 13, second set, K946351 & K946345, they are .010 undersize. cc 8/99

1шт.

13

K946345

BEARING SET

BEARING main, halves

6шт.

Items 12 & 13, second set, K946351 & K946345, they are .010 undersize. cc 8/99

1шт.

12

K946352

BEARING SET

BEARING large end, halves

8шт.

13

K946346

BEARING SET

BEARING main, halves

6шт.

14

K946347

WASHER

thrust, upper, 0.005 inch, 0.13 mm, oversize

2шт.

15

K946348

WASHER

thrust, lower, 0.005 inch, 0.13 mm, oversize

2шт.

14

K946349

WASHER

thrust, upper, 0.020 inch, 0.51 mm, oversize

2шт.

15

K946350

WASHER

thrust, lower, 0.020 inch, 0.51 mm, oversize

2шт.

16

K947029

FLYWHEEL

ASSEMBLY, Laycook independent clutch, Includes: Ref. 17

1шт.

17

K946819

GEAR

RING starter

1шт.

18

K903431

STEP BOLT

7/16 inch UNF special

4шт.

19

K10629

PIN

DOWEL, 1/2 x 15/16 inch

1шт.

20

K910883

WASHER

tab

1шт.

21

425-117

NUT,7/16"-20, G5

hex, 7/16 inch NF

4шт.

22

K912323

HOUSING

DISC clutch plate, independent

1шт.

23

K19167

BALL BEARING,22.23mm ID x 50.8mm OD x 14.29mm W

BEARING ball

1шт.

24

K945094

GEAR

crankshaft, 34 teeth

1шт.

25

K19608

KEY

Woodruff, No., 606

1шт.
