Запчасти Case IH 1494 (9-456) - FRONT AND SIDE WINDOWS, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

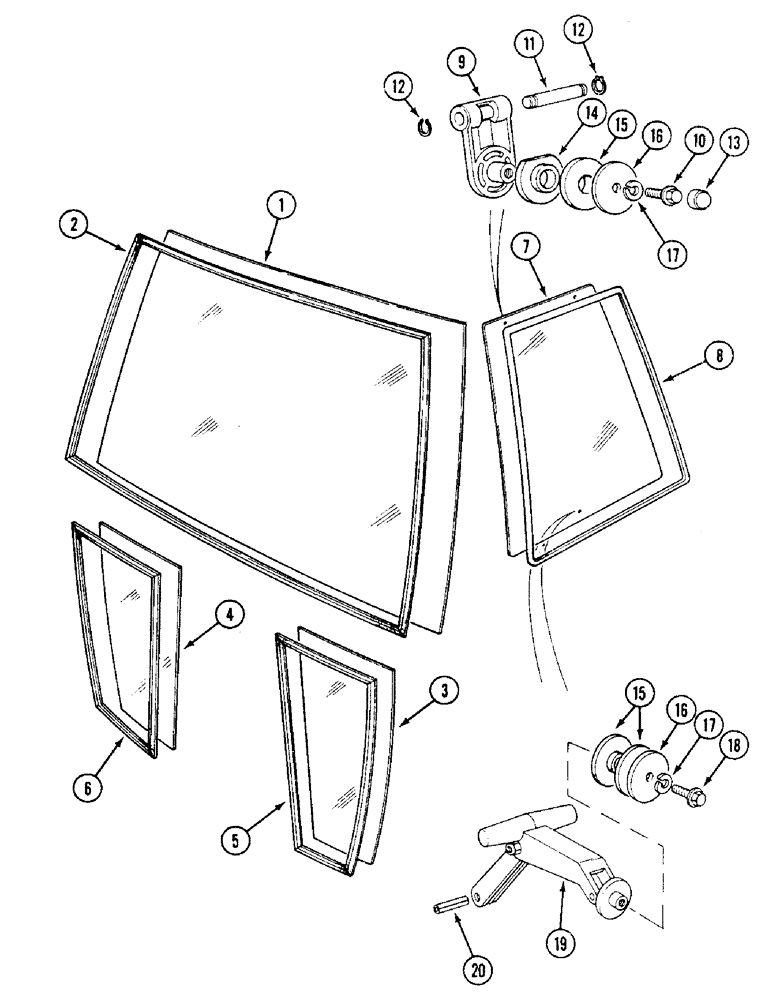

Схема запчастей Case IH 1494 - (9-456) - FRONT AND SIDE WINDOWS, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS
9
12
17
16
16
10
3
5
6
18
8
15
11
14
12
1
2
4
15
19
17
13
20
7

Артикул

Название

Примечание

Количество

1

K303699

GLASS

windshield

1шт.

2

K310092

RUBBER

FRAME rubber, windshield

1шт.

3

K303689

WINDOW

GLASS window, front left hand

1шт.

4

K303690

WINDOW

GLASS window, front right hand

1шт.

5

K31160

FRAME rubber, left hand window, Replaces: K303691

1шт.

6

K311649

SEAL, GLASS

FRAME rubber, right hand window, Replaces: K303692

1шт.

7

K303705

GLASS

window, side left hand

1шт.

7

K303704

GLASS

window, side right hand

1шт.

8

K303591

SEAL

STRIP sealing, 2325 mm

2шт.

9

K303875

HINGE

4шт.

10

K650626

BOLT

M6 x 14 mm

4шт.

11

1535323C1

PIN,8mm OD x 78.5mm L

large, order also 1535283C1 snap ring

4шт.

12

K653509

RING, SNAP

RING retaining, 8 mm, external

8шт.

13

K965671

CAP

plastic

8шт.

14

K303928

GROMMET

WASHER rubber

4шт.

15

K303501

SPACER,12mm ID x 18.5mm OD x 5.5mm L

WASHER rubber

12шт.

16

K303571

WASHER,6.5mm ID x 36mm OD x 3mm Thk

6 mm

6шт.

17

K651933

LOCK WASHER

WASHER lock, M6

6шт.

18

K650626

BOLT

M6 x 14 mm

2шт.

19

K303804

HANDLE

ASSEMBLY

2шт.

20

K692212

PIN

spring, 5 x 15 mm

2шт.

Выбрано товаров: 21
