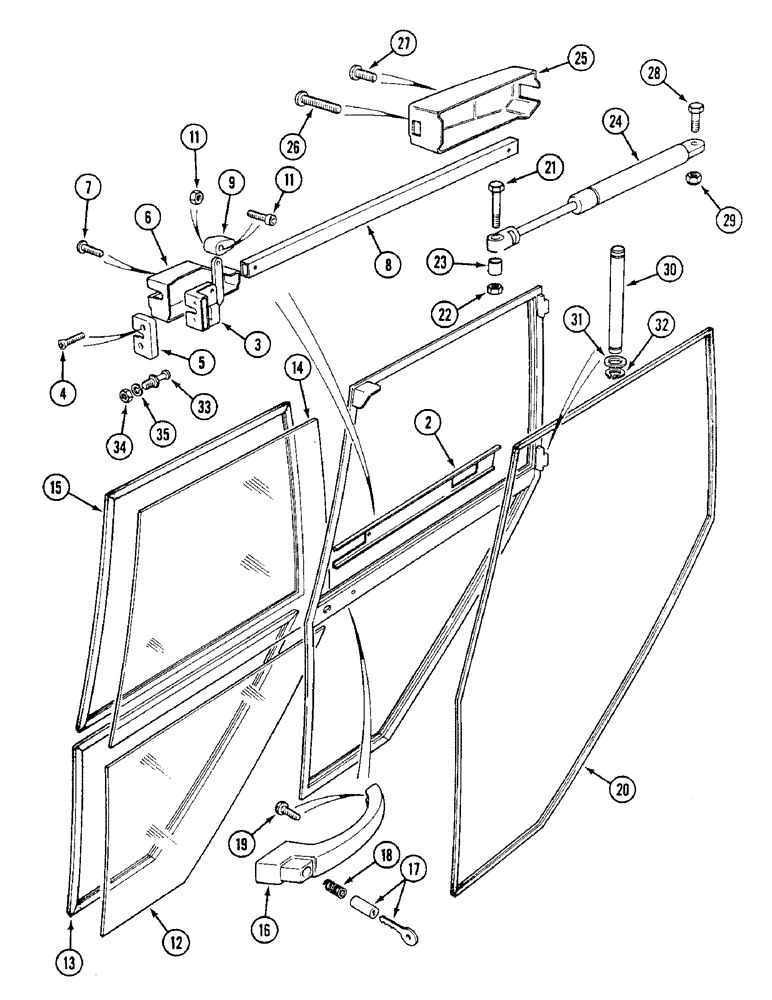

Запчасти Case IH 1494 (9-452) - CAB DOOR, LEFT HAND, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

K303282

DOOR

ASSEMBLY, left hand, Includes: Ref. 1 - 28

1шт.

1

K303283

DOOR

1шт.

2

K303874

COVER

plastic

1шт.

3

K303805

LOCK

1шт.

4

K652785

SCREW,M5 x 25mm

M5 x 25 mm

2шт.

5

K303751

GUIDE

PLATE

1шт.

6

K303506

COVER

door lock

1шт.

7

K652505

SCREW,M5 x 20mm

M5 x 20 mm

3шт.

8

K303872

DOOR

PULL

1шт.

9

112069A1

DOOR COVER

KNOB handle, inner

1шт.

10

K653626

SCREW,M6 x 20mm

M6 x 20 mm

1шт.

11

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

12

K303703

GLASS

window, lower

1шт.

13

K310088

RUBBER

FRAME rubber, lower window

1шт.

14

K303701

GLASS

window, upper

1шт.

15

K310090

RUBBER

FRAME rubber, upper window

1шт.

16

K303755

HANDLE

outer, Includes: Ref. 17 & 18

1шт.

17

K260516

LOCK

BARREL AND KEY, Includes: key

1шт.

K262066

KEY

door, number 7725, set of two

1шт.

18

K260987

SPRING

door handle

1шт.

19

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

20

K303881

DOOR SEAL

STRIP sealing, 4060 mm

1шт.

21

614-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 50 mm, 8.8

1шт.

22

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

23

K303871

BUSHING

rubber

1шт.

24

K303870

SHOCK ABSORBER

STRUT gas, 247 mm

1шт.

24

K311288

GAS STRUT

STRUT gas, 269 mm

1шт.

25

K303873

COVER

gas strut

1шт.

26

K652509

SCREW,Pan, M6 x 1 x 30mm

M6 x 30 mm

1шт.

27

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 12 mm

1шт.

28

K650814

BOLT

M6 x 30 mm

1шт.

29

K652132

NUT

self locking, M6

2шт.

30

K309727

PIN

hinge, 9 x 99 mm, Replaces: K303521

2шт.

31

K651915

WASHER

9 mm

6шт.

32

K653511

RING, SNAP

RING retaining, 8 mm, external

4шт.

33

K303810

BOLT

striker, M12

1шт.

34

K651595

NUT

M12

1шт.

35

K691835

WASHER

12 mm

2шт.
