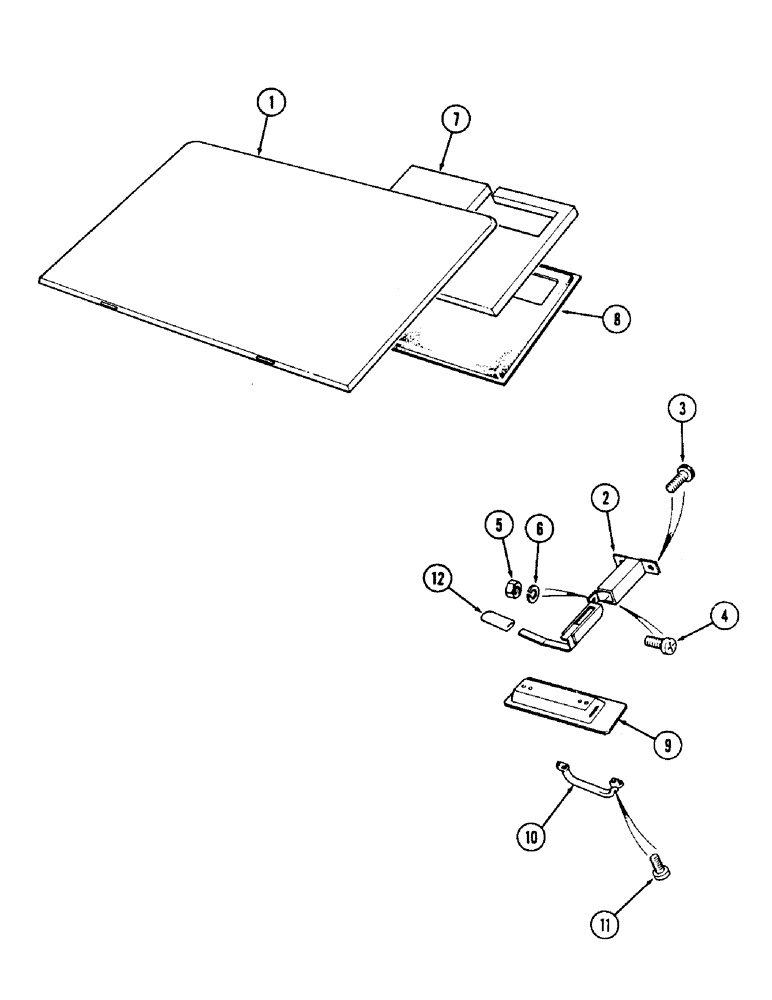

Запчасти Case IH 1494 (9-450) - ROOF HATCH, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

1

K307651

HATCH

roof, Includes: Ref. 2 - 12

1шт.

2

K303927

LOCK

hatch

1шт.

3

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

4

K652503

SCREW

M5 x 12 mm

3шт.

5

K652105

NUT

self locking, M5

1шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

7

K307550

FOAM

TRIM, inner

1шт.

8

K307551

FOAM

TRIM, outer

1шт.

9

K307653

COVER

lock

1шт.

10

K303745

HANDLE

hatch

1шт.

11

K652503

SCREW

M5 x 12 mm

2шт.

12

K303760

HANDLE

COVER lock handle

1шт.
