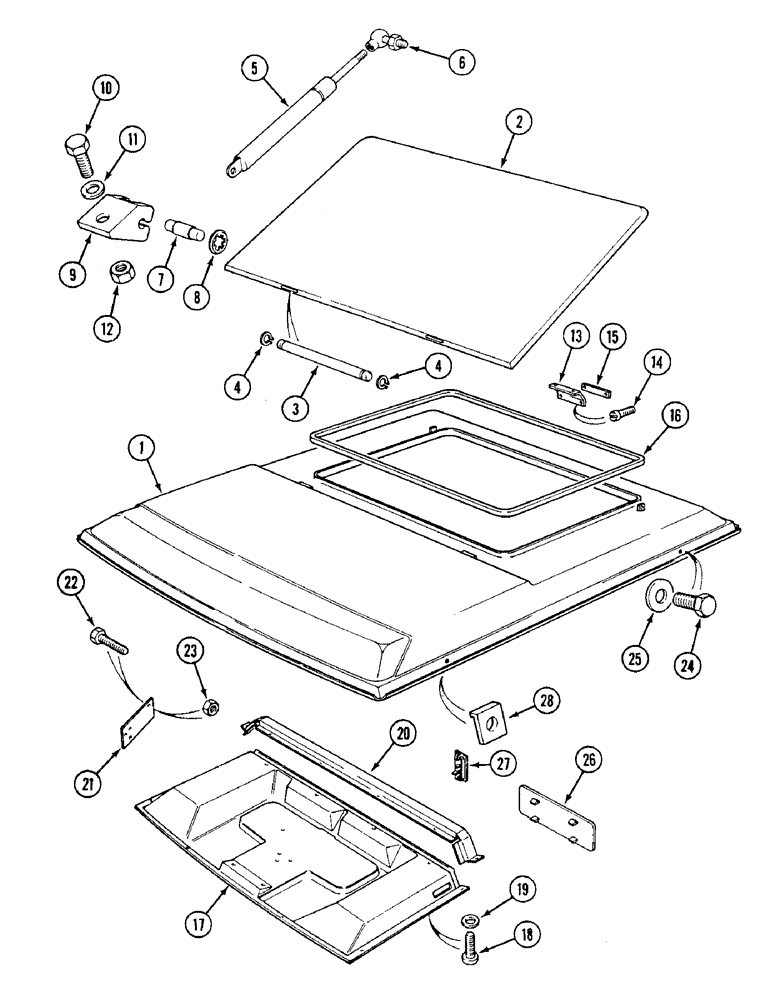

Запчасти Case IH 1494 (9-448) - CAB ROOF, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

K311942

ROOF

ASSEMBLY, complete, Includes: Ref. 1 - 16

1шт.

1

K303359

ROOF

outer

1шт.

2

REF

INSTRUCTION

HATCH roof, See Figure 9-450

1шт.

3

3123843R1

PIN

hinge

2шт.

4

K653507

RING, SNAP

RING snap, hinge pin

4шт.

5

K303741

GAS STRUT

STRUT gas, hatch

2шт.

6

K303757

BALL JOINT

gas strut

2шт.

7

K303882

PIN,6mm OD x 20mm L

anchor, gas strut

2шт.

8

K657860

RING, SNAP

RING snap, anchor pin, 6 mm

4шт.

9

K303884

BRACKET

ANCHOR gas strut

2шт.

10

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

12

K652106

LOCK NUT

self locking, M6

2шт.

13

K307037

PLATE

striker

1шт.

14

K652743

SCREW,M5 x 12mm

M5 x 12 mm

2шт.

15

K303557

BRACKET

PLATE retaining

1шт.

16

RK303878

GASKET

STRIP sealing hitch

1шт.

17

K307574

ROOF

inner

1шт.

18

K653344

SCREW

M6 x 16 mm

6шт.

19

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

20

K303566

SUPPORT

PLATE corner

1шт.

21

K303573

PLATE

stiffening

1шт.

22

K652505

SCREW,M5 x 20mm

M5 x 20 mm

1шт.

23

K651625

NUT

M5

1шт.

24

K652753

SCREW

M8 x 16 mm

4шт.

25

K303630

BUSHING

WASHER, 8 mm

4шт.

26

K306971

PLATE

cover

1шт.

27

K307606

PLUG

hole, switch

2шт.

28

K692256

BRACKET

PACKING, special

4шт.
