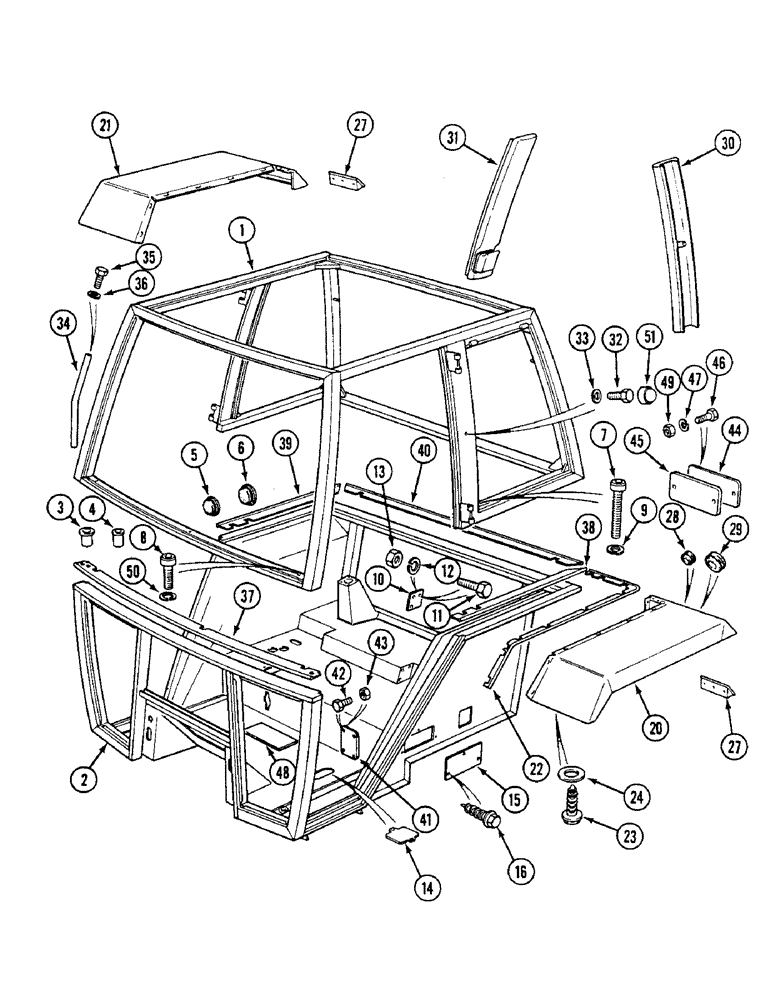

Запчасти Case IH 1494 (9-446) - CAB FRAME AND FENDERS, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

1

K303455

CAB

FRAME, upper

1шт.

2

K310972

FRAME

lower, Replaces: K303430

1шт.

3

K692205

INSERT

fender, M8

6шт.

4

K692208

INSERT

M6

8шт.

5

K656767

GROMMET

PLUG rubber, 16 mm

4шт.

6

K656768

GROMMET

18 mm

4шт.

7

K653951

SCREW

BOLT, M12 x 70 mm

2шт.

8

K653948

SCREW,M12 x 1.75 x 40mm

BOLT, M12 x 40 mm

6шт.

9

K651935

WASHER

lock, 12 mm

2шт.

10

K308012

PLATE

two wheel drive tractor

1шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, full threads, 8 - 1.25 x 20 mm

2шт.

12

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

13

825-1408

NUT,M8, Cl 8

3шт.

14

K303231

PLATE

aperture, fuel sender

1шт.

15

K307654

COVER

PLATE, Serial Range: access-mountings

2шт.

16

K650628

BOLT

M6 x 20 mm

6шт.

20

K303315

FENDER

left hand

1шт.

21

K303317

FENDER

right hand

1шт.

22

K303581

STRIP

edging, 1230 mm

2шт.

23

K650816

SCREW,M8 x 1.25 x 1.25mm, Gr 8.8

M8 x 16 mm

18шт.

24

K626916

WASHER

5/16 inch, 8 mm, special

18шт.

27

K303612

HOUSING

lamp, rear

2шт.

28

K627743

PLUG

GROMMET, 9 mm

4шт.

29

K627739

PLUG

12 mm

1шт.

30

K303213

COVER

with padding and ash-tray

1шт.

31

K303209

COVER

with padding and ash-tray

1шт.

32

K650631

BOLT

M6 x 35 mm

2шт.

33

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

34

K305140

HANDLE

grab

2шт.

35

K650817

SCREW

M8 x 25 mm

4шт.

36

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

37

REF

INSTRUCTION

STRIP edging, front, cut from K262261, 25m roll

1шт.

38

REF

INSTRUCTION

STRIP edging, left hand side, cut from K262261, 25m roll

1шт.

39

REF

INSTRUCTION

STRIP edging, right hand side, cut from K262261, 25m roll

1шт.

40

REF

INSTRUCTION

STRIP edging, rear, cut from K262261, 25m roll

1шт.

41

K206874

PLATE

power shift

1шт.

42

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

BOLT, 5/16 UNC x 3/4 inch

4шт.

43

131-39

NUT,1"-14

NUT thin hex, self locking, 1-14 inch

4шт.

44

F64902

PLATE

access, Replaces: A167834

1шт.

45

F64903

SEAL

access plate, Replaces: A167835

1шт.

46

K652465

SCREW

M5 x 20 mm

2шт.

47

K651846

WASHER, LOCK

WASHER lock, 5 mm

2шт.

48

K307442

COVER

PLATE floor

1шт.

49

825-1405

NUT,M5, Cl 8

2шт.

50

K651936

WASHER

lock, 12 mm

8шт.

51

K965671

CAP

plastic

2шт.

A181538

EMBLEM CASE/IH

DECAL, Case/IH Logo, not illustrated

1шт.
