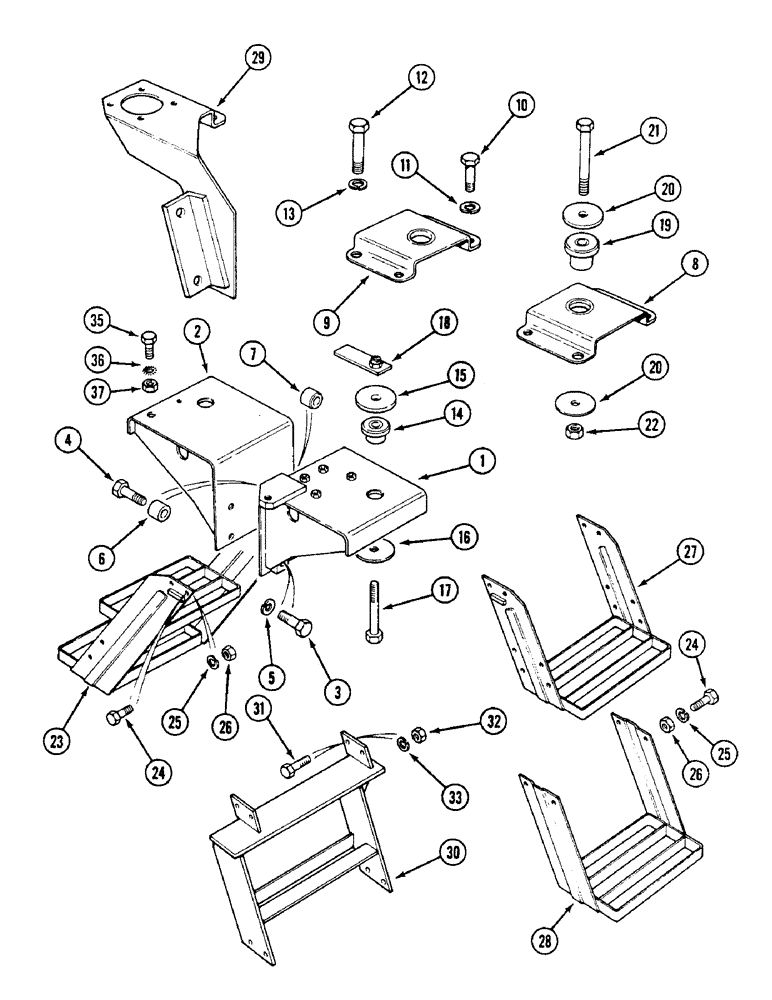

Запчасти Case IH 1494 (9-444) - CAB MOUNTINGS AND STEPS, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

1

K207470

BRACKET

mounting, left hand front

1шт.

2

K207472

BRACKET

mounting, right hand front

1шт.

3

K603307

SCREW

BOLT, 5/8 UNC x 1-5/8 inch

4шт.

4

K603278

SCREW

BOLT, 5/8 UNC x 2 inch

3шт.

4

K603280

SCREW

BOLT, 5/8 UNC x 2-1/4 inch

1шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6

K20730

SPACER spring anchor

1шт.

7

K655811

BUSHING

SPACER bracket, right hand

4шт.

8

K207474

BRACKET

mounting, left hand rear

1шт.

9

K207476

BRACKET

mounting, right hand rear

1шт.

10

K603140

SCREW

BOLT, 1/2 UNC x 1-1/8 inch

4шт.

11

K626345

LOCK WASHER

WASHER lock, 1/2 inch

4шт.

12

K603278

SCREW

BOLT, 5/8 UNC x 2 inch

4шт.

13

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

14

L46821

SHOCK ABSORBER

BUSHING rubber, front

2шт.

15

K307877

WASHER

special, upper

2шт.

16

K309879

WASHER

special, lower

2шт.

17

K600880

BOLT

1/2 UNC x 3 inch

2шт.

18

K207515

NUT

1/2 inch UNC, special

2шт.

19

A140221

MOUNTING PARTS

BUSHING rubber, rear

2шт.

20

A141470

WASHER

special

4шт.

21

K601376

BOLT

5/8 UNC x 6 inch

2шт.

22

K607306

NUT

self locking, 5/8 inch UNC

2шт.

23

K306375

STEP

operator

2шт.

24

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, full threads, 8 - 1.25 x 20 mm

8шт.

25

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

26

825-1408

NUT,M8, Cl 8

8шт.

27

K307545

STEP

operator, upper

2шт.

28

K308022

STEP

operator, lower

2шт.

29

K207539

BRACKET

mounting, left hand rear

1шт.

29

K207541

BRACKET

mounting, right henad rear

1шт.

30

K304493

STEP

EXTENSION step, left hand

1шт.

30

K304499

STOP

EXTENSION step, right hand

1шт.

31

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 25 mm

8шт.

32

825-1408

NUT,M8, Cl 8

8шт.

33

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

35

K602982

SCREW,3/8" - 16 x 3/4", Gr S

BOLT, 3/8 UNC x 3/4 inch

1шт.

36

493-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

1шт.

37

425-106

NUT,3/8"-16, Cl 5

1шт.
