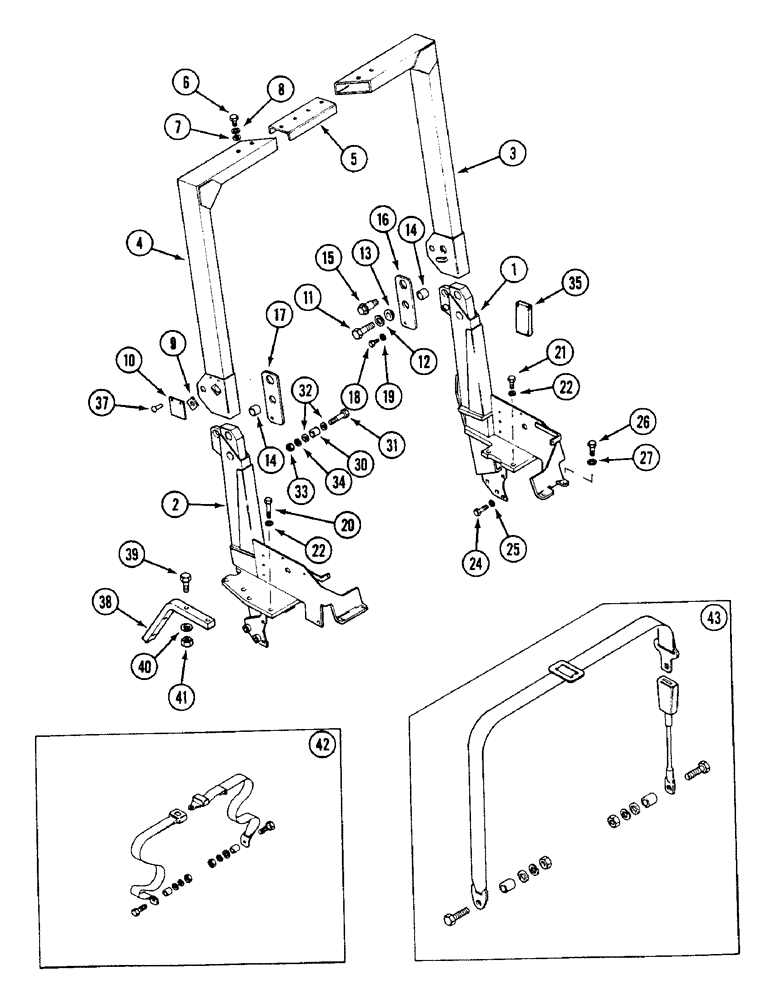

Запчасти Case IH 1494 (9-442) - TWO POST ROLL OVER PROTECTION STRUCTURE, FOLDING, NORTH AMERICA ONLY (09) - CHASSIS/ATTACHMENTS

1

K305233

FRAME

ASSEMBLY, lower left

1шт.

2

K305247

FRAME

ASSEMBLY, lower right

1шт.

3

K305255

FRAME

ASSEMBLY, upper left, Replaces: K305205

1шт.

4

K305257

FRAME

ASSEMBLY, upper right, Replaces: K305207

1шт.

5

K305175

CHANNEL

left to right, upper frames

1шт.

6

K603141

SCREW

BOLT, 1/2 inch UNC x 1-1/4 inch

4шт.

7

K626686

WASHER

flat, 1/2 inch, 13 mm, Includes: Ref. 9 & 10

4шт.

8

K626345

LOCK WASHER

WASHER lock, 1/2 inch, Includes: Ref. 9 & 10

4шт.

9

K305170

NUT

1 inch UNF, special

2шт.

10

K305209

PLATE

nut retainer

2шт.

11

413-1652

BOLT,Hex, 1" - 8 x 3-1/4", Gr 5

hex, 1 NC x 3-1/4 inch, Includes: Ref. 12

2шт.

12

492-11100

LOCK WASHER,1"

1"

2шт.

13

K305218

BUSHING

COLLAR, special

2шт.

14

K305221

BUSHING

SPACER, lower frame assembly

2шт.

15

K305178

BOLT

locking, special

2шт.

16

K305219

PLATE

stop, left hand

1шт.

17

K305220

PLATE

stop, right hand

1шт.

18

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm

2шт.

19

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

20

K603108

SCREW

BOLT axle housing, 1/2 UNC x 1-1/2 inch, order 413-824

4шт.

21

K603108

SCREW

BOLT axle housing, 1/2 UNC x 1-1/2 inch, order 413-824

4шт.

22

K626345

LOCK WASHER

WASHER lock, 1/2 inch, order 492-11050

8шт.

24

K601206

BOLT

5/8 UNC x 2-1/4 inch, order 413-1036

4шт.

25

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

26

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 25 mm

4шт.

27

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

30

K655719

BUSHING

SPACER, manual, Serial Range: box-fender

3шт.

31

K651232

BOLT

M6 x 40 mm

3шт.

32

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

33

825-13412

NUT,M12 x 1.25, Cl 8

cable, M12

3шт.

34

K65184

WASHER lock, M6

3шт.

35

K311297

SPACER

rubber, Serial Range: frame-fender

2шт.

37

K11597

SCREW, special

4шт.

38

K308224

BRACKET

support, fender

2шт.

39

K601356

BOLT

5/8 UNC x 2 inch

4шт.

40

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

41

425-1010

NUT,5/8"-11, G5

4шт.

42

REF

INSTRUCTION

BELT seat, safety, 2 inch wide, See Figure 9-418

1шт.

43

REF

INSTRUCTION

BELT seat, safety, 2 inch wide, See Figure 9-418

1шт.

A185862

ROOF

CANOPY ASSEMBLY, not illustrated, Includes: canopy and brackets

1шт.

A187055

ROOF

CANOPY top, ROPS

1шт.

A187056

BRACKET

right hand

1шт.

A187057

BRACKET

left hand

1шт.
