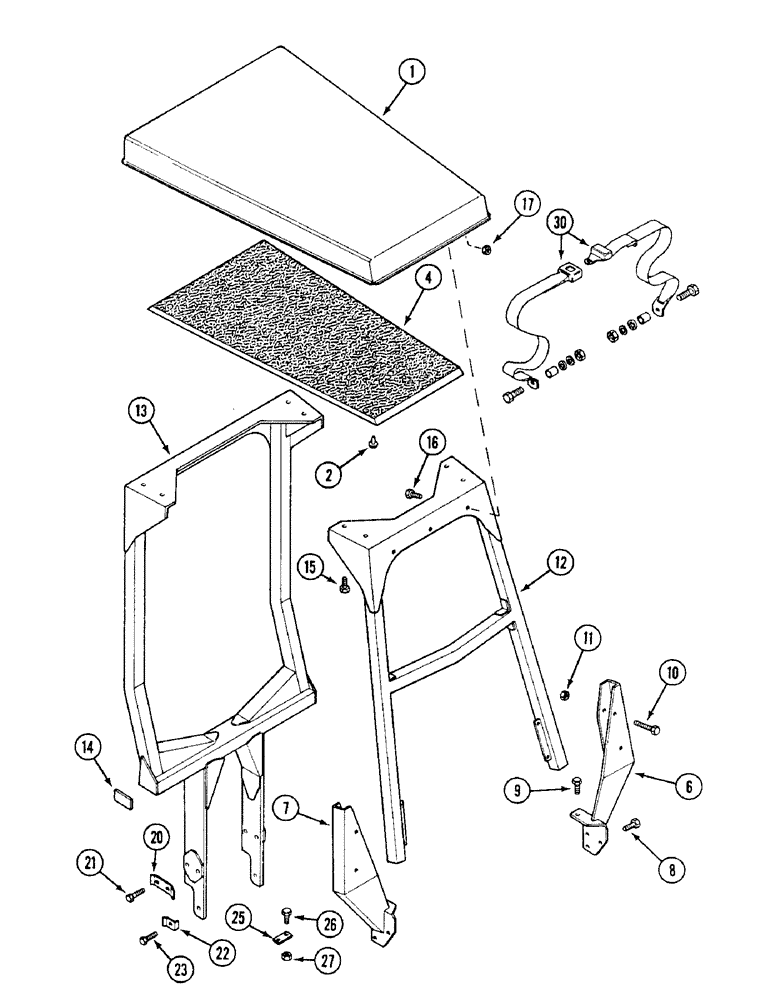

Запчасти Case IH 1494 (9-440) - FOUR POST ROLL OVER PROTECTION STRUCTURE, LOW PROFILE, NORTH AMERICA ONLY (09) - CHASSIS/ATTACHMENTS

A176147

ROPS ASSEMBLY four post, Includes: Ref. 1 - 4

1шт.

1

A177163

ROOF

CANOPY ASSEMBLY roll over, Includes: Ref. 2 - 4

1шт.

2

A177152

CAP

insulation, order R37161

8шт.

A169246

DECAL

caution, seat belt, not shown

1шт.

4

A177164

FOAM

acoustic

1шт.

6

A177160

SUPPORT

BRACKET mounting, left hand

1шт.

7

A177161

SUPPORT

BRACKET mounting, right hand

1шт.

8

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch, grade 5

6шт.

9

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex, 1/2 NC x 2-1/2 inch

2шт.

10

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

hex, 1/2 NC x 3-1/2 inch

4шт.

11

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT hex., lock, 1/2 inch NC

4шт.

12

A177162

CHASSIS

FRAME ASSEMBLY roll over, front, Includes: Ref. 14

1шт.

13

A177165

FRAME

ASSEMBLY roll over, rear, Includes: Ref. 14

1шт.

14

A177155

PAD, RUBBER

PAD bumper, rubber

2шт.

15

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

16

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

17

131-822

NUT,3/8"-16

NUT hex. lock, 3/8 inch NC

6шт.

20

A177166

BRACKET

retaining, upper

1шт.

21

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

hex, 5/8 NC x 2-3/4 inch

4шт.

22

A177167

SUPPORT

BRACKET retaining, lower

1шт.

23

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

25

A177168

SUPPORT

BRACKET extension, fuel filter

1шт.

26

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

hex, 1/4 NC x 1 inch

1шт.

27

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

1шт.

30

REF

INSTRUCTION

BELT seat, 2 inch wide, See Figure 9-418

1шт.

A177153

DECAL

BELT seat, caution, not illustrated

1шт.
