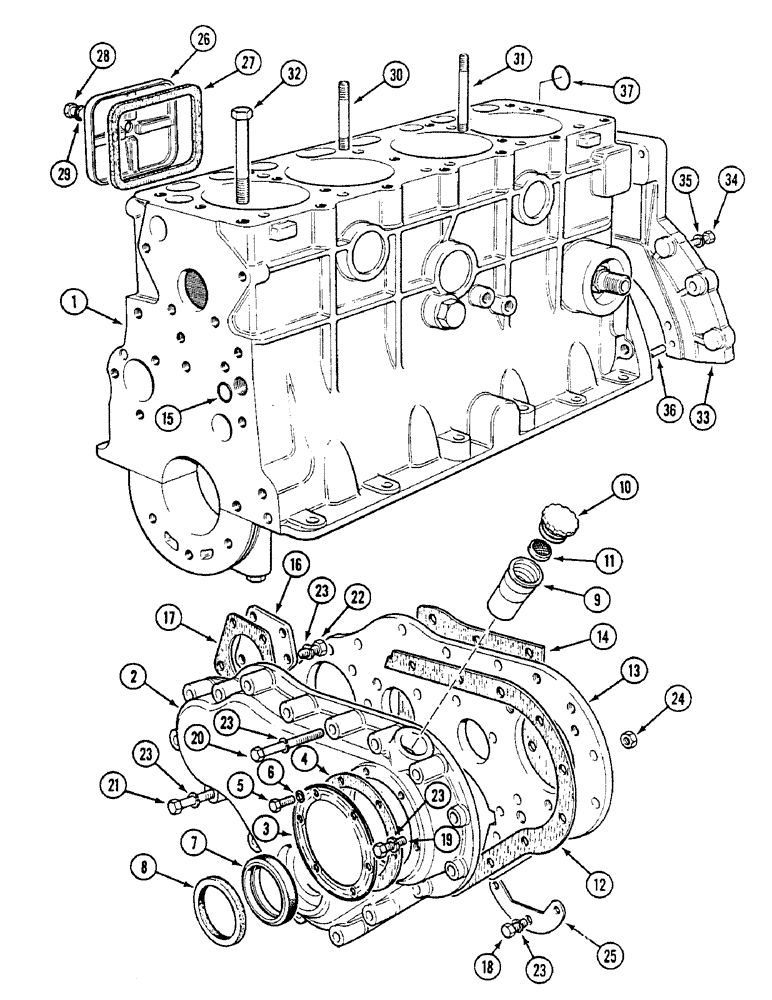

Запчасти Case IH 1494 (2-024) - CYLINDER BLOCK COVERS (02) - ENGINE

1

K965169

BLOCK ASSY.

CYLINDER BLOCK, with bearing caps, See Figure 2-022

1шт.

2

K944347

COVER

timing gear

1шт.

3

K302622

COVER

PLATE inspection

1шт.

4

1349385C1

GASKET

plate

1шт.

5

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

6шт.

6

K19481

SPRING WASHER

WASHER lock, 5/16 inch

6шт.

7

K628127

OIL SEAL,52.2mm ID x 73.45mm OD x 9.5mm Thk

oil, 2-1/8 x 2-7/8 x 3/8 inch, 54 x 73 x 10 mm

1шт.

8

K623454

FELT SEAL,54.77mm ID x 73.82mm OD x 3.17mm Thk

felt, 2-1/4 x 2-7/8 x 1/8 inch, 57 x 73 x 3 mm

1шт.

NSS

NOT SOLD SEPARAT

FILLER CAP, with cap, Includes: Ref. 9 & 10

1шт.

9

K950287

NECK FILLER

TUBE filler cap

1шт.

10

K948427

CAP

filler

1шт.

11

K921678

FILTER

SCREEN filter

1шт.

12

K920794

GASKET

cover to carrier plate

1шт.

13

K920867

CARRIER

PLATE carrier

1шт.

14

K206869

GASKET

, Serial Range: plate-block

1шт.

15

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

16

K940120

PLATE

cover, steering pump

1шт.

17

K919729

GASKET,0.76mm Thk

plate to carrier plate

1шт.

18

K602883

SCREW,5/16" - 18 x 3/4", Gr V

BOLT, 5/16 UNC x 3/4 inch

4шт.

19

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

9шт.

19

K602806

BOLT

5/16 UNC x 1-1/8 inch

2шт.

20

K600210

BOLT

5/16 UNC x 2-1/8 inch

1шт.

21

K600205

BOLT

5/16 UNC x 1-1/2 inch

5шт.

22

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

1шт.

23

K19481

SPRING WASHER

WASHER lock, 5/16 inch

21шт.

24

9635082

NUT,5/16" - 18, Gr 5

5/16 inch UNC

3шт.

25

K902036

GASKET

PLATE baffle

1шт.

26

K10029

COVER

tappets

2шт.

27

K10030

GASKET

tappet cover

2шт.

28

K600408

BOLT,3/8" x 2"

3/8 UNC x 2 inch

2шт.

29

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

sealing

2шт.

30

K906538

STUD

UNC/UNF x 4-7/8 inch, 1/2 UNC/UNF x 4-7/8 inch

10шт.

31

K608505

STUD,1/2" x 7/16"

STUD, 1/2 UNC/UNF x 5-5/16 inch

2шт.

32

326-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 8

hex, 1/2 NC x 4-1/4 inch, grade 8

7шт.

33

K203093

PLATE

support, starter

1шт.

34

K602906

SCREW

BOLT, 3/8 UNC x 1-1/4 inch -, 3/8 UNC x 1-1/4 inch

6шт.

35

492-11038

LOCK WASHER,3/8"

6шт.

36

K12258

PIN

DOWEL, 5/16 x 3/4 inch

2шт.

37

K262762

O-RING

1-13/16 inch ID, camshaft rear bearing

1шт.

K260282

GASKET

GASKET SET cylinder block

1шт.
