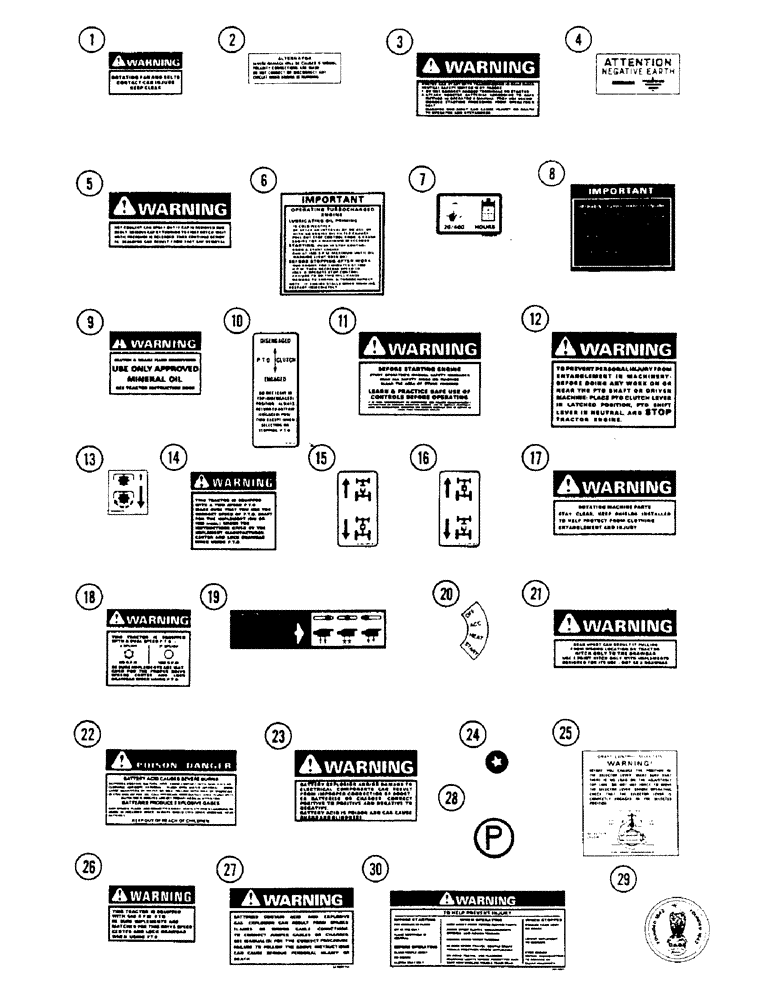

Запчасти Case IH 1494 (9-428) - DECALS (09) - CHASSIS/ATTACHMENTS

1

321-3596

DECAL

warning, rotating fan and belts

2шт.

2

K947548

DECAL

alternator

1шт.

3

321-7040

DANGER DECAL

DECAL, DANGER, Starting in gear can cause death

1шт.

4

K917425

PRODUCT GRAPHIC

DECAL, negative earth

1шт.

5

321-6672

DECAL

warning, check and service cooling system

1шт.

6

K204599

DECAL

turbocharger operation

1шт.

7

K307366

DECAL

pressure line filter

1шт.

8

K953574

DECAL

engine operation

1шт.

9

K203756

DECAL

brake and clutch fluid

1шт.

10

321-6370

DECAL

instruction, PTO clutch

1шт.

11

321-3705

DECAL

warning, safety

1шт.

12

321-6368

DECAL

warning, PTO clutch lever

1шт.

13

K948343

DECAL

selector lever, single speed PTO

1шт.

14

K203386

DECAL

warning, multi speed PTO

1шт.

15

K302305

DECAL

MFD control, power shift without cab, Synchromesh with cab

1шт.

16

K302304

DECAL

MFD control, Synchromesh without cab, power shift with cab

1шт.

17

321-6715

DECAL

warning, rotating machinery

1шт.

18

321-3901

DECAL

dual speed PTO

1шт.

19

K952540

DECAL

remote valves

1шт.

20

K953665

DECAL

ignition switch

1шт.

21

321-3845

DECAL

warning, hitch

1шт.

22

K952727

PRODUCT GRAPHIC

DECAL, battery warning

1шт.

23

321-6714

DECAL

warning, batteries contain acid and explosive gas

1шт.

24

K207298

DECAL

power shift selector lever

1шт.

25

K940361

PRODUCT GRAPHIC

DECAL, warning, selective sensing control

1шт.

26

K308622

DECAL

PTO operation, 540 RPM

1шт.

27

321-6714

DECAL

warning, batteries contain acid and explosive gas

1шт.

28

K308623

DECAL

parking brake

1шт.

29

A180055

CAP ASSY.

INSERT, Case Globe and Eagle

1шт.

30

321-6641

DECAL

operator warning

1шт.

A49842

DECAL

warning ROPS, not illustrated

1шт.
