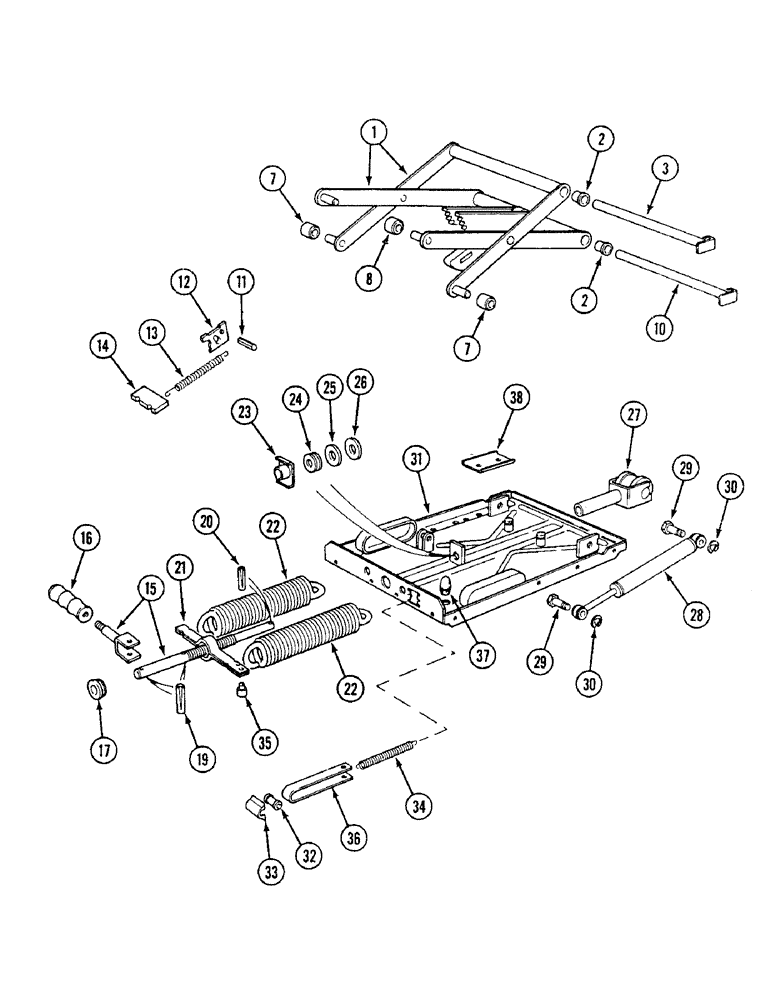

Запчасти Case IH 1494 (9-426) - SEAT SUSPENSION MECHANISM, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

K306762

FRAME

SUSPENSION ASSEMBLY seat, Includes: Ref. 1 - 20

1шт.

1

K262108

FRAME

SUPPORT ASSEMBLY, Includes: Ref. 2 - 14

1шт.

2

K262109

BUSHING

nylon, spindle

4шт.

3

K262111

LARGE PIN

SPINDLE, upper

1шт.

7

3225310R1

ROLLER

nylon, lower

2шт.

8

3225310R1

ROLLER

nylon, upper

2шт.

10

K262110

SHAFT

SPINDLE, lower

1шт.

11

3225320R1

PIN

cam, plate

1шт.

12

3225303R1

RATCHET

PLATE cam

2шт.

13

3225307R1

SPRING

cam, plate

2шт.

14

3225306R1

RETAINER

cam, plate

1шт.

15

1281953C91

PIN ASSY.

ADJUSTER - SEAT tension, Includes: Ref. 16 - 20

1шт.

16

K261699

HANDLE

KNOB tension adjuster

1шт.

17

K262120

BUSHING

tension adjuster

1шт.

19

1281960C1

PIN

4 x 20 mm

1шт.

20

30788R1

LOCK PIN,M3 x 16, Slotted

PIN, 3 x 16 mm

1шт.

21

3225296R1

HOLDER

CARRIER tension spring

1шт.

22

3225330R1

SPRING

seat tension

2шт.

23

3225317R1

NUT,Weld, M12

captive, M12

1шт.

24

3225318R1

BEARING, BALL

BEARING thrust

1шт.

25

3225319R1

WASHER

14 mm

1шт.

26

3225298R1

RUBBER WASHER

14 mm

1шт.

27

1281949C1

YOKE

FORK AND BEARING suspension

1шт.

28

K262107

DAMPER

hydraulic

1шт.

29

K965791

PIN

clevis, damper

2шт.

30

K621592

RING, SNAP

RING snap, 7/32 inch

2шт.

31

K262121

PLATE

base

1шт.

32

K964653

ROLLER

tension indicator, nylon

1шт.

33

K964638

COVER

tension indicator, plastic

1шт.

34

3225382R1

BUSHING

SPRING tension indicator

1шт.

35

3225315R1

BUTTON

ANCHOR indicator cord

1шт.

36

K262118

DECAL

TAPE tension indicator

1шт.

37

3134835R1

BUMPER

seat

2шт.

38

K262122

PLATE

bearing, fork

1шт.
