(9-424) - SEAT RUNNERS AND BASE, TRACTORS WITH CAB

Запчасти Case IH 1494 (9-424) - SEAT RUNNERS AND BASE, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

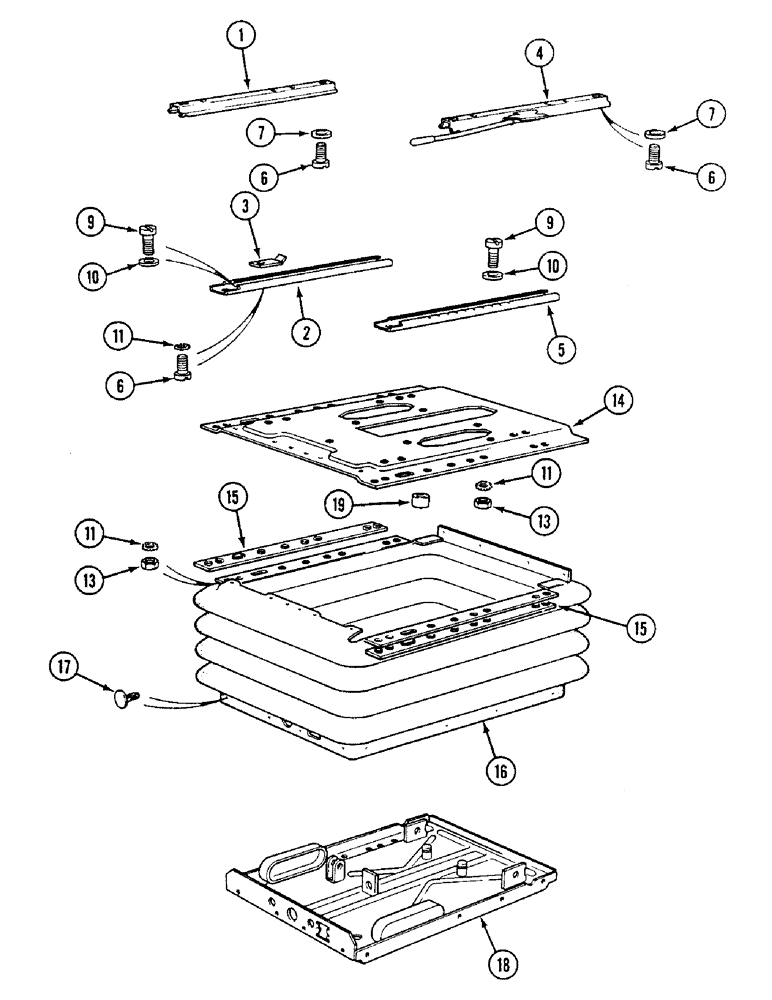

Схема запчастей Case IH 1494 - (9-424) - SEAT RUNNERS AND BASE, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS
1
4
11
11
19
18
15
15
14
7
13
2
7
3
6
6
9
9
16
5
6
11
10
17
10
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

K306762

FRAME

SUSPENSION ASSEMBLY seat, See Figure 9-426, Includes: Ref. 1 - 7

1шт.

1

K261690

SEAT

RUNNER, left hand, upper

1шт.

2

K261691

RAIL

RUNNER left hand, lower

1шт.

3

K261694

STOP

BRACKET stop

1шт.

4

K261692

RAIL

RUNNER, left hand, upper

1шт.

5

K261693

RAIL

RUNNER, left-hand, lower

1шт.

6

934895R1

SCREW,Slotted Cheese, M8 x 16mm, Cl 8.8

BOLT, M8 x 16 mm

5шт.

7

3402560R1

WASHER,M8.4

SPACER seat runner

4шт.

9

K262104

SCREW

BOLT, M8 x 20 mm

5шт.

10

3402565R1

WASHER

2шт.

11

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

WASHER - flat

6шт.

13

K262106

NUT

M8

5шт.

14

K262115

PLATE

top

1шт.

15

K262114

STRIP

clamping

2шт.

16

K262113

COVER

suspension

1шт.

17

K964645

RIVET

plastic

21шт.

18

K262121

PLATE

base

1шт.

19

K262116

DAMPER

STOP rubber, top plate

2шт.
