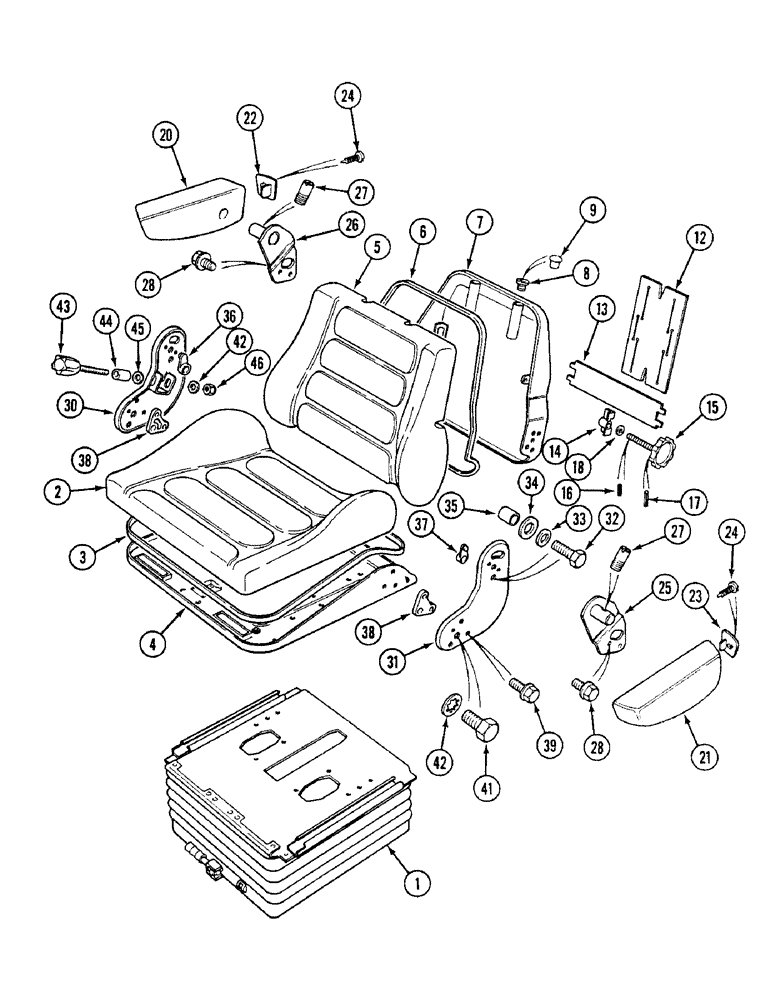

Запчасти Case IH 1494 (9-422) - SEAT ASSEMBLY, K307643, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

K307643

SEAT

ASSEMBLY operator, Includes: Ref. 1 - 46

1шт.

1

K306762

FRAME

SUSPENSION ASSEMBLY seat, See Figures 9-424 and 9-426, Includes: Ref. 2 - 46

1шт.

REF

INSTRUCTION

SEAT ASSEMBLY tractor, Includes: Ref. 2 - 46

1шт.

2

K262102

CUSHION

seat, cloth covered

1шт.

3

K262101

BEAD

ING cushion

1шт.

4

K262100

PAN

FRAME cushion

1шт.

5

K262103

CUSHION

BACKREST cloth covered

1шт.

6

K262099

STRIP

BEADING backrest

1шт.

7

B502912

FRAME

backrest

1шт.

8

3230246R1

BUSHING

headrest

2шт.

9

K260630

PLUG

plastic

2шт.

12

K261682

PLATE

lumbar spring

1шт.

13

3234506R1

PLATE

SPRING lumbar adjustment

1шт.

14

3234512R1

ANGLE

BRACKET adjusting screw

1шт.

15

K261685

KNOB

ASSEMBLY lumbar adjustment

1шт.

16

30787R1

LOCK PIN,M3 x 12, Slotted

PIN, 3 x 12 mm

1шт.

17

K261684

PIN,2.9mm OD x 20mm L

3 x 20 mm

1шт.

18

K626686

WASHER

flat, 1/2 inch, 13 mm

1шт.

20

B502596

ARMREST

right hand

1шт.

21

B502604

ARMREST

left hand

1шт.

22

3402912R1

PLATE

retaining, right hand

1шт.

23

3402911R1

PLATE

retaining, left hand

1шт.

24

K261661

SCREW

M8 x 16 mm

2шт.

25

K262094

BRACKET

PLATE support, left hand armrest

1шт.

26

K262095

BRACKET

PLATE support, right hand armrest

1шт.

27

3402563R1

SCREW,Headless, M10 x 25, 8.8, Slotted

PIN, 10 x 25 mm

1шт.

28

60-3250T1

PLATE ASSY.

PLATE mounting, seat pan

4шт.

30

K262096

BRACKET

backrest support, right hand

1шт.

31

K262097

BRACKET

backrest support, left hand

1шт.

32

3402571R1

BOLT

M8 x 30 mm

4шт.

33

3402565R1

WASHER

8 mm

4шт.

34

K261673

WASHER

8 mm

4шт.

35

K261674

TUBE

SPACER armrest

4шт.

36

K261675

BUSHING

SPACER, right hand

1шт.

37

K261676

BUSHING

SPACER, left hand

1шт.

38

K261670

PLATE

seat frame

2шт.

39

3230247R1

SCREW

BOLT, M x 20 mm

4шт.

41

60-1665T1

CAPSCREW,Pan, #10 - 32 x .375"

BOLT hex, 7/16 UNF x 1 inch

2шт.

42

K261668

WASHER

8 mm

6шт.

43

K261663

ADJUSTER

KNOB ASSEMBLY backrest adjustment

1шт.

44

K261664

BUSHING

SPACER knob assembly

1шт.

45

3402570R1

WASHER

2шт.

46

K261679

WASHER

NUT, M10

1шт.
