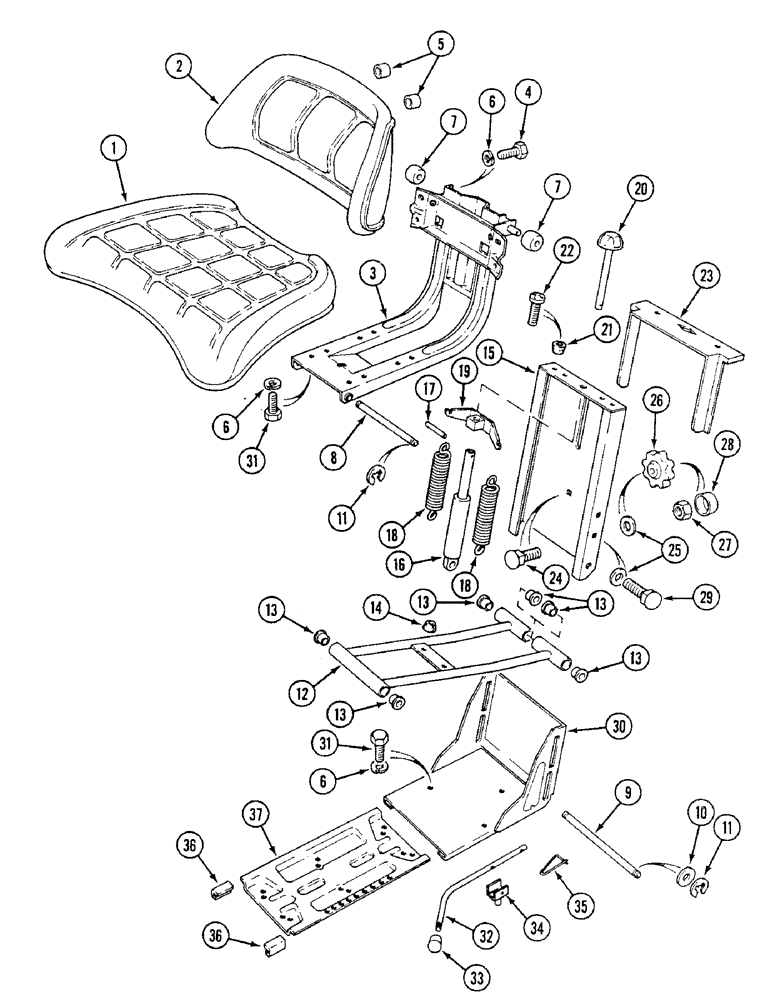

Запчасти Case IH 1494 (9-420) - SEAT ASSEMBLY, K307863, TRACTORS WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

K307863

SEAT

ASSEMBLY operator, Includes: Ref. 1 - 37

1шт.

1

K262086

CUSHION

seat

1шт.

2

K262081

CUSHION

BACKREST

1шт.

3

K262087

BRACKET

support

1шт.

4

934679R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 4.6

hex, 8 x 20 mm

4шт.

5

3223473R1

SPACER

backrest

4шт.

6

K11517

WASHER

lock, 8 mm

10шт.

7

K260659

ROLLER

nylon

2шт.

8

3229883R1

PIN

ROD carrier pivot

1шт.

9

3229897R1

PIN

ROD frame pivot

1шт.

10

K262090

WASHER

12 mm

4шт.

11

K621587

RING, SNAP

RING retaining, 3/8 inch, 10 mm, external

4шт.

12

K262084

BEAM

LINK suspension

1шт.

13

3134834R1

BUSHING

frame

6шт.

14

3223486R1

BUMPER

BUFFER rubber

2шт.

15

K262083

FRAME

backrest

1шт.

16

1335003C1

CYLINDER

DAMPER suspension

1шт.

17

827364C1

RIVET,Flat Hd, M4 x 25

shock absorber

1шт.

18

K262076

SPRING

suspension

2шт.

19

1334996C1

BRACKET

ANCHOR spring

1шт.

20

K262074

KNOB

AND SPINDLE adjuster

1шт.

21

1335004C1

BUMPER

BUFFER rubber

2шт.

22

3404081R1

SELF-TAP SCREW,Slotted Pan Hd, M4.8 x 22

SCREW buffer

2шт.

23

824308C1

COVER

ajuster

1шт.

24

1334995C1

SCREW,M10 x 35mm

BOLT, M10 x 35 mm

1шт.

25

K262089

WASHER

10 mm

6шт.

26

3229898R1

BUTTON

NUT hand, M10

1шт.

27

3217417R1

NUT

M10

2шт.

28

60-1656T1

COVER

protective

1шт.

29

K963470

BOLT

M10, special

2шт.

30

K262082

FRAME

base

1шт.

31

K262079

SCREW

BOLT, M8 x 16 mm

6шт.

32

K262080

LEVER

adjusting, Includes: Ref. 33 - 35

1шт.

33

3229902R1

KNOB

lever

1шт.

34

K262153

FORK

adjusting lever

1шт.

35

K262073

SPRING

adjusting lever

1шт.

36

3229900R1

SLIDE

CHANNEL seat slide

4шт.

37

3229893R1

PLATE

BASE seat

1шт.
