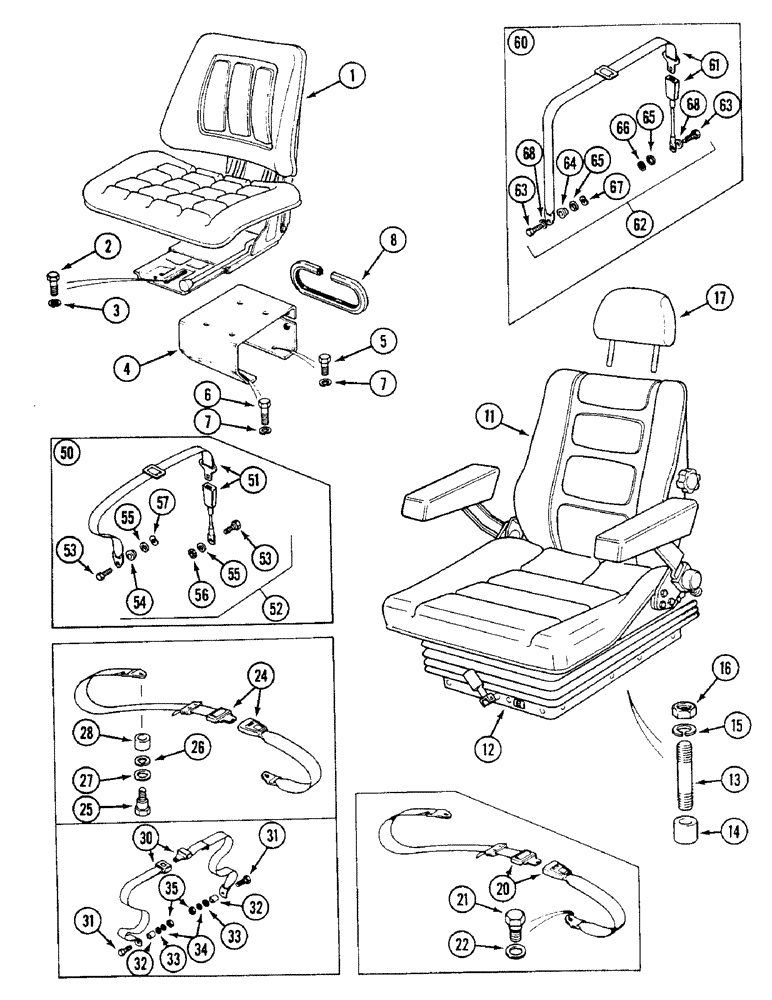

Запчасти Case IH 1494 (9-418) - SEAT AND SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

K307863

SEAT

ASSEMBLY operator, without cab, See Figure 9-420

1шт.

2

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

3

892-11010

LOCK WASHER,M10

4шт.

4

K306309

BRACKET

support, seat, without cab

1шт.

5

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

6

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

8

K628223

STRIP

edging, seat bracket

1шт.

K307643

SEAT

ASSEMBLY operator, with cab, See Figure 9-422, Includes: Ref. 11 & 12

1шт.

11

REF

INSTRUCTION

SEAT operator

1шт.

12

K306762

FRAME

SUSPENSION ASSEMBLY seat, See Figure 9-424

1шт.

13

K655110

STUD

M8 x 50 mm

4шт.

14

K304093

BUSHING

SPACER seat mounting

4шт.

15

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

16

825-1408

NUT,M8, Cl 8

4шт.

17

K306755

SEAT HEADREST

EXTENSION backrest, cab seat

1шт.

UK1596

BELT

ATTACHMENT seat belt, without cab, order components, Includes: Ref. 20 - 22

1шт.

20

A160404

SAFETY BELT

BELT seat, safety

1шт.

21

K945348

BOLT

7/16 inch UNF

2шт.

22

K945349

WASHER

special

2шт.

UK6643

BELT

ATTACHMENT seat belt, with cab, order components, Includes: Ref. 24 - 32

1шт.

24

A160404

SAFETY BELT

BELT seat, safety

1шт.

25

K613005

SCREW

BOLT, 7/16 UNF x 1-1/4 inch

2шт.

26

K626314

WASHER

7/16 inch

2шт.

27

K626480

WASHER

lock, 1/2 inch

2шт.

28

K309647

BUSHING

SPACER seat

2шт.

30

A160404

SAFETY BELT

BELT seat, safety

1шт.

31

A61946

STEP BOLT

BOLT seat belt, shoulder

2шт.

32

A60907

BUSHING

SPACER anchor bolt

2шт.

33

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

2шт.

34

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

35

425-117

NUT,7/16"-20, G5

hex, 7/16 inch NF

2шт.

50

L311834

SEAT BELT PACK, for K307863 seat, with ROPS and without cab, Includes: Ref. 51 - 57

1шт.

51

K311330

BELT

seat safety, 2 inch wide, Includes: Ref. 52 - 57

1шт.

52

K262227

KIT

FITTING KIT, Includes: Ref. 53 - 57

1шт.

53

K311831

SCREW

2шт.

54

K311832

BUSH belt anchor

1шт.

55

K311833

WASHER plain

2шт.

56

K311829

WASHER star

1шт.

57

K311826

WASHER wavy

1шт.

60

K311836

SEAT BELT PACK, for K307643 seat assembly, with cab, Includes: Ref. 61 - 68

1шт.

61

K311332

SAFETY BELT

SAFETY BELT, Includes Ref. 62 - 68

1шт.

62

K262229

KIT

FITTING KIT, Includes: Ref. 63 - 68

1шт.

63

K311830

SCREW

2шт.

64

K311825

BUSH belt anchor

1шт.

65

K311827

WASHER plain

1шт.

66

K311829

WASHER star

2шт.

67

K311826

WASHER wavy

1шт.

68

K311828

WASHER

2шт.
