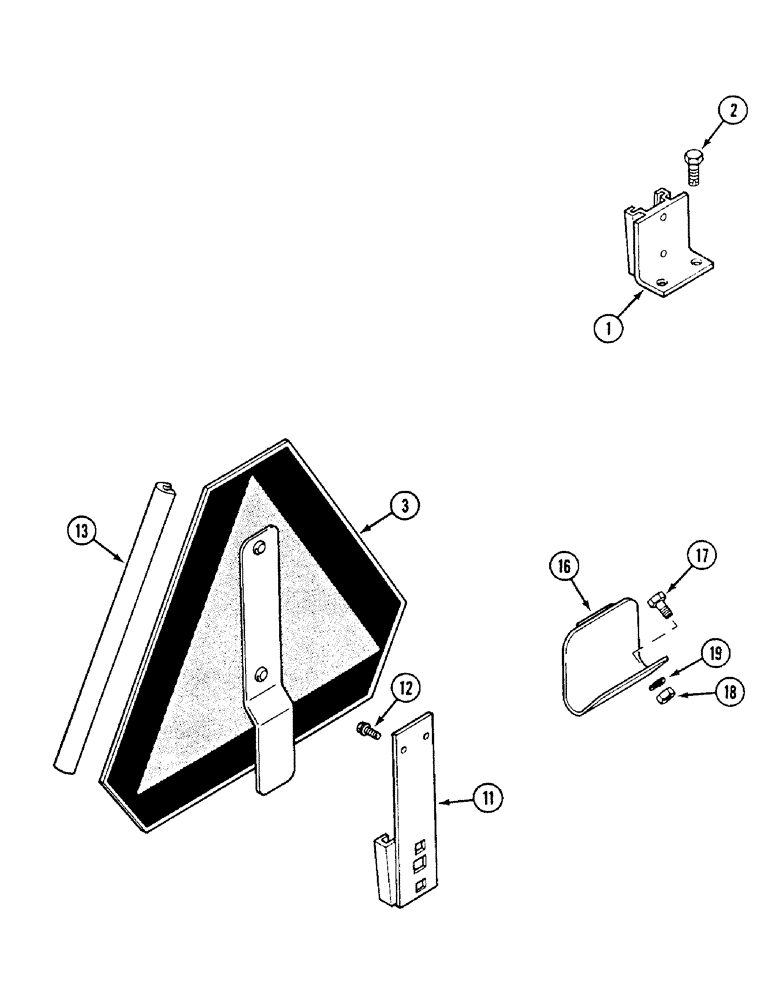

Запчасти Case IH 1494 (9-416) - SMV EMBLEM, NORTH AMERICA ONLY (09) - CHASSIS/ATTACHMENTS

1

A66814

BRACKET

S.M.V. emblem, without cab

1шт.

2

280-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"

SCREW self tapping, 5/16 x 1/2 inch

2шт.

3

A59450

WARNING SIGN

EMBLEM, S.M.V.

1шт.

11

K302725

BRACKET

mounting, S.M.V., low profile special

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, full threads, 8 - 1.25 x 20 mm

2шт.

13

A165860

TRIM

emblem, 27.4 inch

1шт.

16

K307537

BRACKET

S.M.V. emblem, with cab

1шт.

17

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

18

825-13412

NUT,M12 x 1.25, Cl 8

cable, M12

2шт.

19

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

20

K307974

PLATE

SMV emblem

1шт.
