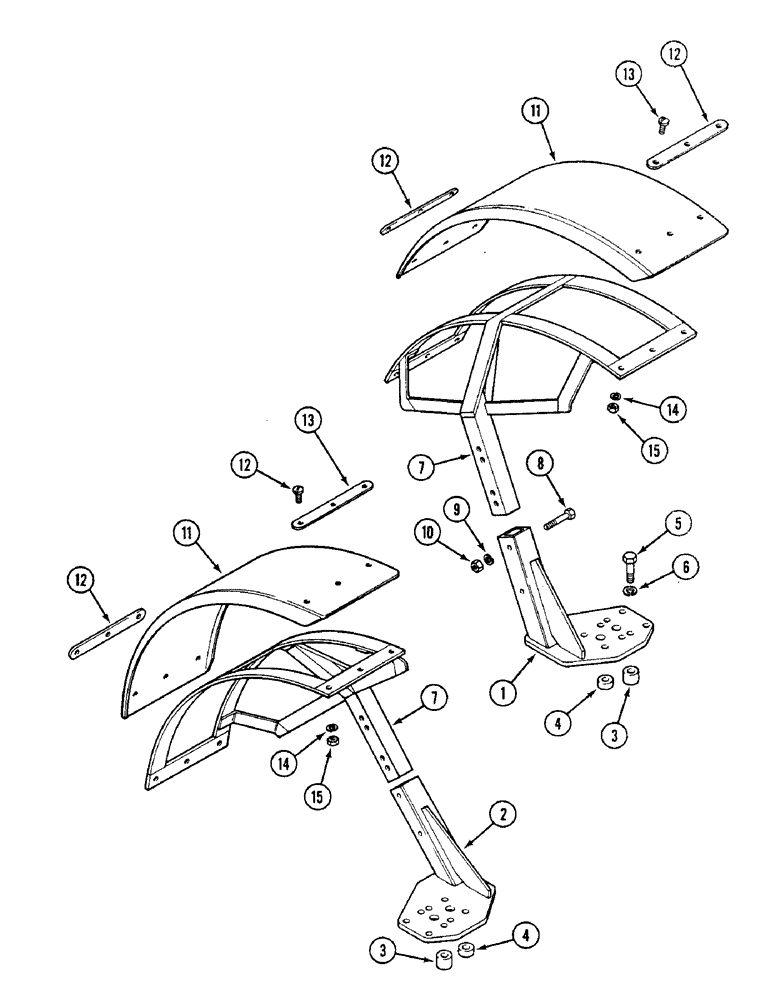

Запчасти Case IH 1494 (9-414) - FENDER, FRONT, MFD TRACTORS ONLY, P.I.N. 11518001 AND AFTER (09) - CHASSIS/ATTACHMENTS

U6807

FENDERS ATTACHMENT, front, order components, Includes: Ref. 1 - 15

1шт.

1

K311667

BRACKET

support, left, Serial Range: hand,-axle

1шт.

2

K311672

BRACKET

support, right, Serial Range: hand,-axle

1шт.

3

K208421

SPACER

outer

4шт.

4

K208422

SPACER

inner

4шт.

5

814-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 8.8

hex, 12 - 1.75 x 55 mm

8шт.

6

K651850

SPRING

WASHER lock, 12 mm

8шт.

7

K311658

BRACKET

support, fender

2шт.

8

814-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 8.8

hex, 10 - 1.5 x 65 mm

4шт.

9

892-11010

LOCK WASHER,M10

4шт.

10

825-1410

NUT,M10, Cl 8

4шт.

11

K208465

FENDER

2шт.

12

K208464

STRIP

reinforcing

4шт.

13

K652488

SCREW

BOLT, M8 x 25 mm, special

12шт.

14

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

12шт.

15

825-1408

NUT,M8, Cl 8

12шт.
