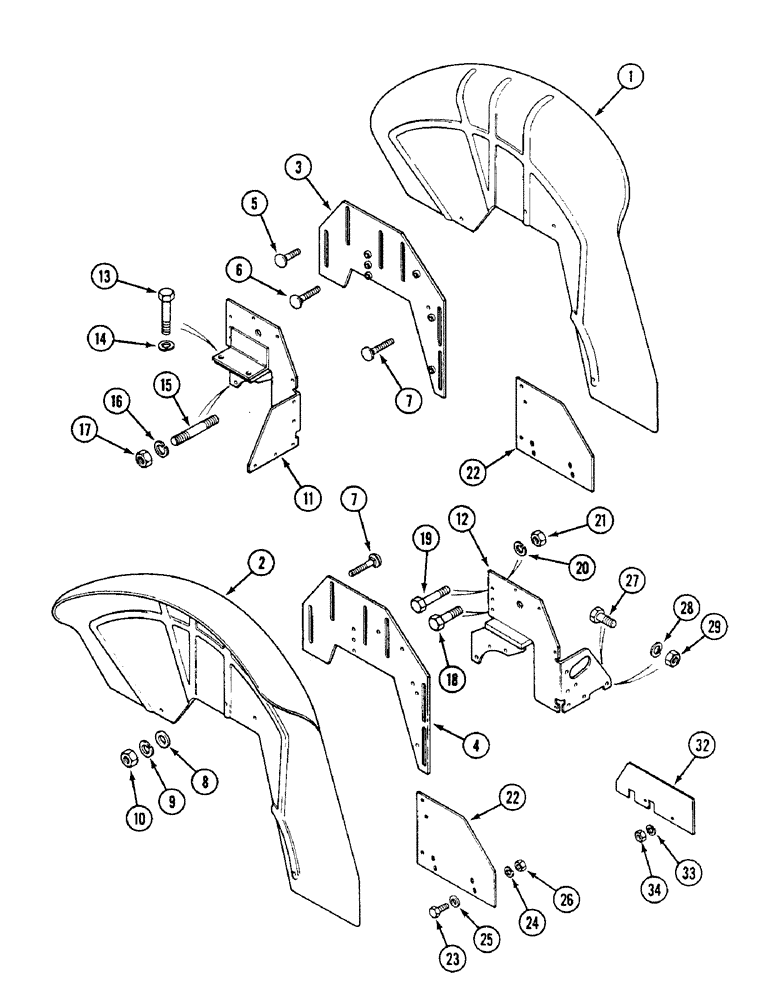

Запчасти Case IH 1494 (9-412) - REAR FENDERS AND MOUNTINGS, LOW PROFILE SPECIAL (09) - CHASSIS/ATTACHMENTS

1

K207985

FENDER

rear, left hand, Replaces: K206231

1шт.

2

K207986

FENDER

rear, right hand, Replaces: K206232

1шт.

3

K308652

PLATE

ADAPTOR fender, left hand, Replaces: K308496

1шт.

4

K308651

PLATE

ADAPTOR fender, right hand, Replaces K308497

1шт.

5

K658946

BOLT

round head square neck, M10 x 40 mm

6шт.

6

K658947

BOLT

round head square neck, M10 x 50 mm

2шт.

7

K658948

BOLT

round head square neck, M10 x 60 mm

2шт.

8

K651779

WASHER

10 mm

10шт.

9

892-11010

LOCK WASHER,M10

10шт.

10

825-1410

NUT,M10, Cl 8

10шт.

11

A177284

FENDER

SUPPORT fender, left-hand, Replaces: K306457

1шт.

12

A177285

FENDER

SUPPORT fender, right hand, Replaces: K306474

1шт.

13

K603108

SCREW

BOLT axle housing, 1/2 UNC x 1-1/2 inch

4шт.

14

K626345

LOCK WASHER

WASHER lock, 1/2 inch

4шт.

15

K607426

STUD, 1/2 UNC x 2-1/2 inch

4шт.

16

K19484

LOCK WASHER

WASHER lock, 1/2 inch

4шт.

17

K607004

NUT

hex, 1/2 inch UNC

4шт.

18

K650644

BOLT

M8 x 30 mm

10шт.

19

K650646

BOLT

M8 x 40 mm

2шт.

20

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

13шт.

21

825-1408

NUT,M8, Cl 8

3шт.

22

K308690

GUARD

tie

2шт.

23

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 16 mm

4шт.

24

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

4шт.

26

825-1408

NUT,M8, Cl 8

4шт.

27

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 25 mm

4шт.

28

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

29

825-1408

NUT,M8, Cl 8

6шт.

32

K307157

COVER

PLATE cover, right hand support

1шт.

33

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

2шт.

34

825-1408

NUT,M8, Cl 8

2шт.
