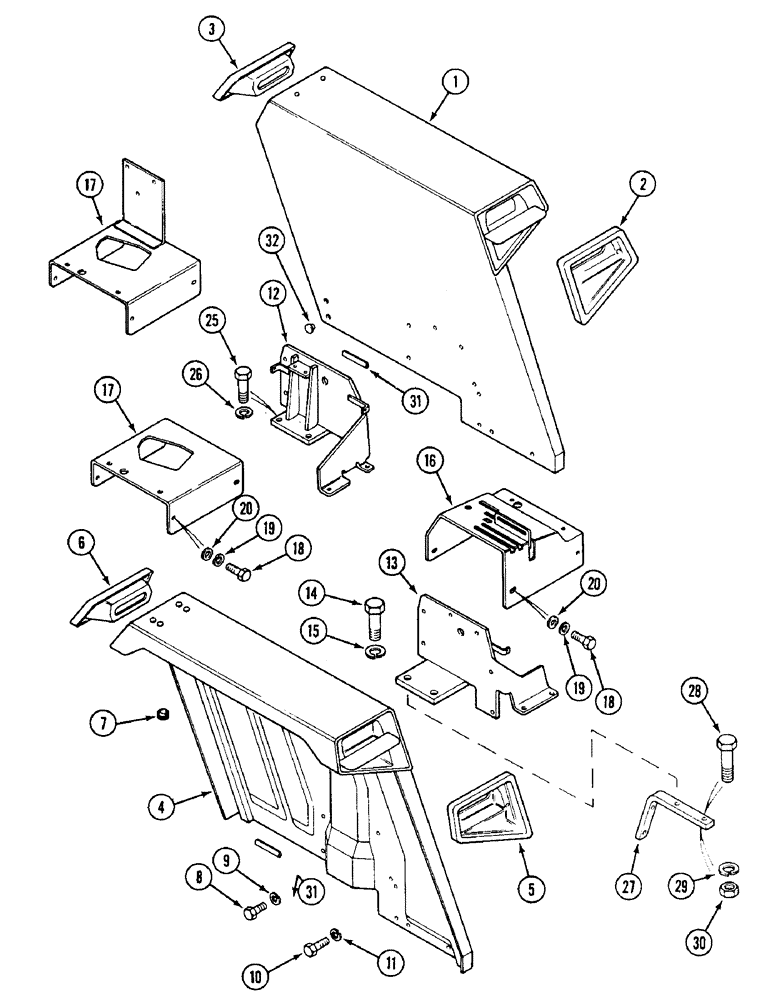

Запчасти Case IH 1494 (9-410) - REAR FENDERS AND MOUNTINGS, TRACTORS WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1

K300386

FENDER

full, left hand, not North America

1шт.

1

K305126

FENDER

full, left hand, North America

1шт.

2

K300413

MOLDING

MOULDING, front, left hand

1шт.

3

K300422

MOLDING

MOULDING, rear, left hand

1шт.

4

K300388

FENDER

full, right hand, not North America

1шт.

4

K305120

FENDER

full, right hand, North America

1шт.

5

K300423

MOLDING

MOULDING, front, right hand

1шт.

6

K300405

MOLDING

MOULDING, rear, right hand

1шт.

7

K627781

PLUG

blanking, 7/32 inch diameter

4шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, full threads, 8 - 1.25 x 20 mm

12шт.

8

K650648

BOLT

M8 x 15 mm

2шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

12шт.

10

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 25 mm

4шт.

11

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

12

K306885

SUPPORT

BRACKET support, left hand fender

1шт.

13

K306886

SUPPORT

BRACKET support, right hand fender

1шт.

12

A177284

FENDER

SUPPORT fender, left hand, North America

1шт.

13

A177285

FENDER

SUPPORT fender, right hand, North America

1шт.

14

K601356

BOLT

5/8 UNC x 2 inch

4шт.

15

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

16

K306370

PANEL

CONSOLE hydraulic controls

1шт.

16

K311570

BRACKET

CONSOLE, right hand, with folding ROPS

1шт.

17

K310551

PANEL

CONSOLE, left hand, with 3 way valve fitting, Replaces: K307048

1шт.

17

K311575

CONSOLE, left hand, with folding ROPS

1шт.

18

K651242

BOLT

M8 x 20 mm

12шт.

19

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

12шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

12шт.

25

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

27

K308224

BRACKET

support, fender, high clearance

2шт.

28

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

hex, 5/8 NC x 2-1/4 inch

2шт.

29

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

30

425-1010

NUT,5/8"-11, G5

2шт.

31

K309029

STRIP

PROTECTOR edge, 100 mm

2шт.

32

K627781

PLUG

blanking, 7/32 inch diameter

4шт.
