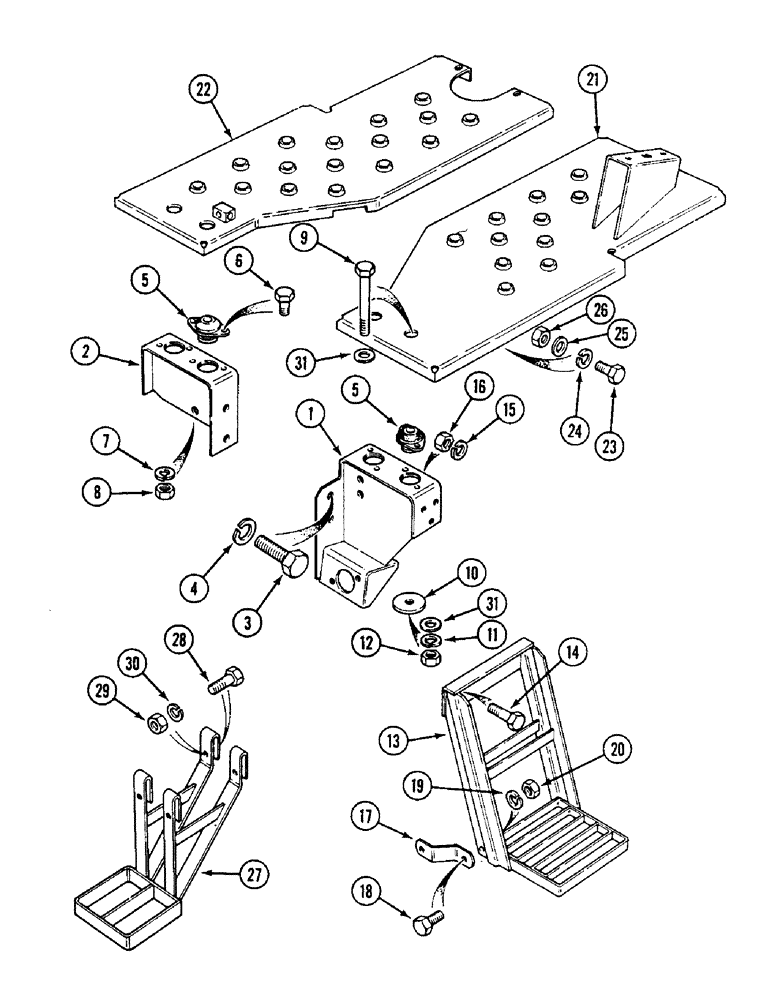

Запчасти Case IH 1494 (9-408) - FOOTPLATES AND STEPS, TRACTORS WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1

K306637

BRACKET

mounting, left hand front

1шт.

2

K304800

BRACKET

mounting, right hand front

1шт.

3

K603304

SCREW

BOLT hex, 5/8 x 1-1/4 inch NC

6шт.

4

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

5

K300649

BLOCK

MOUNTING rubber, front

4шт.

6

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

8шт.

8

825-13412

NUT,M12 x 1.25, Cl 8

cable, M12

8шт.

9

K600477

BOLT

3/8 UNC x 2-1/2 inch

4шт.

10

K627465

WASHER

10 mm

4шт.

11

492-11038

LOCK WASHER,3/8"

4шт.

12

425-106

NUT,3/8"-16, Cl 5

3шт.

12

232-1416

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

13

K307012

STEP

left hand and right hand

2шт.

14

K650342

BOLT

M8 x 20 mm

6шт.

15

592-6

WASHER

lock, 8 mm, Serial Range: step-bracket

6шт.

16

K651507

NUT

M8

6шт.

17

K203222

BRACKET

support, step

2шт.

18

K602849

SCREW

5/16 UNC x 7/8 inch

4шт.

19

K19481

SPRING WASHER

WASHER lock, 5/16 inch

4шт.

20

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

21

K307698

PLATE

FOOTPLATE, left hand

1шт.

22

K306425

PLATE

FOOTPLATE, right hand

1шт.

22

K311917

STEP

FOOTPLATE, right hand, for new tank K210454

1шт.

23

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 16 mm

4шт.

24

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

8шт.

26

825-1408

NUT,M8, Cl 8

4шт.

27

K302581

STEP

EXTENSION step, high clearance

2шт.

28

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 25 mm, high clearance

8шт.

29

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, High Clearance

8шт.

30

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , High clearance M8

8шт.

31

K19472

WASHER

flat, 3/8 inch, 10 mm

8шт.
