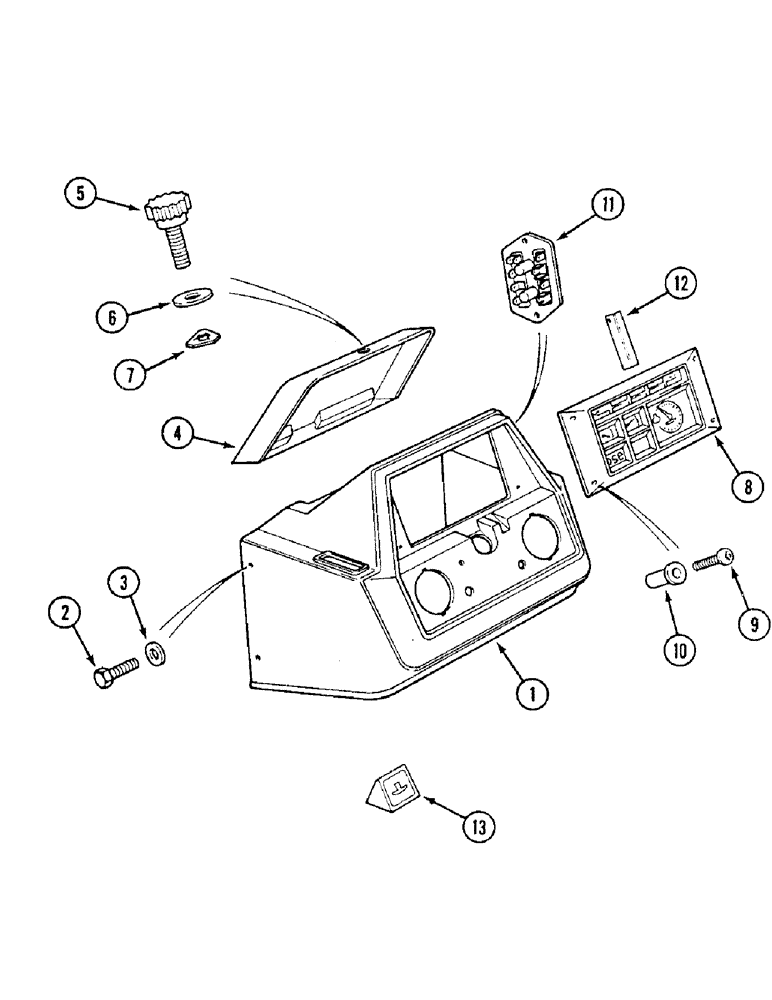

Запчасти Case IH 1494 (9-406) - INSTRUMENT PANEL, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

1

K307632

PANEL

instrument, Synchromesh

1шт.

2

K652509

SCREW,Pan, M6 x 1 x 30mm

M6 x 30 mm

4шт.

3

K651904

WASHER

6 mm

4шт.

4

K307631

COVER

instrument panel

1шт.

5

K303952

SCREW,M5 x 0.8 x 18mm, Steel

M5, special

1шт.

6

K651903

WASHER

6 mm, special

1шт.

7

K626173

CLIP

RETAINER screw

1шт.

8

REF

INSTRUCTION

CLUSTER instrument, See Figure 4-060

1шт.

9

30464R1

SCREW,Cross Pan Hd, M5 x 25

machine, 5 mm x 25 mm long

4шт.

10

K653092

NUT

INSERT, M5 x 25 mm

4шт.

11

REF

INSTRUCTION

BOX ASSEMBLY fuse, See Figure 4-064

1шт.

12

K304557

BRACKET

SUPPORT, power shift lever decal

1шт.

13

K307960

DECAL

SUPPORT, stop control decal, North America only

1шт.
