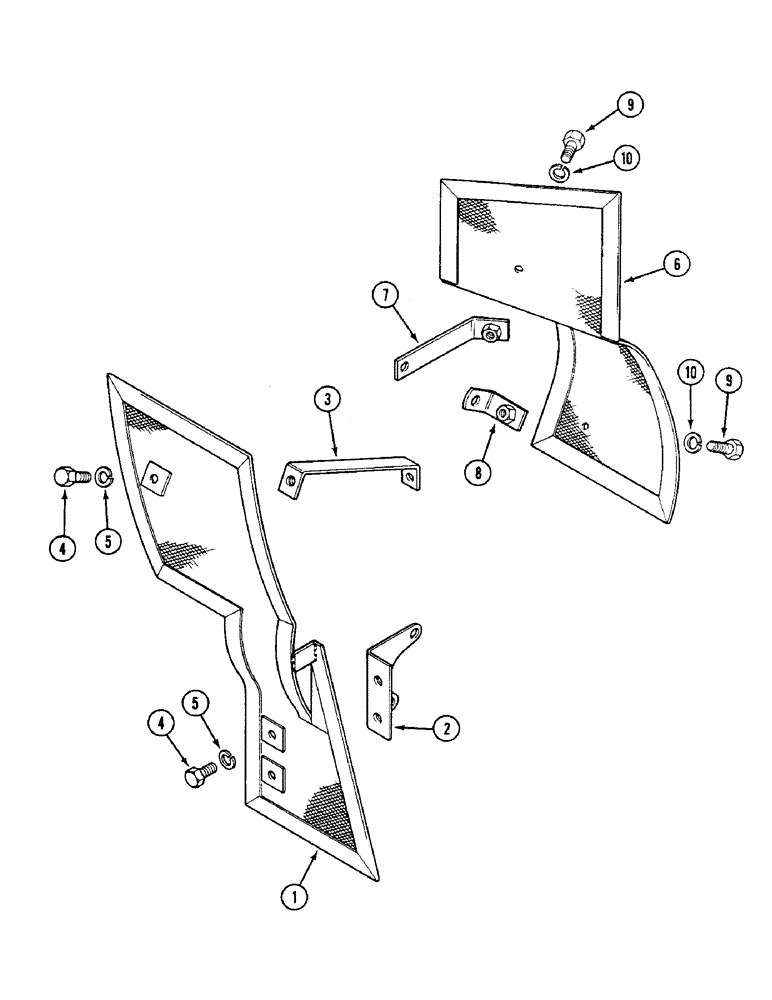

Запчасти Case IH 1494 (9-402) - GUARDS, DRIVE BELTS AND PULLEYS, UK TRACTORS ONLY (09) - CHASSIS/ATTACHMENTS
8
9
5
6
10
1
4
4
9
2
10
3
7
5
№
Артикул
Название
Примечание
Количество
1
K310533
GUARD
right hand
1шт.
2
K310460
SUPPORT
BRACKET, guard to timing cover
1шт.
3
K310458
BRACKET
guard to alternator bracket
1шт.
4
614-8020
BOLT,Hex, M8 x 1.25 x 20mm
hex, full threads, 8 - 1.25 x 20 mm
3шт.
5
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
3шт.
6
K310528
GUARD
left hand
1шт.
7
K310530
SUPPORT
BRACKET, guard and water pump
1шт.
8
K310433
SUPPORT
BRACKET, guard to timing cover
1шт.
9
614-8020
BOLT,Hex, M8 x 1.25 x 20mm
hex, full threads, 8 - 1.25 x 20 mm
2шт.
10
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
2шт.
Выбрано товаров: 10
