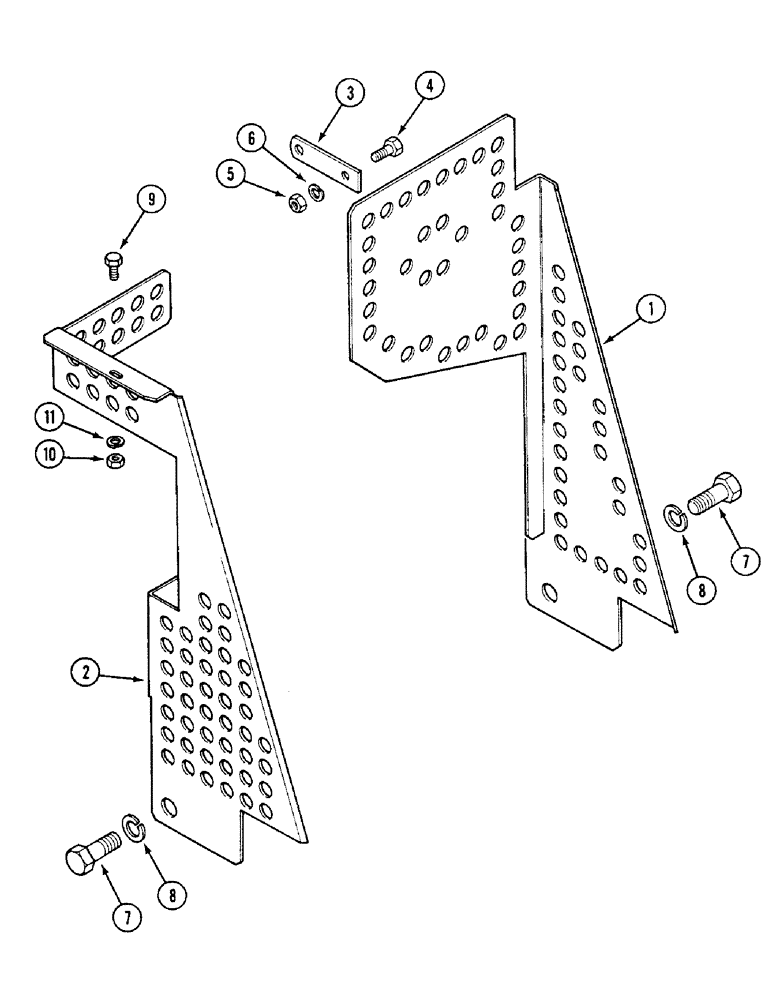

Запчасти Case IH 1494 (9-400) - GUARDS - DRIVE BELTS AND PULLEYS, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

UK6814

GUARD ASSEMBLY, fan and bolts, order components, Includes: Ref. 1 - 11

1шт.

1

K208430

GUARD

left hand

1шт.

2

K311789

GUARD

right hand

1шт.

3

K208437

BRACKET

left hand

1шт.

4

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, full threads, 8 - 1.25 x 20 mm

1шт.

5

825-1408

NUT,M8, Cl 8

1шт.

6

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

7

K603274

SCREW

BOLT, 5/8 UNC x 1-1/2 inch

2шт.

8

492-11038

LOCK WASHER,3/8"

2шт.

9

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

10

825-13412

NUT,M12 x 1.25, Cl 8

cable, M12

1шт.

11

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.
