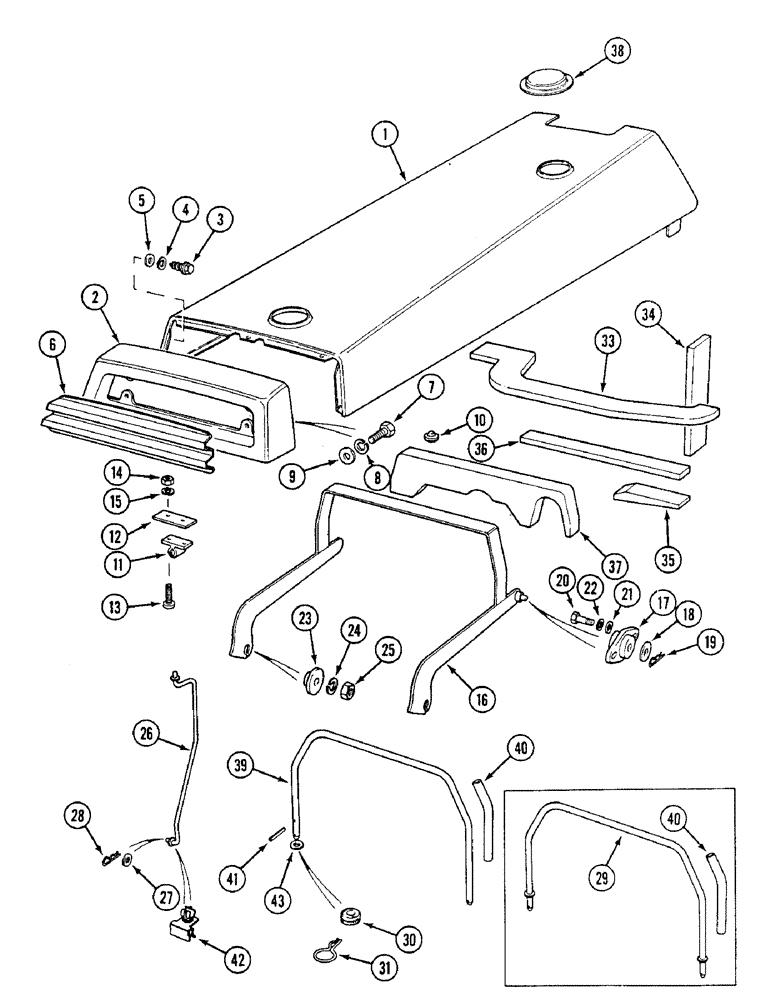

Запчасти Case IH 1494 (9-398) - ENGINE HOOD AND HINGE (09) - CHASSIS/ATTACHMENTS

1

K307677

HOOD

engine, without cab

1шт.

1

K307659

HOOD

engine, with cab

1шт.

2

K956313

HOOD

NOSE hood, engine

1шт.

3

K624534

SELF-TAP SCREW

SCREW, special.

5шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

5шт.

5

K626552

WASHER

lock, 1/4 inch

5шт.

6

K301066

GUARD

GRILLE, upper

1шт.

7

K652504

SCREW

M5 x 16 mm

4шт.

8

K651846

WASHER, LOCK

WASHER lock, 5 mm

4шт.

9

K626946

WASHER

5 mm

4шт.

10

K916596

PLUG

rubber

4шт.

11

K304944

LOCK

CATCH hood

1шт.

12

K304946

PLATE

catch

1шт.

13

K615408

SCREW,Pan, #10 - 32 x 1"

No. 10 UNF x 1 inch

2шт.

14

K617299

LOCK NUT

self locking, No. 10 UNF

2шт.

15

K626340

RING

WASHER lock, 10

2шт.

16

K305981

PIVOT

FRAME hood

1шт.

17

K304095

LINK

BRACKET pivot

2шт.

18

K692199

WASHER

8 mm, special, early tractors

2шт.

18

K210412

WASHER, LOCK

WASHER locking, special, later tractors

2шт.

19

K950865

CLIP

retaining

2шт.

20

K650628

BOLT

M6 x 20 mm

4шт.

21

K626662

WASHER

1/4 inch

4шт.

22

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

23

K205385

BUSHING

SPACER cross member

2шт.

24

892-11010

LOCK WASHER,M10

2шт.

25

825-1410

NUT,M10, Cl 8

2шт.

26

K305966

SUPPORT

ROD hood support

1шт.

27

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

1шт.

28

K950865

CLIP

retaining

1шт.

29

REF

INSTRUCTION

GUIDE hood, without cab, order Ref. 30,31,39 and 41

1шт.

30

K627718

GROMMET,3/8" ID x 5/8" Groove Dia

guide

2шт.

31

K38632

SPRING

CLIP retaining

2шт.

32

K311594

SLEEVE

guide, used with K306269

2шт.

33

K307830

STRIP

SEAL hood, rear

1шт.

34

K307833

SEALING STRIP

SEAL hood, side, rear

1шт.

35

K306747

BAFFLE

SEAL hood, top

2шт.

36

K306748

BAFFLE

SEAL pivot arm

1шт.

37

K306983

BAFFLE

SEAL pivot arm

1шт.

38

K308885

PLATE

hood

1шт.

39

REF

INSTRUCTION

GUIDE hood, without cab, order components, Includes: Ref. 40 & 41

1шт.

40

K311594

SLEEVE

guide

2шт.

41

K311515

PIN

locating, use with K262252

2шт.

42

K657161

CLIP

support rod

1шт.

43

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

2шт.
