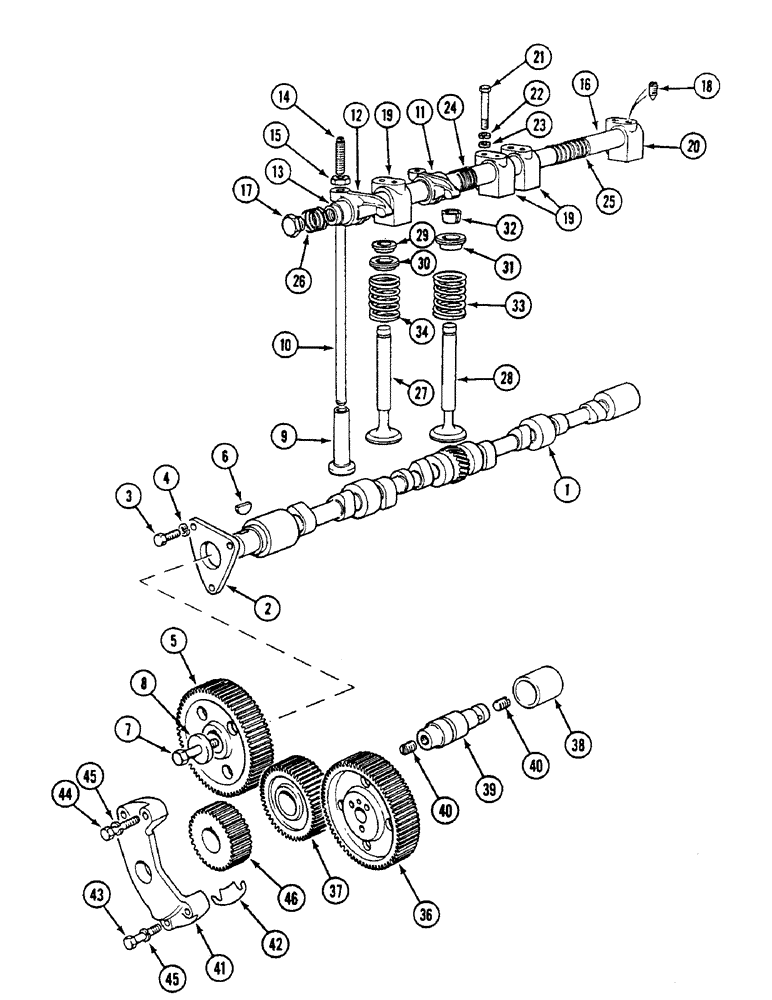

Запчасти Case IH 1494 (2-020) - VALVE MECHANISM AND TIMING GEARS (02) - ENGINE

1

K921769

CAMSHAFT

1шт.

2

K902015

PLATE

locating

1шт.

3

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- 5/16 UNC x 1 inch

3шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

5

K945097

GEAR

68 teeth

1шт.

6

126-15

WOODRUFF KEY,#8, 5/32" x 3/4"

(No. 506) #8, 5/32" x 3/4"

1шт.

7

K600700

BOLT

7/16 UNC x 2 inch

1шт.

8

K66382

WASHER

7/16 inch, 11 mm

1шт.

9

K901137

TAPPET

valve

8шт.

10

K902035

ROD

push, rocker arm

8шт.

11

K63089

ROCKER

valve, right hand, with bushing, No., 2 from front

4шт.

12

K63090

ROCKER

valve, left hand. with bushing, No., 1 from front

4шт.

13

K11060

BUSHING

valve rocker

1шт.

14

K900413

ADJUSTMENT SCREW,3/8" - 16 x 1 1/8"

adjusting, 3/8 inch UNC

8шт.

15

425-11146

NUT lock, 3/8 inch UNC

8шт.

16

K909622

SHAFT

rocker

1шт.

17

K19590

PLUG

3/8 inch BSP

2шт.

18

K606051

SET SCREW,5/16" - 18 x 1/2"

locating, 5/16 inch UNC

1шт.

19

K921431

BRACKET

rocker shaft, nos.

3шт.

20

K921432

BRACKET

rocker shaft, rear

1шт.

21

K600611

BOLT

7/16 UNC x 2-5/8 inch

4шт.

22

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

23

K626314

WASHER

7/16 inch

4шт.

24

K11017

SPRING

locating, intermediate

2шт.

25

K11034

SPRING

locating, center

1шт.

26

K11018

SPRING

locating, ends

2шт.

27

K950100

STD EXHAUST VALVE

VALVE exhaust, standard stem

4шт.

27

K950545

VALVE

exhaust, 0.010 inch, 0.25 mm, oversize stem

4шт.

27

K950546

VALVE

exhaust, 0.020 inch, 0.51 mm, oversize stem

4шт.

28

K928622

STD INLET VALVE

VALVE intake and exhaust, standard stem

4шт.

28

K928986

VALVE

intake and exhaust, 0.010 inch, 0.25 mm, oversize stem

4шт.

28

K928987

VALVE

intake and exhaust, 0.020 inch, 0.51 mm, oversize stem

4шт.

29

K928623

COLLAR

exhaust valve, inner

4шт.

30

K928624

COLLAR

exhaust valve, outer

4шт.

31

K921437

COLLAR

intake valve

4шт.

32

K943439

LOCKING DEVICE

COTTER intake and exhaust valve

16шт.

33

K921435

SPRING

intake valve

4шт.

34

K921436

VALVE SPRING

SPRING exhaust valve

4шт.

36

K949822

GEAR

pump drive, 68 teeth

1шт.

37

K946144

GEAR

ASSEMBLY intermediate, 47 teeth, Includes: Ref. 38

1шт.

38

K628751

BUSHING

1шт.

39

K944136

GEAR SHAFT

SHAFT intermediate gear

1шт.

40

178-425

SET SCREW

PLUG, 5/16 inch UNC

2шт.

41

K904073

SUPPORT

BRACKET intermediate gear support

1шт.

42

K902113

SHIM,.003" Thk

(0.08 mm) .003" Thk

1шт.

42

K902114

SHIM,.010" Thk

(0.25 mm) .010" Thk

1шт.

42

K908713

SHIM,.020" Thk

(0.51 mm) .020" Thk

1шт.

43

26-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

5/16 UNC x 1-3/4 inch

2шт.

44

326-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

2шт.

45

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

46

K945094

GEAR

crankshaft, 34 teeth

1шт.
