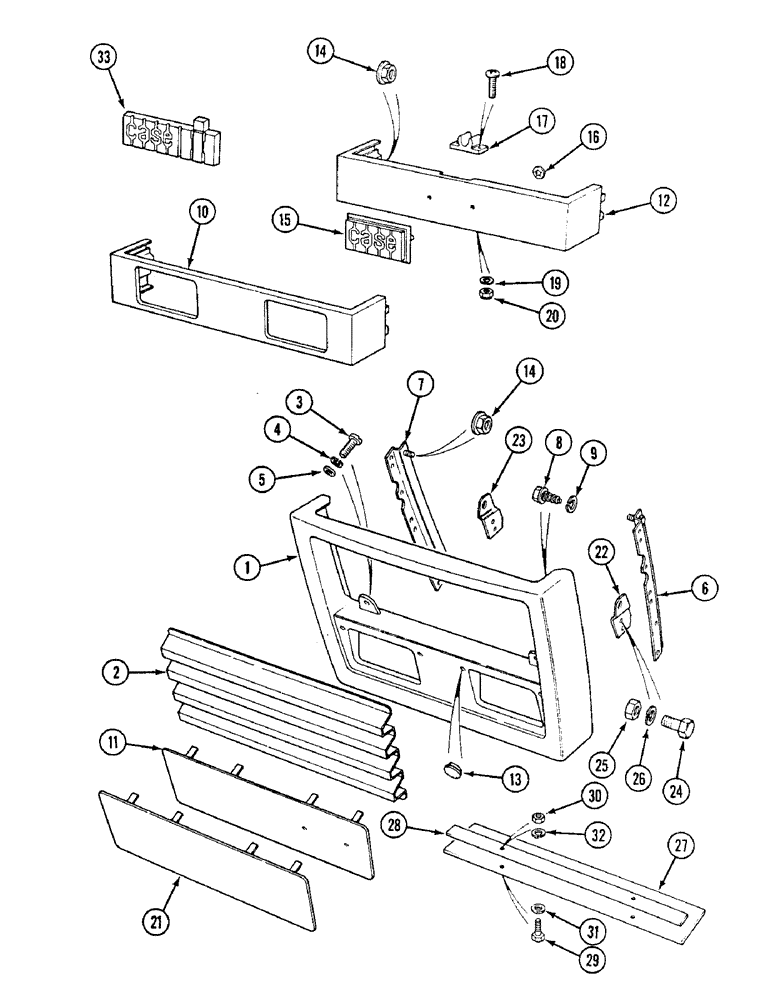

Запчасти Case IH 1494 (9-394) - ENGINE FRONT HOOD (09) - CHASSIS/ATTACHMENTS

1

K300006

GRILLE

NOSE, lower

1шт.

2

K308483

GUARD

GRILLE, lower, Replaces: K300097

1шт.

3

K652504

SCREW

M5 x 16 mm

4шт.

4

K651846

WASHER, LOCK

WASHER lock, 5 mm

4шт.

5

K626946

WASHER

5 mm

4шт.

6

K304827

SUPPORT

BRACKET support, left hand

1шт.

7

K304829

SUPPORT

BRACKET support, right hand

1шт.

8

K624534

SELF-TAP SCREW

SCREW, special

6шт.

9

K626552

WASHER

lock, 1/4 inch

6шт.

10

K311366

BRACKET

WAISTRAIL, front, with head lamp mounting

1шт.

11

K311360

PLATE

blanking, head lamp apertures

1шт.

12

K305962

FRAME

WAISTRAIL, front, without head lamp mounting

1шт.

13

K627874

PLUG

headlamp adjusters

4шт.

14

K6533015

NUT, M8, special

4шт.

15

321-4739

EMBLEM

CASE

1шт.

16

K659151

PUSH-ON NUT

1/4 inch

2шт.

17

K304945

FASTENER

CATCH cover top

1шт.

18

K614946

SCREW,Pan, #10 - 32 x 3/4"

No.10 UNF x 3/4 inch

2шт.

19

K626340

RING

WASHER lock, 10

2шт.

20

K617299

LOCK NUT

self locking, No., 10 UNF

2шт.

21

K311360

PLATE

blanking, head lamp apertures

1шт.

22

K302149

BRACKET

head lamp, left hand

1шт.

23

K302150

BRACKET

head lamp, right hand

1шт.

24

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 16 mm

8шт.

25

825-1408

NUT,M8, Cl 8

8шт.

26

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

27

K308235

BAFFLE

rubber

1шт.

28

K308236

STRIP

clamping

1шт.

29

K650616

BOLT

M5 x 20 mm, order 814-5020

2шт.

30

K651505

NUT

M5, order 825-1405

2шт.

31

K651776

WASHER

5 mm

2шт.

32

K651826

WASHER

lock, 5 mm

2шт.

33

1536056C1

EMBLEM CASE/IH

EMBLEM CASE IH logo

1шт.
