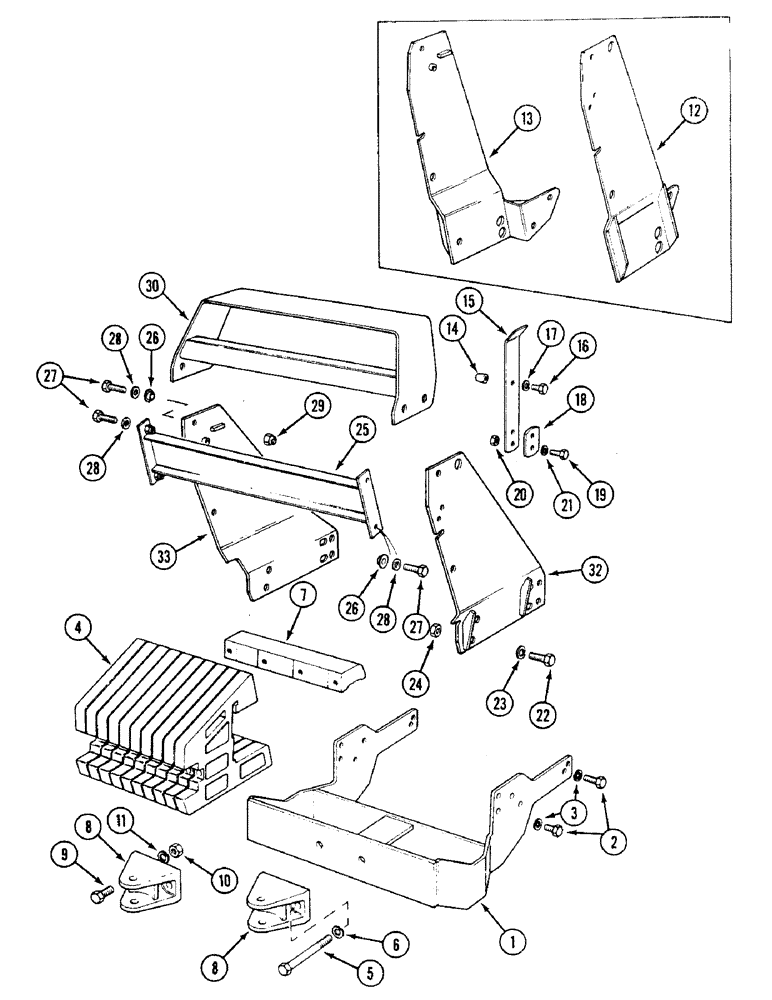

Запчасти Case IH 1494 (9-392) - WEIGHTS, FRAME, TOW BRACKET, RADIATOR GUARD (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
UK5716
ATTACHMENT
FRAME ATTACHMENT ballast, Includes: Ref. 1 - 3
1шт.
1
K306877
FRAME
support
1шт.
2
K603276
SCREW
BOLT, 5/8 UNC x 1-3/4 inch
8шт.
3
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
UK5720
ATTACHMENT
WEIGHT ATTACHMENT ballast, Includes: Ref. 4 - 7
1шт.
4
K306858
WEIGHT
ballast
12шт.
5
K650833
BOLT
M16 x 330 mm
2шт.
6
892-11016
LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk
WASHER - lock, 16 mm
4шт.
7
K306896
BAR
locking
1шт.
A177102
KIT
HARDWARE KIT weight, North America only
1шт.
UK5721
KIT
BRACKET ATTACHMENT tow, Includes: Ref. 8 - 11
1шт.
8
K207651
CLEVIS
BRACKET tow
1шт.
9
K650726
BOLT
M16 x 55 mm
2шт.
10
829-1416
NUT,M16, Cl 10
hex, 16 mm, 2.0, class 10
2шт.
11
892-11016
LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk
WASHER - lock, 16 mm
2шт.
UK5586
KIT
GUARD ATTACHMENT radiator, Includes: Ref. 12 - 33
1шт.
12
K305108
PLATE
side, left hand, use with K305110, early tractors
1шт.
13
K305110
PLATE
side, right hand, use with K305108, early tractors
1шт.
14
K305085
STOP
PIN stop
1шт.
15
K305088
STOP
STRAP spring
1шт.
16
K650657
BOLT
M10 x 14 mm
1шт.
17
892-11010
LOCK WASHER,M10
1шт.
18
K948166
SPRING
PLATE strap
1шт.
19
413-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
2шт.
20
280136
NUT,3/8"-16, G8
2шт.
21
892-11010
LOCK WASHER,M10
2шт.
22
K691849
BOLT
5/8 UNC x 2 inch
8шт.
23
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
24
425-1010
NUT,5/8"-11, G5
4шт.
25
K305112
CHANNEL
BAR tie
1шт.
26
K305087
BUSHING
plastic
4шт.
27
K691960
SCREW
BOLT, 1/2 UNC x 1-5/8 inch
6шт.
28
K626686
WASHER
flat, 1/2 inch, 13 mm
6шт.
29
231-1448
NUT,1/2"-13, GB
hex, self locking, 1/2 inch NC
2шт.
30
K305114
GUARD
hood nose
1шт.
32
K305162
PLATE
side, left hand, use with K305163, later tractors
1шт.
33
K305163
PLATE
side, right hand, use with K305162, later tractors
1шт.
Выбрано товаров: 37
