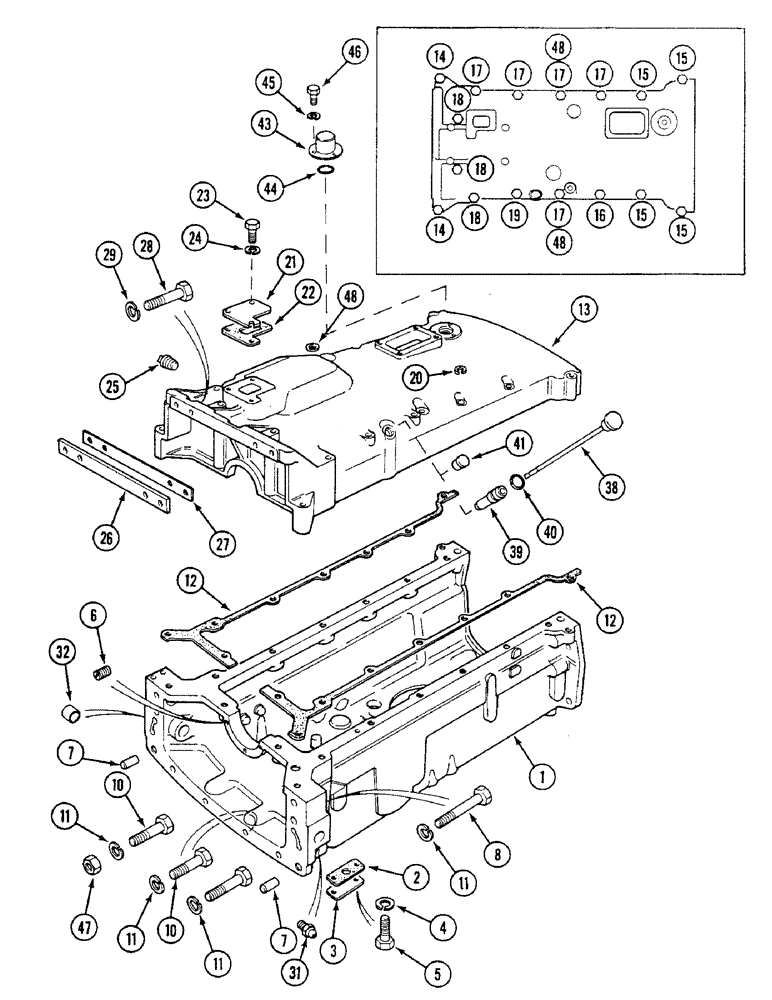

Запчасти Case IH 1494 (9-388) - REAR MAIN FRAME AND GEARBOX COVER, POWER SHIFT TRACTORS (09) - CHASSIS/ATTACHMENTS

1

K954971

FRAME

rear main, two wheel drive

1шт.

1

K956327

FRAME

rear main, MFD

1шт.

2

K919279

GASKET

cover plate

1шт.

3

K919278

COVER

PLATE cover

1шт.

4

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

5

K603002

BOLT (SPREADER)

BOLT, 7/16 UNC x 7/8 inch

2шт.

6

K606229

SCREW

5/16 UNC x 3/8 inch

3шт.

7

K900105

PIN

DOWEL, 5/8 x 1-7/16 inch

2шт.

8

K600816

BOLT

1/2 UNC x 3-1/2 inch

6шт.

10

K600808

BOLT

1/2 UNC x 2-1/4 inch

4шт.

11

K19484

LOCK WASHER

WASHER lock, 1/2 inch

10шт.

12

K205303

GASKET

gearbox cover

2шт.

13

K200816

COVER

gearbox

1шт.

14

K600816

BOLT

1/2 UNC x 3-1/2 inch

2шт.

15

K600817

BOLT

1/2 x 3-3/4 inch, with creeper gear

2шт.

15

K600818

BOLT (SPREADER)

BOLT, 1/2 UNC x 4 inch, with cab

2шт.

16

K600822

BOLT

1/2 UNC x 5 inch

2шт.

17

K600824

BOLT

1/2 UNC x 5-1/2 inch

4шт.

18

K600829

BOLT

1/2 UNC x 6-3/4 inch

3шт.

19

413-8128

BOLT,Hex, 1/2" - 13 x 8", Gr 5

hex, 1/2 NC x 8 inch

1шт.

20

K19484

LOCK WASHER

WASHER lock, 1/2 inch

14шт.

21

K207780

COVER

PLATE gearbox cover, without cab

1шт.

21

K308400

COVER

PLATE gearbox cover, with cab

1шт.

22

K207786

GASKET,0.25mm Thk

cover plate

1шт.

23

K602803

BOLT

5/16 UNC x 3/4 inch

3шт.

24

K19481

SPRING WASHER

WASHER lock, 5/16 inch

3шт.

25

K14518

PLUG

3/4 inch BSP

1шт.

26

K205305

WEDGE

spacing

1шт.

27

K205306

SHIM,.040" Thk

Cover .040" Thk

1шт.

28

K600810

BOLT

1/2 UNC x 2-1/2 inch

4шт.

29

K19484

LOCK WASHER

WASHER, lock, 1/2 inch

4шт.

31

K22164

FITTING

grease

1шт.

32

K628753

BUSHING

main frame

3шт.

38

K203608

DIPSTICK

transmission oil, 12 inch, without cab

1шт.

39

K942348

SLEEVE

dipstick

1шт.

40

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

41

K210364

PIN

PLUG gearbox cover, with cab, Replaces: K628102

1шт.

43

K940284

COVER

starter safety switch

1шт.

44

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

1шт.

45

K626341

SPRING WASHER

WASHER lock, 1/4 inch

3шт.

46

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, pan head Phillips, 1/4 x 1/2 inch NC

3шт.

47

K607004

NUT

hex, 1/2 inch UNC

2шт.

48

K14582

WASHER

sealing

2шт.
