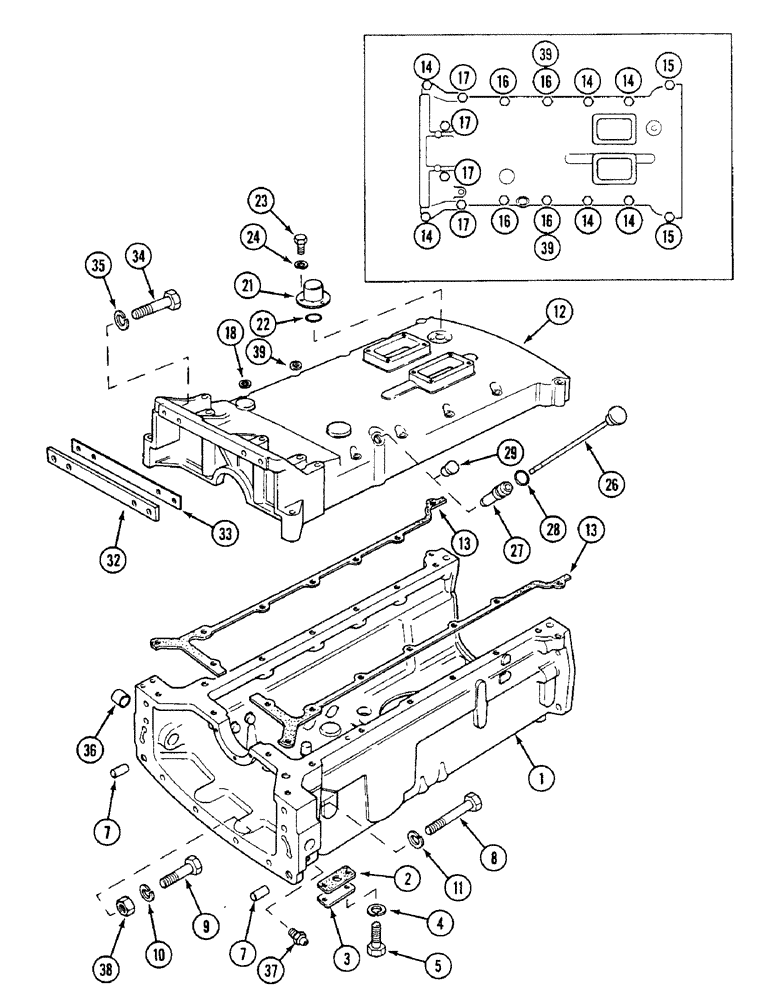

Запчасти Case IH 1494 (9-386) - REAR MAIN FRAME AND GEARBOX COVER, SYNCHROMESH TRACTORS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
K954971
FRAME
rear main, two wheel drive without creeper gear
1шт.
1
K956327
FRAME
rear main, MFD without creeper gear
1шт.
1
K957512
FRAME
rear main, two wheel drive with creeper gear
1шт.
1
K957513
FRAME
rear main, MFD with creeper gear
1шт.
2
K919279
GASKET
cover plate
1шт.
3
K919278
COVER
PLATE cover
1шт.
4
492-11044
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
2шт.
5
K603002
BOLT (SPREADER)
BOLT, 7/16 UNC x 7/8 inch
2шт.
7
K900105
PIN
DOWEL, 5/8 x 1-7/16 inch
2шт.
8
K600816
BOLT
1/2 UNC x 3-1/2 inch
6шт.
9
K608808
BOLT
1/2 UNC x 2-1/4 inch
4шт.
10
K19484
LOCK WASHER
WASHER lock, 1/2 inch
10шт.
12
K956390
COVER
gearbox, without creeper gear
1шт.
12
K957507
COVER
gearbox, with creeper gear
1шт.
13
K205303
GASKET
gearbox cover
1шт.
14
K600816
BOLT
1/2 UNC x 3-1/2 inch
6шт.
15
K600817
BOLT
1/2 x 3-3/4 inch, with creeper gear
2шт.
16
K600821
BOLT
1/2 UNC x 4-3/4 inch
4шт.
17
K600829
BOLT
1/2 UNC x 6-3/4 inch
4шт.
18
K19484
LOCK WASHER
WASHER lock, 1/2 inch
16шт.
21
K940284
COVER
starter safety switch
1шт.
22
238-5222
O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro
1шт.
23
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
SCREW pan head Phillips, 1/4 x 1/2 inch NC
3шт.
24
K626341
SPRING WASHER
WASHER lock, 1/4 inch
3шт.
26
K205071
DIPSTICK
transmission oil, without cab, 10-1/4 inch
1шт.
27
K942348
SLEEVE
dipstick
1шт.
28
O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro
-013, 70 Duro, .426" ID x .070" Thk
1шт.
29
K210364
PIN
PLUG gearbox cover, with cab, Replaces: K628102
1шт.
32
K205305
WEDGE
spacing
1шт.
33
K205306
SHIM,.040" Thk
Cover .040" Thk
1шт.
34
K600810
BOLT
1/2 UNC x 2-1/2 inch
4шт.
35
K19484
LOCK WASHER
WASHER lock, 1/2 inch
4шт.
36
K628753
BUSHING
main frame
3шт.
37
K22164
FITTING
grease
1шт.
38
K607004
NUT
hex, 1/2 inch UNC
2шт.
39
K14582
WASHER
sealing
2шт.
