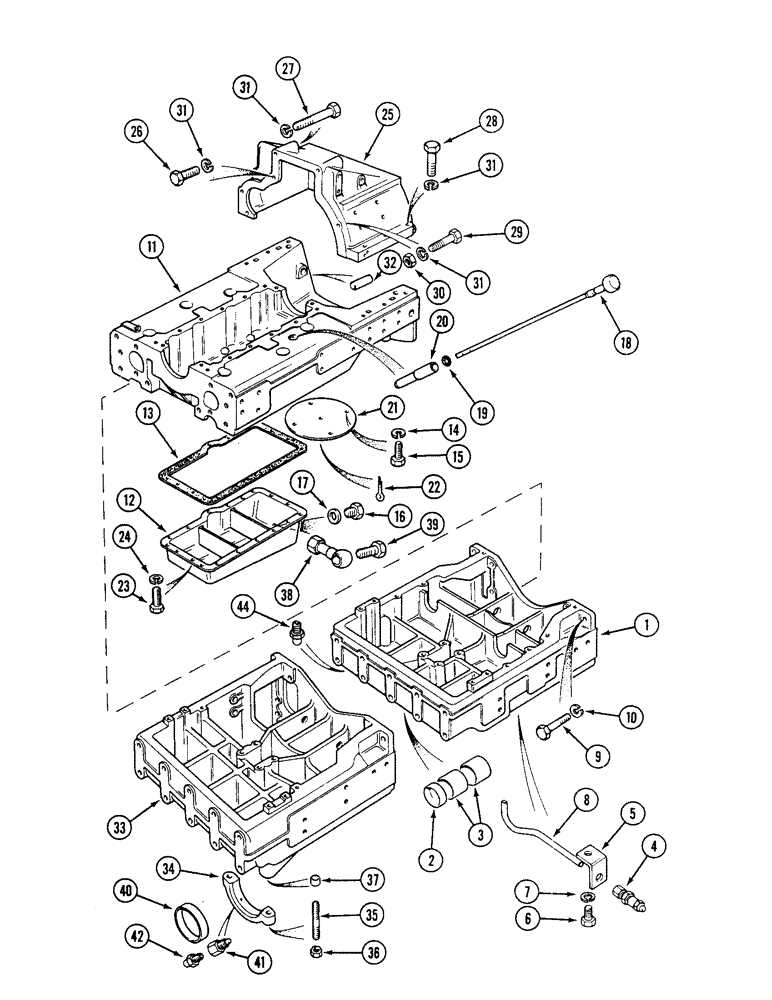

Запчасти Case IH 1494 (9-384) - FRONT MAIN FRAME AND COVERS (09) - CHASSIS/ATTACHMENTS

1

K956475

EXTENSION

FRONT EXTENSION, two wheel drive tractors

1шт.

2

41-1626

PLUG,Cup, 1 5/8", Stainless

core front extension, two wheel drive tractors

1шт.

3

K15597

BUSHING

main frame, two wheel drive tractors

4шт.

4

K622255

FITTING

grease

1шт.

5

K948809

BRACKET

support, grease fitting

1шт.

6

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

1шт.

7

K19481

SPRING WASHER

WASHER lock, 5/16 inch

1шт.

8

K948808

TUBE

lube, trunnion bearing

1шт.

9

K600806

BOLT

1/2 UNC x 2 inch, two wheel drive tractors, order 413-832

12шт.

9

K608824

BOLT

1/2 UNC x 2 inch, MFD tractors, order 326-832

12шт.

10

K19484

LOCK WASHER

WASHER lock, 1/2 inch, order 492-11050

12шт.

11

K948211

FRAME

main, front

1шт.

12

K956548

SUMP

COVER sump

1шт.

13

K918684

GASKET,2.38mm Thk

sump

1шт.

14

K19481

SPRING WASHER

WASHER lock, 5/16 inch, order 492-11031

18шт.

15

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

18шт.

16

K623849

PLUG

sump drain, 1/2 inch BSP

1шт.

17

K15143

WASHER

sealing, 7/8 inch, 22 mm

1шт.

18

K964774

DIPSTICK

ASSEMBLY, 10-7/32 inch, Includes: Ref. 19

1шт.

19

K625400

O-RING,0.07" Thk x 0.239" ID

1/4 inch, 6 mm ID

1шт.

20

K948224

SLEEVE

engine dipstick

1шт.

21

K919622

PLATE

COVER clutch, lower

1шт.

22

K11933

PIN

cotter, 1/8 x 5/8 inch

1шт.

23

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

24

K19481

SPRING WASHER

WASHER lock, 5/16 inch

4шт.

25

K207309

CLUTCH

HOUSING clutch

1шт.

26

K600810

BOLT

1/2 UNC x 2-1/2 inch, order 413-840

6шт.

27

K600425

BOLT

3/8 UNC x 5-1/4 inch, order 413-684

2шт.

28

K600408

BOLT,3/8" x 2"

3/8 UNC x 2 inch, order 413-632.

1шт.

29

K600410

BOLT

3/8 UNC x 2-1/4 inch, order 413-636

1шт.

30

280136

NUT,3/8"-16, G8

Order 425-106 3/8"-16, G8

1шт.

31

492-11038

LOCK WASHER,3/8"

4шт.

32

K900105

PIN

DOWEL, 5/8 x 1-7/16 inch

2шт.

33

K204657

FRAME

EXTENSION, front, prior to P.I.N.11518001, Includes: Ref. 34 - 37

1шт.

33

K395162

EXTENSION

front, MFD, P.I.N.11518001 and after, Includes: Ref. 34 - 37

1шт.

34

NSS

NOT SOLD SEPARAT

CAP bearing, MFD

2шт.

35

K260224

STUD

cap, Carraro 107085, MFD tractors

4шт.

36

K965427

NUT

cap, Carraro 22436, MFD tractors

4шт.

37

K956979

BUSHING

DOWEL ring, MFD tractors

4шт.

38

K965413

PIPE

EXTENSION sump drain, MFD tractors

1шт.

39

K965416

BOLT

BOLT, special, 1/2 inch BSP, MFD tractors

1шт.

40

K965265

BUSHING

steel, Carraro 101575/1, MFD tractors

2шт.

41

K965424

ADAPTER

SCREW locating, MFD tractors

2шт.

42

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, , Carraro 101575, MFD tractors M6 x 1, 16mm lg

2шт.

44

219-13

LUBE NIPPLE,3/16" NPTF

FITTING grease, straight, 3/16 drive type x 19/32 inch

1шт.
