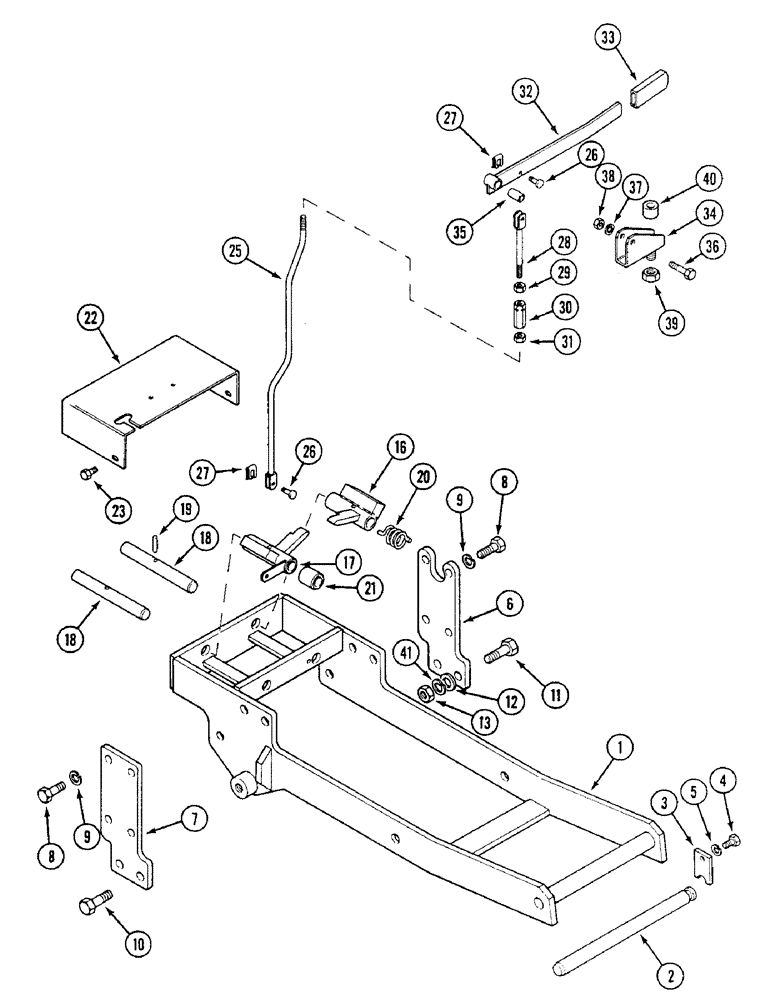

Запчасти Case IH 1494 (9-380) - COMBINED DRAWBAR AND PICK-UP HITCH, SUPPORT BRACKET AND FRAME, NOT NORTH AMERICA (09) - CHASSIS/ATTACHMENTS

1

K309990

FRAME

drawbar

1шт.

2

K943026

HINGE

BAR hinge, front

1шт.

3

K943027

PLATE

retaining, hinge bar

1шт.

4

K602983

SCREW

BOLT, 3/8 UNC x 7/8 inch

1шт.

5

492-11038

LOCK WASHER,3/8"

1шт.

6

K309980

MOUNTING PARTS

PLATE support, left hand, reversible shaft PTO

1шт.

7

K309979

MOUNTING PARTS

PLATE support, right hand, reversible shaft PTO

1шт.

8

K603308

BOLT (SPREADER)

BOLT, 5/8 UNC x 1-3/4 inch

8шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

10

K309985

BOLT

M20 x 55 mm, thin head

2шт.

11

K206839

BOLT

M20 x 55 mm

2шт.

12

K651762

WASHER

plain, 20 mm

4шт.

13

K651511

NUT

M20

4шт.

16

K206858

PAWL

LATCH, left hand

1шт.

17

K206859

PAWL

LATCH, right hand

1шт.

18

K206857

PIN

latch pivot

2шт.

19

K623894

PIN

roll, 5/16 x 1-1/4 inch

2шт.

20

K206860

SPRING

latch

1шт.

21

K206861

BUSHING

SPACER latch pin

1шт.

22

K309993

COVER

latch, mechanism

1шт.

23

K652474

BOLT

M6 x 12 mm

2шт.

25

K310464

ROD

lower

1шт.

26

K625936

CLEVIS

PIN clevis

2шт.

27

K659105

CLIP

link pin

2шт.

28

K207634

ROD

upper

1шт.

29

K616982

NUT

3/8 inch UNF

1шт.

30

K950846

NUT

SLEEVE adjusting, 3/8 inch UNF

1шт.

31

K617282

SPECIAL NUT

lock, 3/8 inch UNF, left hand thread

1шт.

32

K308078

LEVER

hand

1шт.

33

K308082

SLEEVE

rubber, hand lever

1шт.

34

K308081

BRACKET

hand lever support

1шт.

35

K627052

BUSHING

SPACER lever pivot

1шт.

36

K600526

BOLT

3/8 UNC x 1-7/8 inch

1шт.

37

492-11038

LOCK WASHER,3/8"

1шт.

38

425-106

NUT,3/8"-16, Cl 5

1шт.

39

K616987

NUT

3/4 inch UNF

1шт.

40

K626462

DAMPER

BUSHING rubber

1шт.

41

K651832

WASHER

lock, 20 mm

4шт.
