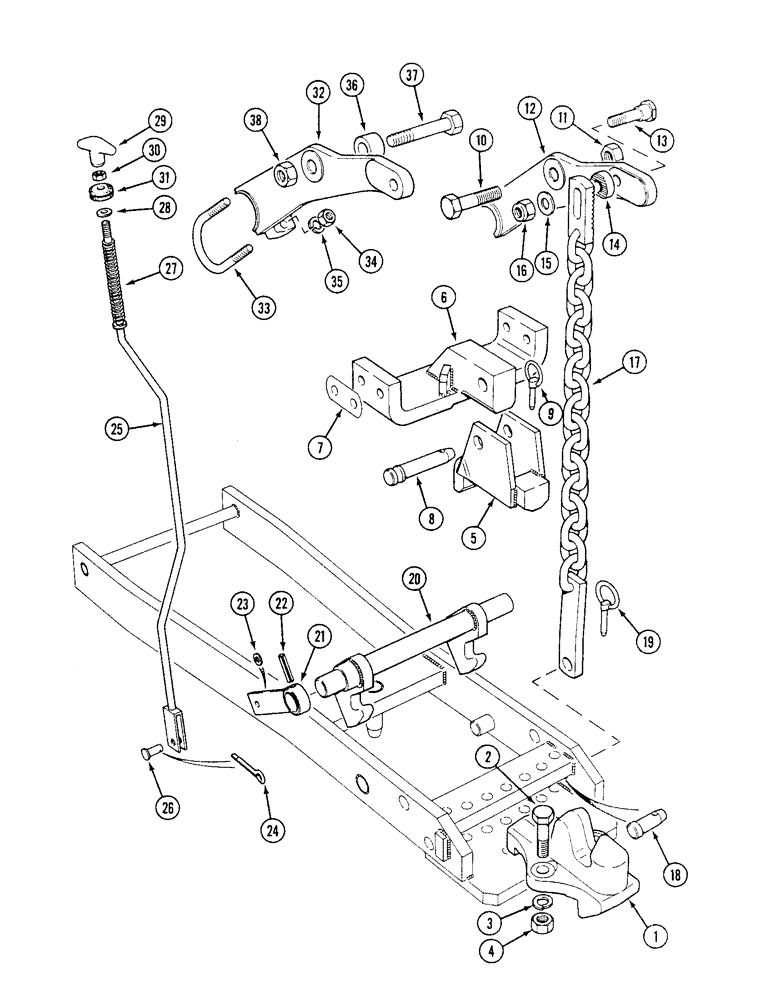

Запчасти Case IH 1494 (9-378) - PICK-UP HITCH FOR UNIVERSAL DRAWBAR, NOT NORTH AMERICA (09) - CHASSIS/ATTACHMENTS

UK4624

HITCH ASSY

PICK-UP HITCH UNIT, with cab, Includes: Ref. 1 - 31

1шт.

1

K940590

HOOK

towing

1шт.

2

K601208

BOLT

5/8 UNC x 2-1/2 inch

2шт.

3

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

K607006

NUT

hex, 5/8 inch NC

2шт.

5

K947179

STOP

towing hook

1шт.

6

K947176

PLATE

bridge

1шт.

7

K947200

SHIM

1/16 inch, 2 mm

1шт.

7

K947201

SHIM

1/32 inch, 1 mm

1шт.

8

K919725

PIN,19.05mm OD x 111.13mm L

link, sensing unit

1шт.

9

K210316

LINCH PIN

PIN ASSEMBLY linch

1шт.

10

K601462

BOLT

3/4 UNC x 3 inch

2шт.

11

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

2шт.

12

K953068

ARM

lift

2шт.

13

K942612

PIN

pivot, 5/8 inch UNC

2шт.

14

K942611

WASHER

serrated, 5/8 inch

2шт.

15

K19475

WASHER

5/8 inch

2шт.

16

K607331

NUT

Nyloc, 5/8 inch UNC

2шт.

17

K947183

CHAIN (AG)

CHAIN lift

2шт.

18

K909503

PIN

link

2шт.

19

1328218C1

LINCH PIN,11mm OD

- quick attachable, Replaces K920359

2шт.

20

K955547

LATCH

hitch

1шт.

21

K955550

LEVER

pivot

1шт.

22

K623902

PIN

roll, 3/8 x 1-3/4 inch

1шт.

23

K19472

WASHER

flat, 3/8 inch, 10 mm

1шт.

24

K19528

PIN

cotter, 1/16 x 1/2 inch

1шт.

25

K205269

ROD

release, with cab

1шт.

26

K955947

PIN

clevis, 3/8 x 5/8 inch, with cab

1шт.

27

K625251

SPRING

release rod, with cab

1шт.

28

K626884

WASHER

7/16 inch, 11 mm, special, with cab

1шт.

29

K955948

KNOB

dump control

1шт.

30

280136

NUT,3/8"-16, G8

1шт.

31

K627729

GROMMET

harness to fender support, 7/8 inch, 22 mm, with cab

1шт.

32

K203597

ARM

LIFT ARM, right hand

1шт.

33

K205268

BOLT

U-BOLT, 1/2 inch UNC

1шт.

34

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

35

K19484

LOCK WASHER

WASHER lock, 1/2 inch

2шт.

36

K203599

BUSHING

1шт.

37

K609136

BOLT

3/4 UNC x 1/2 inch, Grade V

1шт.

38

K607086

NUT

3/4 inch UNC

1шт.
