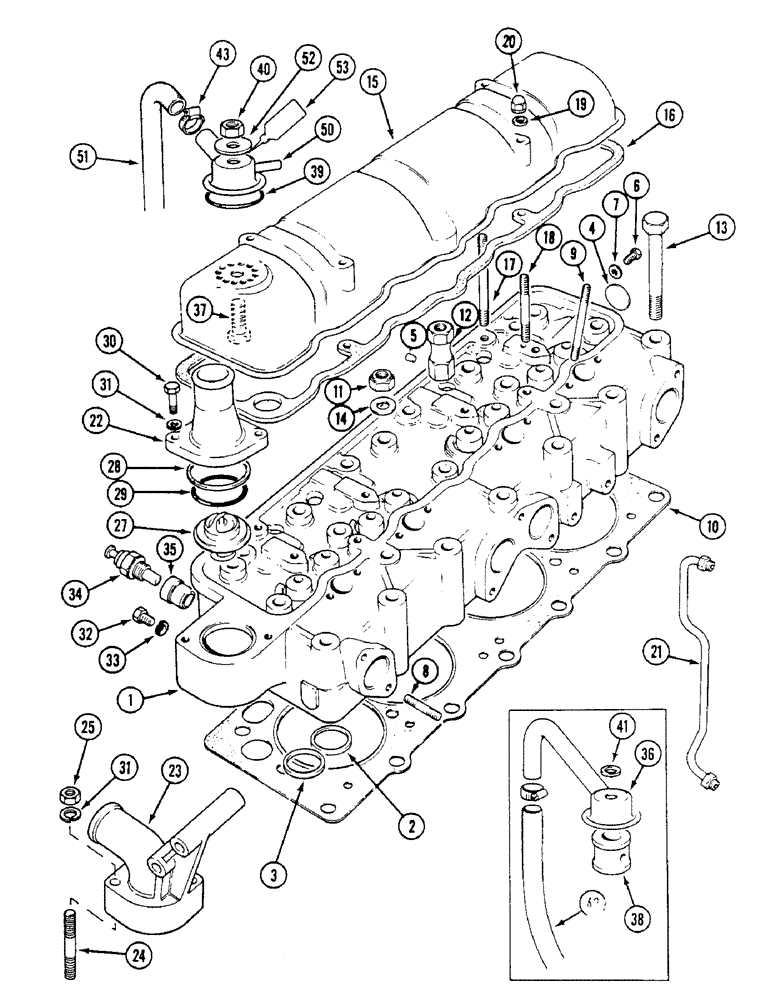

Запчасти Case IH 1494 (2-018) - CYLINDER HEAD (02) - ENGINE

1

K260131

HEAD (CYLINDER)

HEAD ASSEMBLY cylinder, Includes: Ref. 2 - 5

1шт.

2

K921246

INSERT

intake valve seat

4шт.

3

K925019

INSERT

exhaust valve seat

4шт.

4

41-1620

PLUG,Cup, 1 1/4", Stainless

cup, 1-1/4 inch diameter

1шт.

5

K900431

PLUG

taper

4шт.

6

K19591

PLUG

1/8 BSP

1шт.

7

K16732

WASHER

copper, 3/8 inch, 10 mm

1шт.

8

K608203

STUD

inlet and exhaust manifold, 3/8 NC x 1-7/16 inch

3шт.

8

K608209

STUD

inlet and exhaust manifold, 3/8 UNC x 2-1/4 inch

2шт.

8

K608237

STUD

inlet and exhaust manifold, 3/8 UNC x 1-3/4 inch

4шт.

8

K608214

STUD

inlet and exhaust manifold, 3/8 UNC x 2 inch

3шт.

9

K608107

STUD

injectors, 5/16 UNC x 2-11/16 inch

3шт.

10

K262750

GASKET

cylinder head

1шт.

11

K617594

NUT

1/2 inch UNF

5шт.

12

K906536

NUT

NUT elongated, 1/2 inch UNF

7шт.

13

326-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 8

hex, 1/2 NC x 4-1/4 inch, grade 8

7шт.

14

K953429

WASHER,13.89mm ID x 23.81mm OD x 0.71mm Thk

flat, 1/2 inch

19шт.

15

K207984

COVER

cylinder head, Replaces: K920678

1шт.

16

K905229

GASKET,3.97mm Thk

rocker arm cover

1шт.

17

K608118

STUD

5/16 UNC x 3-7/16 inch

2шт.

18

K608119

STUD

5/16 UNC x 2-13/16 inch

2шт.

19

K626653

WASHER,8.33mm ID x 14.29mm OD x 2.38mm Thk

sealing, 5/16 inch, 8 mm

4шт.

20

234-10431

CROWN NUT,Crown, 5/16"-18

4шт.

21

K902765

PIPE

TUBE oil, block to cylinder head

1шт.

22

K915630

OUTLET

PIPE water outlet, without air conditioning

1шт.

23

K207315

PIPE

TUBE water outlet, with air conditioning

1шт.

24

K608251

STUD

5/16 UNC x 3-3/8 inch

2шт.

24

K608125

STUD

5/16 UNC x 1-3/4 inch, without air conditioning

1шт.

25

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

27

K208039

THERMOSTAT

water temperature, Replaces: K917962

1шт.

28

K200225

GASKET,0.81mm Thk

thermostat

1шт.

29

238-5138

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

1шт.

30

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

31

K19481

SPRING WASHER

WASHER lock, 5/16 inch

2шт.

32

K623829

PLUG

3/8 inch BSP

1шт.

33

K19500

GASKET

WASHER sealing, 5/8 inch, 16 mm

1шт.

34

K311943

TEMPERATURE SENDER

SENDER engine temperature

1шт.

35

K203464

ADAPTER

sender, 5/8 UNF x 1/2 inch NPT

1шт.

36

K207391

COVER

breather, prior to engine P.I.N. 11429672

1шт.

37

K600803

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

1/2 UNC x 1-5/8 inch

1шт.

38

K945433

BUSHING

SPACER breather, prior to engine P.I.N. 11429672

1шт.

39

K626901

O-RING,40554" ID x 40575" OD x 0.12"

O-RING, 1-11/16 inch, 43 mm, ID

1шт.

40

86632558

JAM NUT,Jam, 1/2"-13, G5

NUT lock, 1/2 inch UNC

1шт.

41

K626443

WASHER

copper, prior to engine P.I.N. 11429672

1шт.

42

K207440

HOSE

5/8 x 20 inch, 16 x 500 mm, prior to engine P.I.N. 11429672

1шт.

43

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. #08, 0.50/0.91 Type F Worm

1шт.

K260283

KIT, ENGINE TOP GASK

GASKET KIT cylinder head

1шт.

50

K210370

COVER

breather, engine P.I.N. 11429672 and after

1шт.

51

K210186

PIPE,23.25, 6.25" L

HOSE breather, engine P.I.N. 11429672 and after

1шт.

52

K651817

WASHER

copper, engine P.I.N. 11429672 and after

1шт.

53

K962357

ADHESIVE

SEALANT Loctite 542, engine P.I.N. 11429672 and after

1шт.
