(9-376) - IMPLEMENT SAFETY CHAIN SUPPORT, NORTH AMERICA ONLY

Запчасти Case IH 1494 (9-376) - IMPLEMENT SAFETY CHAIN SUPPORT, NORTH AMERICA ONLY (09) - CHASSIS/ATTACHMENTS

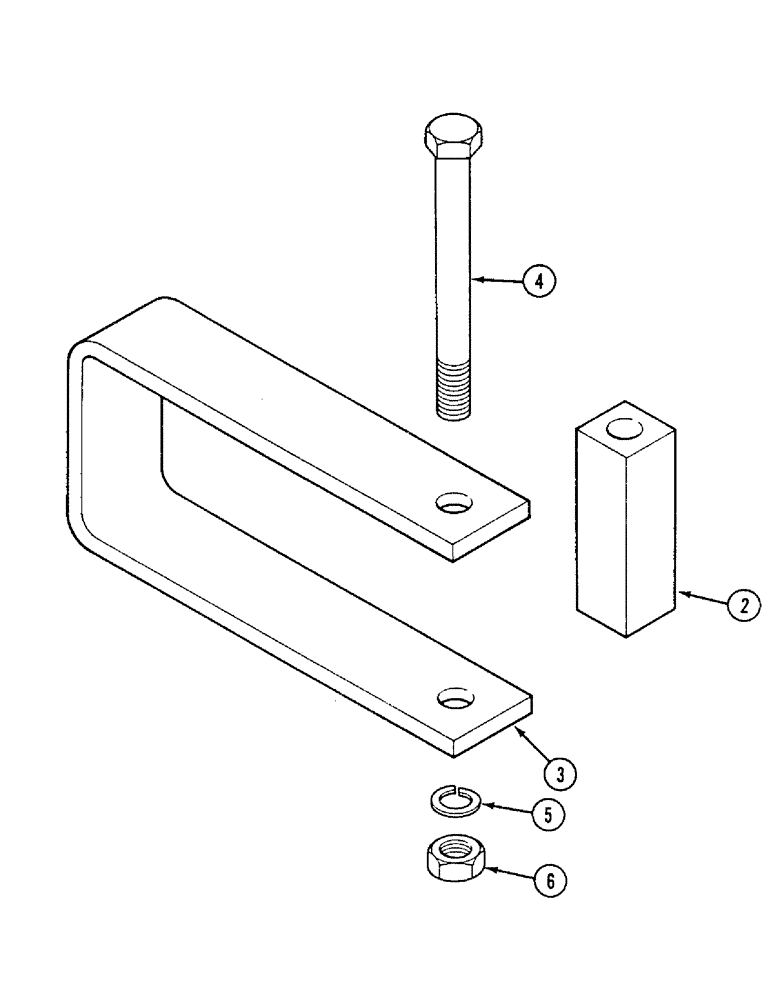

Схема запчастей Case IH 1494 - (9-376) - IMPLEMENT SAFETY CHAIN SUPPORT, NORTH AMERICA ONLY (09) - CHASSIS/ATTACHMENTS
3
6
4
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A169122

KIT

safety chain support, order components, Includes: Ref. 2 - 6

1шт.

2

A166965

BLOCK

clevis

1шт.

3

A165682

CLEVIS

safety chain

1шт.

4

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

hex, 5/8 NC x 6 inch

1шт.

5

92-21062

LOCK WASHER,5/8"

5/8"

1шт.

6

25-1610

NUT,5/8"-11, G5, Hvy

hex, heavy, 5/8 inch NC

1шт.
