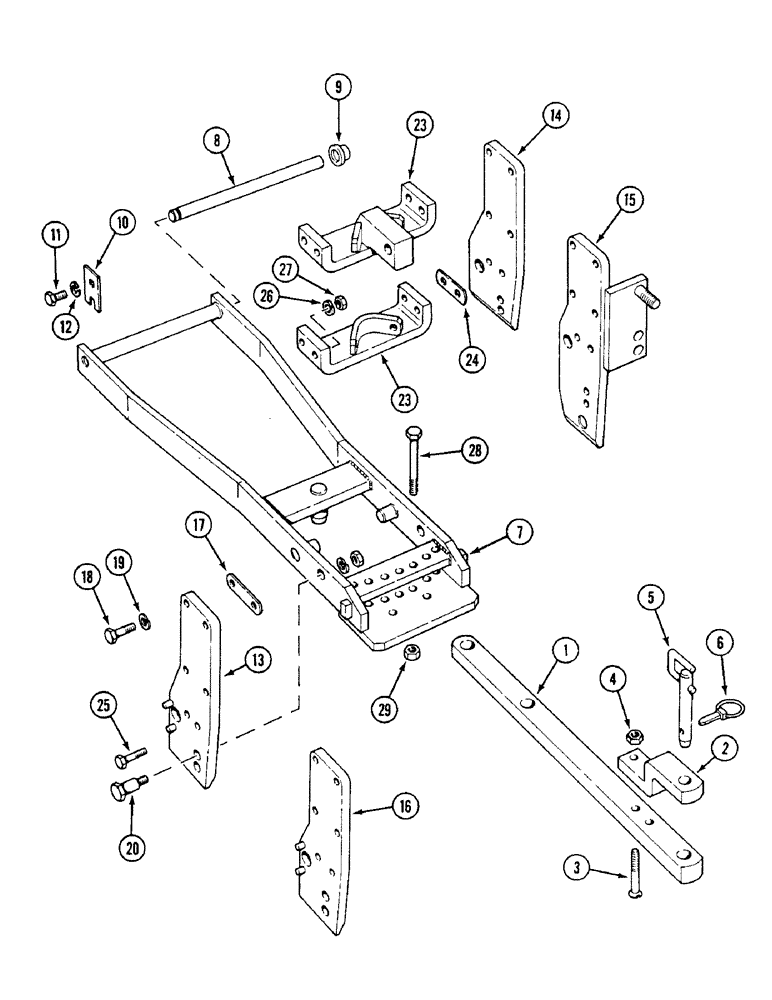

Запчасти Case IH 1494 (9-372) - UNIVERSAL DRAWBAR, PRIOR TO P.I.N. 11519846 (09) - CHASSIS/ATTACHMENTS

1

K948406

DRAWBAR, SWINGING

DRAWBAR tractor, reversible shaft PTO

1шт.

1

K947677

DRAWBAR, SWINGING

DRAWBAR tractor, multi speed PTO

1шт.

2

K916516

CLEVIS

BRACKET clevis

1шт.

3

K601664

BOLT

5/8 UNC x 3-1/4 inch

2шт.

4

K607463

NUT

self-locking, 5/8 inch UNC

2шт.

5

K916566

PIN

hitch

1шт.

6

1328218C1

LINCH PIN,11mm OD

- quick attachable, Replaces K920359

2шт.

7

K202889

SUPPORT

FRAME support, drawbar

1шт.

8

K943026

HINGE

BAR hinge, front, with cab, 1 inch x 14-3/4 inch

1шт.

8

K207576

BAR

hinge, front, without cab, 1 inch x 16-1/4 inch

1шт.

9

K207577

BUSHING

SPACER hinge bar, without cab

2шт.

10

K943027

PLATE

retaining, hinge bar

1шт.

11

K602983

SCREW

BOLT, 3/8 UNC x 7/8 inch

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

K307257

BRACKET

PLATE hitch, left hand, reversible shaft PTO

1шт.

14

REF

INSTRUCTION

PLATE hitch, right hand, with support ram fitting, See Figure 8-346

1шт.

15

REF

INSTRUCTION

PLATE hitch, with sway block fitting, See Figure 9-358

1шт.

16

K307259

BRACKET

PLATE hitch, left hand, multi speed PTO, not North America

1шт.

17

K917071

SHIM

1/16 inch, 2 mm

1шт.

17

K917072

SHIM

1/32 inch, 1 mm

1шт.

18

K603308

BOLT (SPREADER)

BOLT, 5/8 UNC x 1-3/4 inch, order 413-1028

8шт.

19

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

20

K908290

STEP BOLT

3/4 inch UNC

2шт.

21

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

22

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC.

2шт.

23

K947174

PLATE

bridge, without pick up hitch fitting

1шт.

23

K947176

PLATE

bridge, with pick up hitch fitting, not North America

1шт.

24

K947200

SHIM

1/16 inch, 2 mm

1шт.

24

K947201

SHIM

1/32 inch, 1 mm

1шт.

25

K601208

BOLT

5/8 UNC x 2-1/2 inch, order 413-1040

4шт.

26

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

27

K607006

NUT

hex, 5/8 inch NC, order 425-1010

4шт.

28

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

hex, 5/8 NC x 4-1/4 inch

2шт.

29

K607306

NUT

self locking, 5/8 inch UNC, order 232-14110

2шт.
