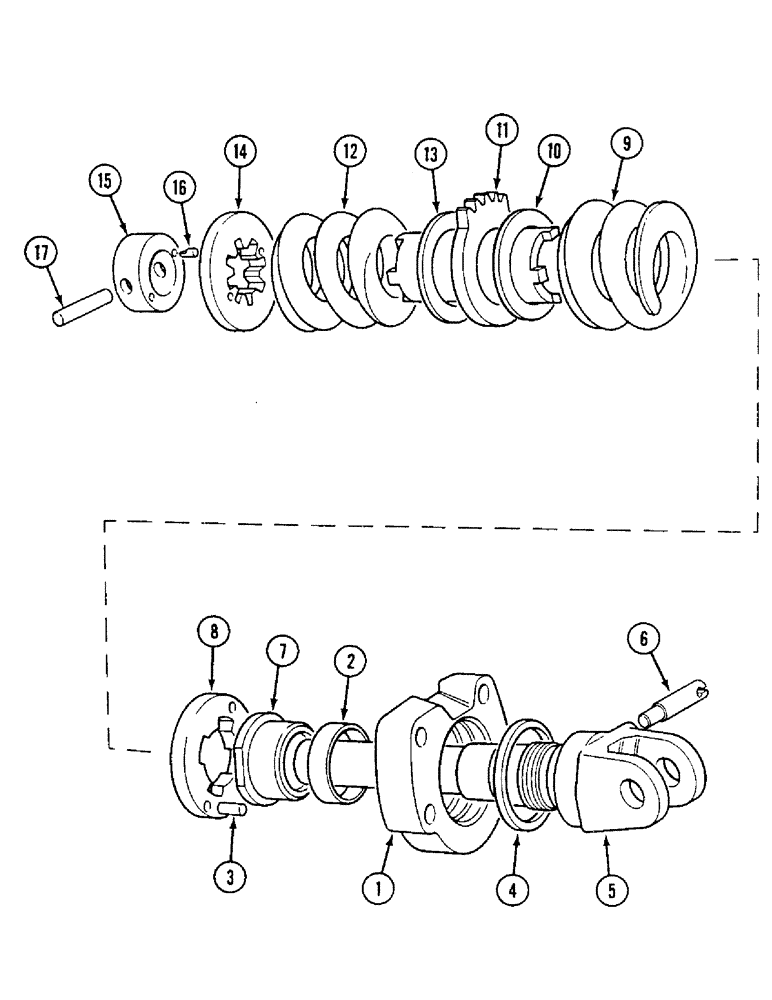

Запчасти Case IH 1494 (9-368) - SELECTIVE SENSING - SHAFT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

K947303

SHAFT

ASSEMBLY sensing, Includes: Ref. 1 - 3

1шт.

1

K964912

PLATE

ASSEMBLY end, Includes: Ref. 2 & 3

1шт.

2

K621423

BUSHING

sleeve

1шт.

3

K940031

PIN

DOWEL, 1/4 x 3/4 inch

2шт.

4

K623460

WIPER

SEAL wiper, 2-1/2 inch, 64 mm, ID

1шт.

5

K929808

SHAFT

sensing

1шт.

6

K940047

BRACKET

SUPPORT cable, inner

1шт.

7

K940035

SLEEVE

shaft

1шт.

8

K947302

WASHER

thrust

1шт.

9

K928315

SPRING

2 inch, 51 mm, ID

1шт.

10

K928388

SHIM

0.003 inch, 0.08 mm

1шт.

10

K928389

SHIM

0.007 inch, 0.18 mm

1шт.

10

K928390

SHIM

0.015 inch, 0.38 mm

1шт.

11

K940036

SUPPORT

spring

1шт.

12

K928314

SPRING

1-3/4 inch, 44 mm, ID

1шт.

13

K928392

SHIM

0.003 inch, 0.08 mm

1шт.

13

K928393

SHIM

0.007 inch, 0.18 mm

1шт.

13

K928394

SHIM

0.015 inch, 0.38 mm

1шт.

14

K940039

WASHER

thrust, 0.373 inch, 9.47 mm

1шт.

14

K940040

WASHER

thrust, 0.365 inch, 9.27 mm

1шт.

14

K940041

WASHER

thrust, 0.357 inch, 9.07 mm

1шт.

15

K947867

COLLAR

ASSEMBLY, with dowels, Includes: Ref. 16

1шт.

16

K940043

PIN

DOWEL locating

2шт.

17

37-1636

DOWEL,3/8" x 2 1/4"

PIN retaining

1шт.
