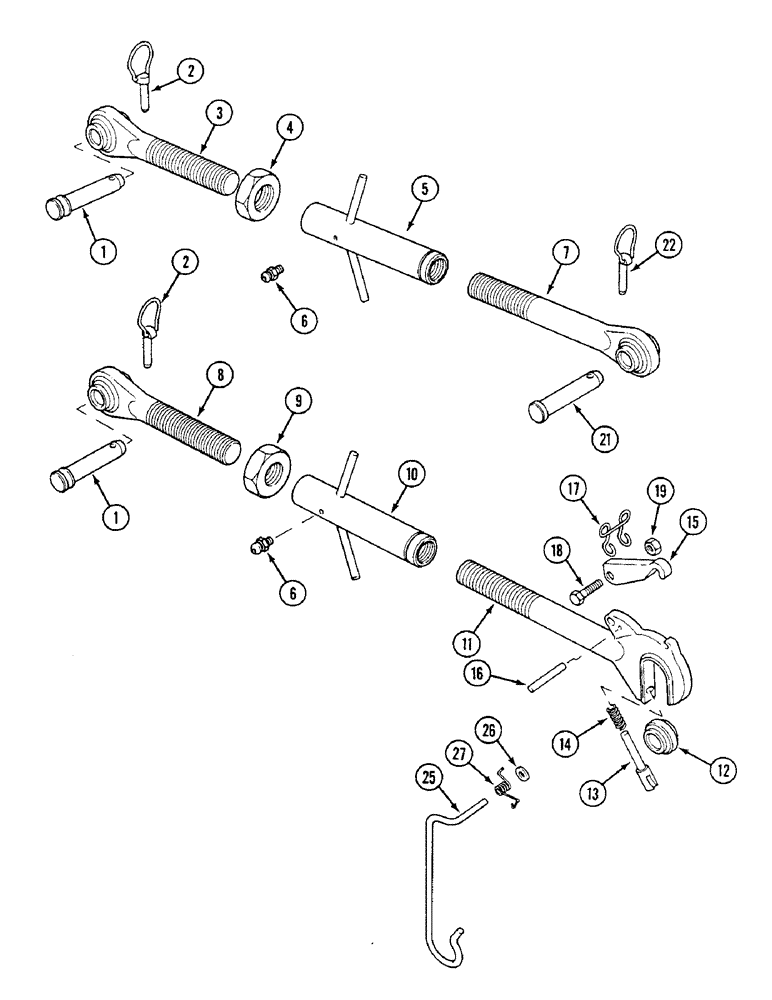

Запчасти Case IH 1494 (9-364) - TOP LINK, STANDARD AND JEFFES TYPE (09) - CHASSIS/ATTACHMENTS

1

K919725

PIN,19.05mm OD x 111.13mm L

link, sensing unit

1шт.

2

K210316

LINCH PIN

PIN ASSEMBLY linch, Replaces: K66408

1шт.

K940501

LINK

ASSEMBLY, top, standard type, order components, Includes: Ref. 3 - 7

1шт.

3

K920798

BALL

SCREW ASSEMBLY ball, tractor end

1шт.

4

K19448

LOCK NUT

lock, 1-1/4 inch BSF

1шт.

5

K920800

TURNBUCKLE

BUCKLE turn

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

7

K922791

NO LONGER SERVICED

SCREW AND HOUSING, implement end

1шт.

K203451

LINK

ASSEMBLY, top, Jeffes type, order components, Includes: Ref. 8 - 19

1шт.

8

K920798

BALL

SCREW ASSEMBLY ball, tractor end

1шт.

9

K19448

LOCK NUT

lock, 1-1/4 inch BSF

1шт.

10

K920800

TURNBUCKLE

BUCKLE turn

1шт.

11

K201785

HOOK

ASSEMBLY ball, implement end, Includes: Ref. 12 - 19

1шт.

12

K210453

BALL

top hitch

1шт.

13

K210788

PIN ball retaining

1шт.

14

K210789

SPRING retaining pin

1шт.

15

K210790

LEVER release

1шт.

16

K210791

PIN roll, 5/32 x 3/4 inch

1шт.

17

K210792

SPRING release lever

2шт.

18

K210793

BOLT, 5/16 x 1-3/8 inch, Whitworth

1шт.

19

K210731

NUT self locking, 5/16 inch, Whitworth

1шт.

21

K65690

HITCH PIN

PIN link, category

1шт.

22

1328218C1

LINCH PIN,11mm OD

- quick attachable, Replaces K920359

1шт.

25

K303358

LATCH

HOOK, top link stowage, with cab

1шт.

26

K692198

WASHER

hook retaining

1шт.

27

K658401

SPRING

hook

1шт.
