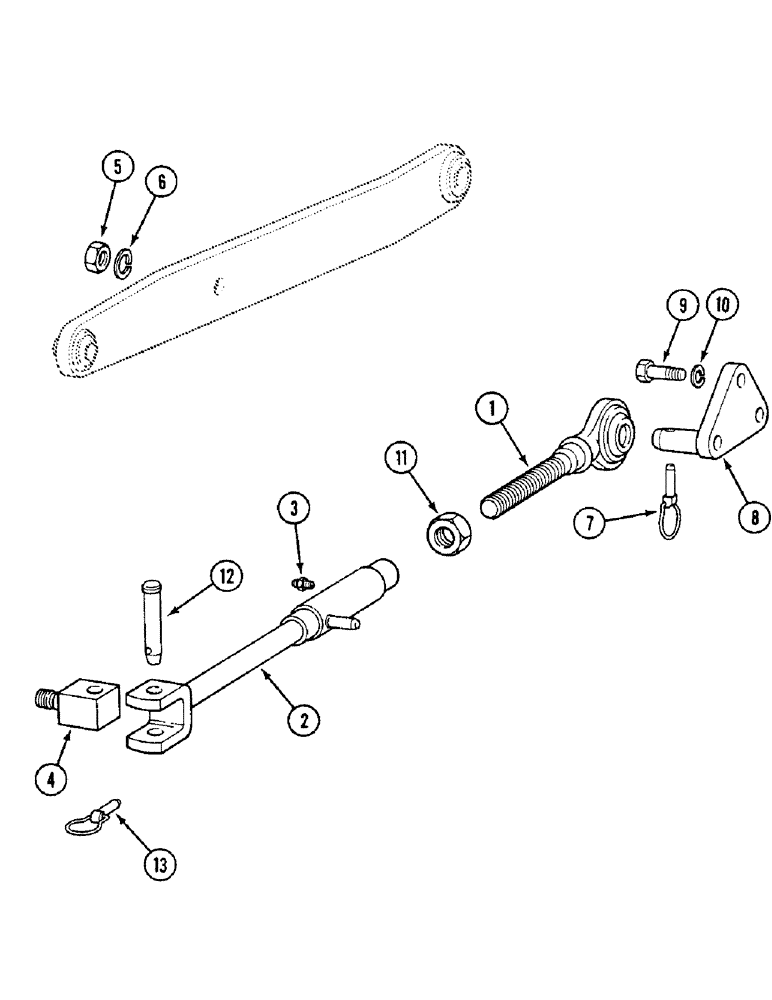

Запчасти Case IH 1494 (9-362) - LINKAGE STABILIZERS AND SWAY BLOCKS, P.I.N. 11519846 AND AFTER (09) - CHASSIS/ATTACHMENTS

U4688

LINKAGE STABILIZER ATTACHMENT, order components, Includes: Ref. 1 - 3

1шт.

REF

INSTRUCTION

BAR ASSEMBLY stabilizer, order components, Includes: Ref. 1 - 3

2шт.

1

K210416

BALL JOINT

HOUSING tube and yoke

1шт.

2

K210413

HOUSING

ball, front

1шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

4

K210422

PIN

lower link anchor

2шт.

5

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

2шт.

6

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

7

1328218C1

LINCH PIN,11mm OD

- quick attachable

2шт.

8

K210409

BRACKET

reduction housing

2шт.

9

K603306

BOLT

hex, 5/8 NC x 1-1/2 inch, order 413-1024

6шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

11

425-1416

JAM NUT,Jam, 1"-8, G5

hex, jam, 1 inch NC

1шт.

12

K912936

PIN

link

2шт.

13

K210316

LINCH PIN

PIN ASSEMBLY linch

2шт.
