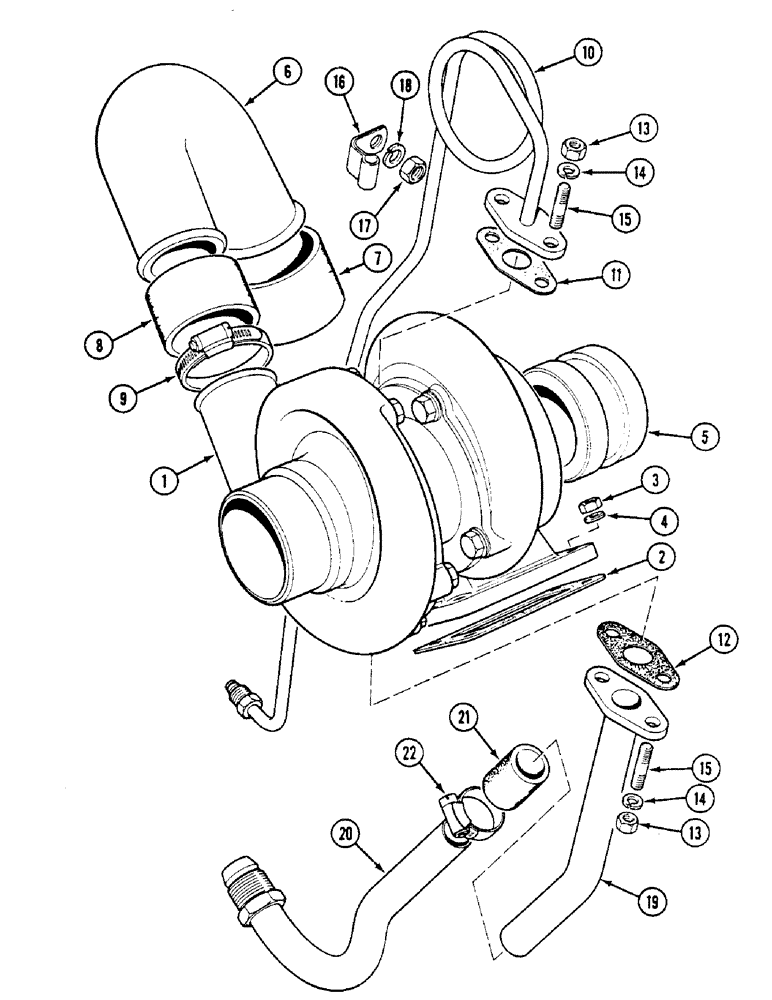

Запчасти Case IH 1494 (2-016) - TURBOCHARGER (02) - ENGINE

1

K207513

TURBOCHARGER

Schwitzer 310335

1шт.

2

K929727

GASKET,0.38mm Thk

lower

1шт.

3

425-106

NUT,3/8"-16, Cl 5

4шт.

4

K19472

WASHER

flat, 3/8 inch, 10 mm

4шт.

5

K929731

TUBE,2.375" ID x 2.875" OD

CONNECTOR exhaust

1шт.

6

K953118

PIPE

turbocharger to inlet manifold

1шт.

7

K626803

HOSE,2.31 mm ID x 50.80 mm

1шт.

8

K626802

HOSE

front to rear tube

1шт.

9

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

CLAMP, HOSE, #36, 1.81/2.75 Type F Worm

4шт.

10

K207508

HYD TUBE

TUBE oil, Serial Range: block-turbocharger

1шт.

11

K207511

OIL SEAL

oil inlet, Replaces: K210377 after test period

2шт.

12

K207488

OIL SEAL

oil outlet

1шт.

13

825-1408

NUT,M8, Cl 8

4шт.

14

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

15

K655093

STUD

M8 x 32 mm

4шт.

16

K628386

CLIP

turbocharger tube

1шт.

17

425-106

NUT,3/8"-16, Cl 5

1шт.

18

492-11038

LOCK WASHER,3/8"

1шт.

19

K207663

PIPE

TUBE oil return, upper

1шт.

20

K202554

PIPE,0.75" OD x 10.875, 4.25" L

TUBE oil return, lower

1шт.

21

K626816

HOSE

3/4 x 2 inch, 19 x 51 mm

1шт.

22

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

2шт.
