Запчасти Case IH 1494 (9-354) - LIFT LINK (09) - CHASSIS/ATTACHMENTS

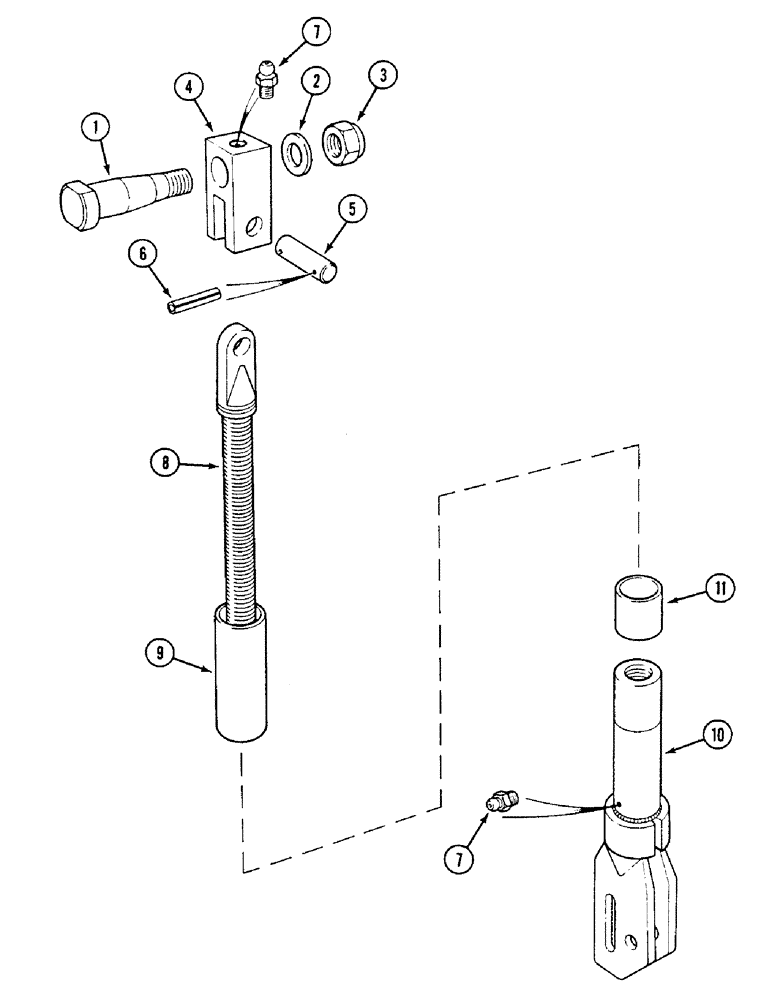

Схема запчастей Case IH 1494 - (9-354) - LIFT LINK (09) - CHASSIS/ATTACHMENTS
11
5
6
10
1
3
9
2
4
7
8
7

Артикул

Название

Примечание

Количество

1

K914191

PIN

BOLT, 3/4 inch UNC

1шт.

2

K19476

WASHER

3/4 inch, 19 mm

1шт.

3

K607446

NUT

self-locking, 3/4 inch UNC

1шт.

REF

INSTRUCTION

ROD ASSEMBLY lift, without cab, order components, Includes: Ref. 4 - 11

1шт.

REF

INSTRUCTION

ROD ASSEMBLY lift, with cab, order components, Includes: Ref. 4 - 11

1шт.

4

K921914

FORK

END fork

1шт.

5

K948353

PIVOT PIN

PIN pivot, 5/8 x 2-1/4 inch

1шт.

6

438-11214

LOCK PIN,4.76mm OD x 22.23mm L, Slotted

Pin, 3/16" x 7/8", Slotted

2шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

8

K962976

ADJUSTMENT SCREW

ASSEMBLY adjusting, Includes: Ref. 9

1шт.

9

K940509

TUBE,1.75" DIA x 7.125" L

1-3/8 x 7-1/8 inch

1шт.

10

K203400

FORK

NUT adjusting, slotted nut, Jeffes hook

1шт.

11

K202602

BUSHING

SPACER, with cab

2шт.

Выбрано товаров: 13
