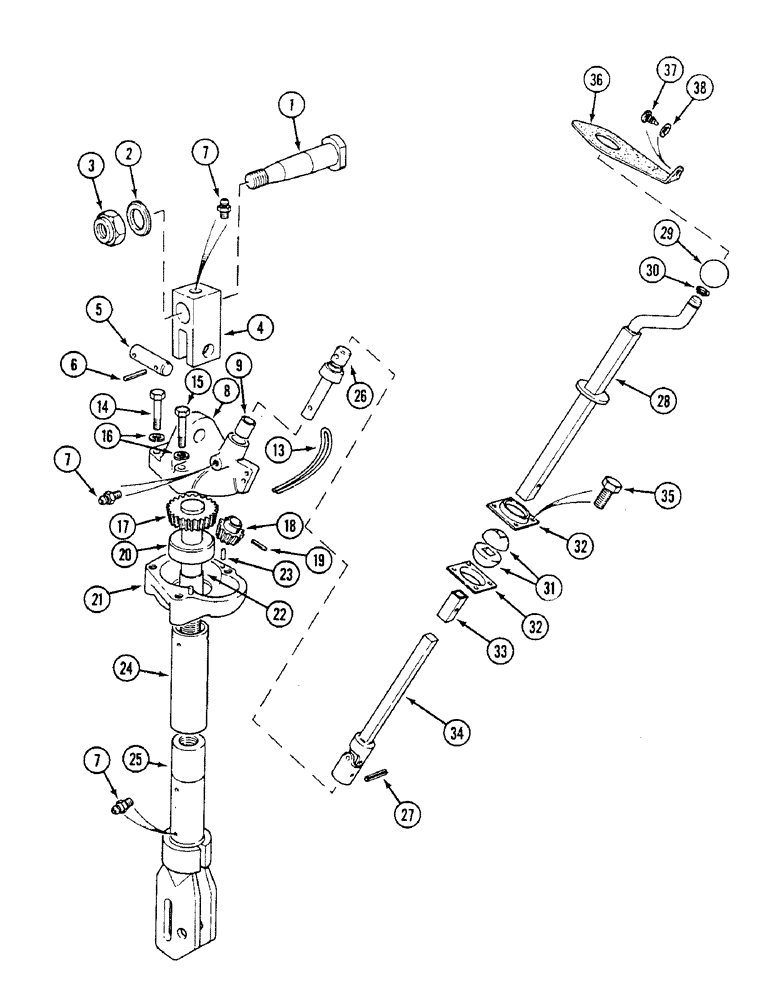

Запчасти Case IH 1494 (9-352) - LEVELING LEVER, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

1

K914191

PIN

BOLT, 3/4 inch UNC

1шт.

2

K19476

WASHER

3/4 inch, 19 mm

1шт.

3

K607446

NUT

self locking, 3/4 inch UNC

1шт.

REF

INSTRUCTION

LEVELING LEVER ASSEMBLY, order components, Includes: Ref. 4 - 26

1шт.

4

K921914

FORK

END fork

1шт.

5

K948353

PIVOT PIN

PIN pivot, 5/8 x 2-1/4 inch

1шт.

6

438-11214

LOCK PIN,4.76mm OD x 22.23mm L, Slotted

Pin, 3/16" x 7/8", Slotted

2шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

3шт.

8

K962691

COVER

CAP ASSEMBLY gear housing, Includes: Ref. 9

1шт.

9

K621340

BUSHING

lever

2шт.

14

K600404

BOLT

3/8 UNC x 1-1/2 inch, order 413-624

2шт.

15

K600407

BOLT

3/8 UNC x 1-7/8 inch, order 413-630

2шт.

16

492-11038

LOCK WASHER,3/8"

4шт.

17

K924725

SHAFT

GEAR bevel, with shaft

1шт.

18

K919769

GEAR

PINION bevel

1шт.

19

K623946

PIN

roll, 5/32 x 15/16 inch

1шт.

20

K19187

THRUST BEARING

BEARING thrust

1шт.

21

K962975

HOUSING

ASSEMBLY gear, Includes: Ref. 22 - 24

1шт.

22

K621339

BUSHING

gear housing

2шт.

23

K632063

DOWEL, 3/16 x 1/2 inch

2шт.

24

K940510

TUBE,1.75" ID x 6.187" L

shaft, 1-3/4 x 6-1/4 inch

1шт.

25

K203400

FORK

NUT adjusting, slotted nut, Jeffes hook

1шт.

26

K954077

SHAFT

bevel pinion

1шт.

27

K691356

PIN

roll, 5 x 25 mm

1шт.

K307644

HANDLE

ASSEMBLY telescopic

1шт.

28

K307645

TOP

SPINDLE AND HANDLE, upper

1шт.

29

K919763

BUTTON

KNOB lever

1шт.

30

A10916

RING, SNAP

RING retaining

1шт.

31

K303520

BALL JOINT

BALL nylon, half

2шт.

32

K303518

CASE

SOCKET ball

2шт.

33

K303531

SLEEVE

BUSHING plastic

1шт.

34

K303648

ARM

SPINDLE, with universal joint

1шт.

35

K653339

SCREW,Hex, M5 x 0.8 x 12mm

M5 x 12 mm

4шт.

36

K303814

RUBBER

STRAP retaining, handle

1шт.

37

K652753

SCREW

M8 x 16 mm

1шт.

38

K303630

BUSHING

WASHER, 8 mm

1шт.
