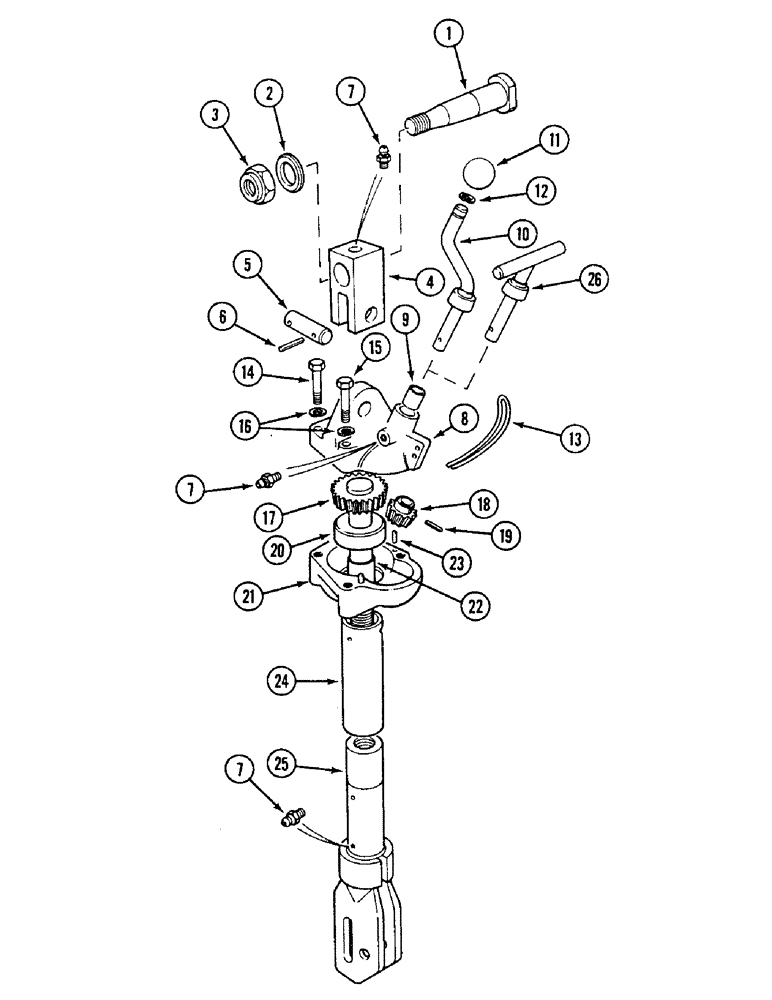

Запчасти Case IH 1494 (9-350) - LEVELING LEVER, TRACTORS WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1

K914191

PIN

BOLT, 3/4 inch UNC

1шт.

2

K19476

WASHER

3/4 inch, 19 mm

1шт.

3

K607446

NUT

self locking, 3/4 inch UNC

1шт.

REF

INSTRUCTION

LEVELING LEVER ASSEMBLY, not North America, Includes: Ref. 4 - 26

1шт.

REF

INSTRUCTION

LEVELING LEVER ASSEMBLY, North America only, order components, Includes: Ref. 4 - 26

1шт.

4

K921914

FORK

END fork

1шт.

5

K948353

PIVOT PIN

PIN pivot, 5/8 x 2-1/4 inch

1шт.

6

438-11214

LOCK PIN,4.76mm OD x 22.23mm L, Slotted

Pin, 3/16" x 7/8", Slotted

2шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

3шт.

8

K962691

COVER

CAP ASSEMBLY gear housing, Includes: Ref. 9

1шт.

9

K621340

BUSHING

lever

2шт.

10

K919761

LEVER

HANDLE, with knob, not North America, Includes: Ref. 11 & 12

1шт.

11

K919763

BUTTON

KNOB lever

1шт.

12

A10916

RING, SNAP

RING retaining

1шт.

13

K924723

SPRING

LATCH spring

1шт.

14

K600404

BOLT

3/8 UNC x 1-1/2 inch, order 413-624

2шт.

15

K600407

BOLT

3/8 UNC x 1-7/8 inch, order 413-630

2шт.

16

492-11038

LOCK WASHER,3/8"

order 492-11038 3/8"

4шт.

17

K924725

SHAFT

GEAR bevel, with shaft

1шт.

18

K919769

GEAR

PINION bevel

1шт.

19

K623946

PIN

roll, 5/32 x 15/16 inch

1шт.

20

K19187

THRUST BEARING

BEARING thrust

1шт.

21

K962975

HOUSING

ASSEMBLY gear, Includes: Ref. 22 - 26

1шт.

22

K621339

BUSHING

gear housing

2шт.

23

K32063

PIN

DOWEL, 3/16 x 1/2 inch

2шт.

24

K940510

TUBE,1.75" ID x 6.187" L

shaft, 1-3/4 x 6-1/4 inch

1шт.

25

K203400

FORK

NUT adjusting, slotted nut, Jeffes hook

1шт.

26

K210133

LEVER

HANDLE hand, North America only

1шт.
