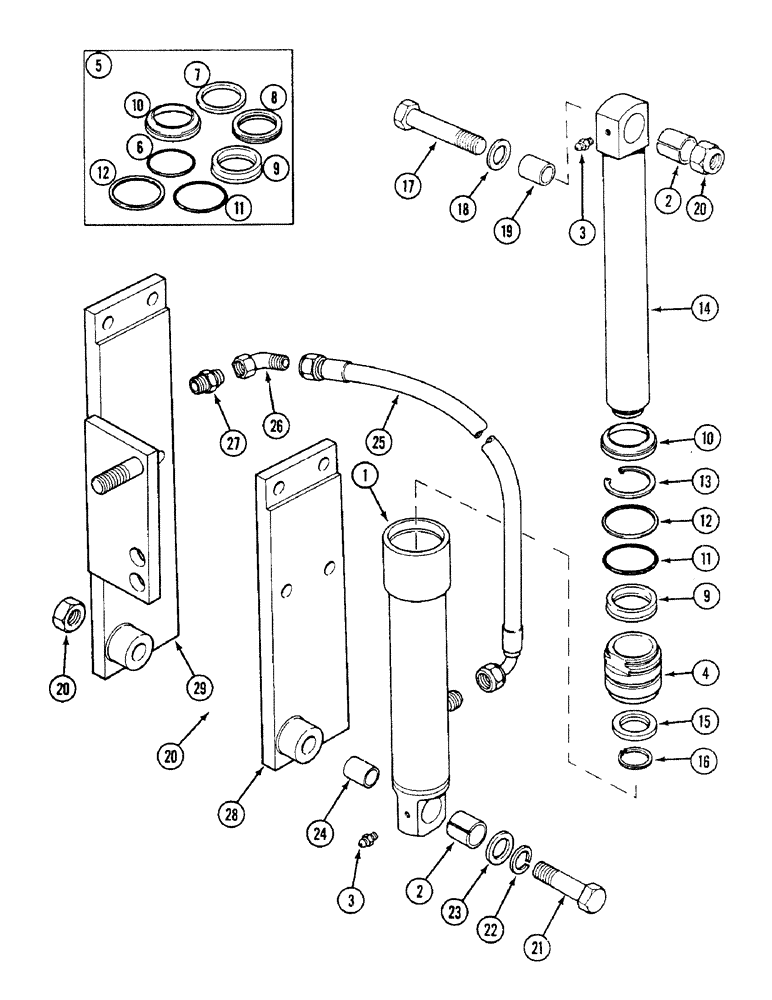

Запчасти Case IH 1494 (8-348) - SHORT SUPPORT CYLINDER - LINKAGE, P.I.N. 11519846 AND AFTER (08) - HYDRAULICS

UK6774

CYLINDER

LINKAGE SUPPORT CYLINDER UNIT, Includes: Ref. 1 - 27

1шт.

K311619

CYLINDER

ASSEMBLY, 17-1/2 inch, 445 mm, x 9-1/2 inch, 240 mm, stroke, Includes: Ref. 1 - 16

1шт.

1

K311543

TUBE

CASE support cylinder

1шт.

2

K690720

BUSHING

cylinder

2шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

4

K311612

SLEEVE

cylinder

1шт.

5

REF

INSTRUCTION

KIT seals

1шт.

6

238-6327

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

1шт.

7

K691286

RING

back-up, 1-3/4 inch, 44 mm, ID

1шт.

8

K691285

SEAL

RING sealing, 1-3/4 inch, 44 mm, ID

1шт.

9

K628134

SEAL

RING sealing, 1-3/4 inch, 44 mm, ID

1шт.

10

K691505

SEAL,44.45mm ID x 12.7mm Thk

scraper, 1-3/4 inch, 44 mm, ID

1шт.

11

K24844

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

2-1/4 inch, 57 mm, ID, order 238-6228

1шт.

12

K623529

RING,56.95mm ID x 1.83mm OD x 3.3mm Thk

back-up, 2-1/4, 57 mm, ID

1шт.

13

100-21250

SNAP RING,2.50", Int, #250

Ring, Snap, 2.50", Int, #250

1шт.

14

K311554

ROD

piston

1шт.

15

K924643

STOP

RING piston stop

1шт.

16

K11129

RING, SNAP

RING snap, 1-1/4 inch, 31 mm, external

2шт.

17

K601466

BOLT

ramshaft arm, 3/4 UNC x 4 inch, order 413-1264

1шт.

18

K19476

WASHER

3/4 inch, 19 mm

1шт.

19

K901963

BUSHING

piston rod

1шт.

20

K607446

NUT

self locking, 3/4 inch UNC

2шт.

21

K210439

BOLT

3/4 UNC x 5-1/2 inch, special, hitch plate

1шт.

22

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

23

K19476

WASHER

3/4 inch, 19 mm

1шт.

24

K901963

BUSHING

piston rod

1шт.

25

K924211

HOSE

TUBE flexible, 3/4 UNF x 45 inch

1шт.

26

K622115

NUT

ELBOW, swivel nut, 3/4 inch UNF, order 218-5230

1шт.

27

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss

1шт.

28

K311600

PLATE

hitch, multi speed PTO

1шт.

28

K311568

PLATE

hitch, reversible shaft PTO

1шт.

29

K311539

PLATE

hitch, with sway blocks, multi speed PTO

1шт.

29

K311569

PLATE

hitch, with sway blocks, reversible shaft PTO

1шт.
