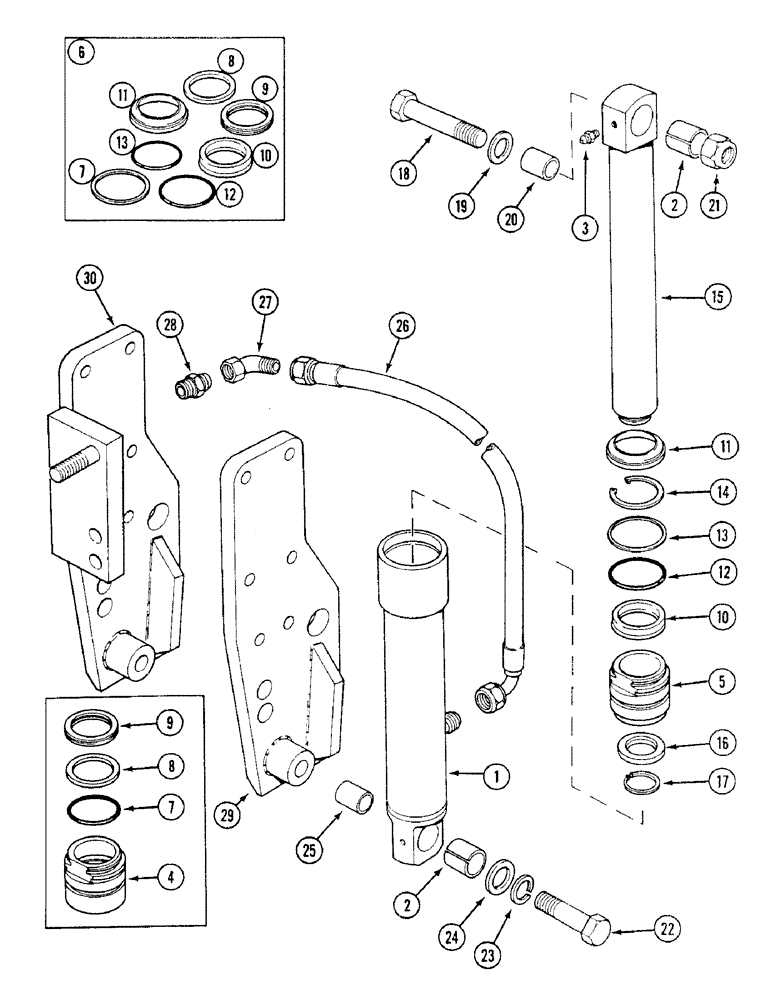

Запчасти Case IH 1494 (8-346) - LONG SUPPORT CYLINDER - LINKAGE, PRIOR TO P.I.N. 11519846 (08) - HYDRAULICS

UK1616

SUPPORT

LINKAGE SUPPORT CYLINDER UNIT, order components, Includes: Ref. 1 - 28

1шт.

K924497

CYLINDER

ASSEMBLY, 22-7/16 inch, 580 mm, x 11 inch, 280 mm, stroke, Includes: Ref. 1 - 28

1шт.

1

K924634

CYLINDER

CASE support cylinder

1шт.

2

K690720

BUSHING

cylinder

2шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

4

K924639

SLEEVE

cylinder, Serial Range: prior-P.I.N.11519846

1шт.

5

K311612

SLEEVE

cylinder, Replaces: K924639, P.I.N.11519846 and after

1шт.

6

REF

INSTRUCTION

KIT seals

1шт.

7

238-6327

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

1шт.

11

K691505

SEAL,44.45mm ID x 12.7mm Thk

scraper, 1-3/4 inch, 44 mm, ID

1шт.

12

K24844

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

2-1/4 inch, 57 mm, ID, order 238-6228

1шт.

13

K623529

RING,56.95mm ID x 1.83mm OD x 3.3mm Thk

back-up, 2-1/4, 57 mm, ID

1шт.

14

100-21250

SNAP RING,2.50", Int, #250

Ring, Snap, 2.50", Int, #250

1шт.

15

K924640

ROD

piston

1шт.

16

K924643

STOP

RING piston stop

1шт.

17

K11129

RING, SNAP

RING snap, 1-1/4 inch, 31 mm, external

2шт.

18

K601466

BOLT

ramshaft arm, 3/4 UNC x 4 inch, order 413-1264

1шт.

19

K19476

WASHER

3/4 inch, 19 mm

1шт.

20

K901963

BUSHING

piston rod

1шт.

21

K607446

NUT

self-locking, 3/4 inch UNC

1шт.

22

K601462

BOLT

3/4 UNC x 3 inch, order 413-1248

1шт.

23

K19476

WASHER

lock, 3/4 inch

1шт.

24

K901963

BUSHING

WASHER, 3/4 inch, 19 mm

1шт.

25

K924211

HOSE

BUSHING piston rod

1шт.

26

K622115

NUT

TUBE flexible, 3/4 UNF x 45 inch

1шт.

27

K622115

NUT

ELBOW, swivel nut, 3/4 inch UNF, order 218-5230

1шт.

28

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss

1шт.

29

K307260

BRACKET

PLATE hitch, multi speed PTO

1шт.

29

K307258

BRACKET

PLATE hitch, reversible shaft PTO

1шт.

30

K306941

BRACKET

PLATE hitch, with sway blocks, multi speed PTO

1шт.

30

K306917

BRACKET

PLATE hitch, with sway blocks, reversible shaft PTO

1шт.
