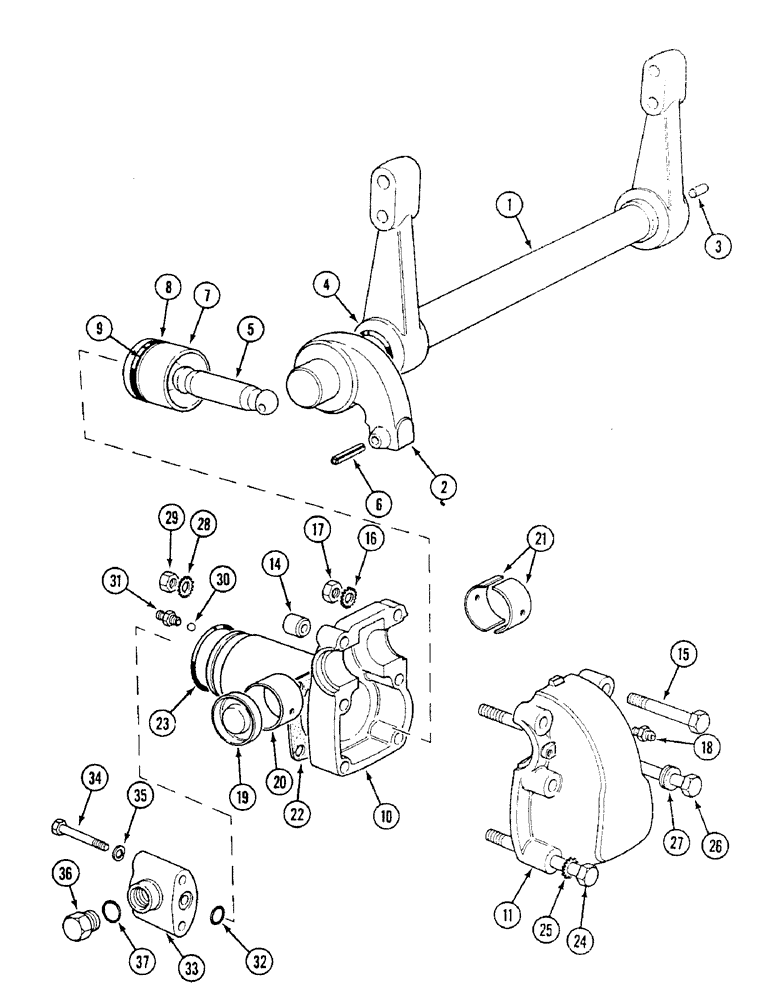

Запчасти Case IH 1494 (8-344) - RAMSHAFT AND CYLINDER (08) - HYDRAULICS

1

K921919

SHAFT

RAMSHAFT AND LEVERS, Includes: Ref. 2 & 3

1шт.

2

K913762

ARM

LEVER ram

1шт.

3

K621807

PIN

DOWEL, 5/16 x 1/2 inch

1шт.

4

238-5331

O-RING,0.21" Thk x 2.225" ID, -331, Cl 5, 75 Duro

2 inch ID

1шт.

5

K913774

ROD

centering

1шт.

6

138-141

LOCK PIN,1/4" x 1 7/8", Slotted

PIN, 1/4" x 1 7/8", Slotted

1шт.

7

K913769

PISTON

standard size

1шт.

7

K946371

PISTON

oversize 0.020 inch, 0.51 mm

1шт.

8

238-6338

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

1шт.

9

K623567

RING,79.09mm ID x 89.18mm OD x 2.64mm Thk

backup

1шт.

10

K207230

CYLINDER

BODY AND COVER, Replaces: K260467, Includes: Ref. 11 - 17

1шт.

11

K207022

COVER

1шт.

14

K924685

RUBBER

RESTRICTOR cylinder body

1шт.

15

K608865

BOLT

5/8 UNC x 4-1/2 inch

2шт.

16

K11516

WASHER

lock, 5/8 inch, order 493-41065

2шт.

17

425-1010

NUT,5/8"-11, G5

2шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

19

K913773

PLUG

DISC sealing

1шт.

20

K913758

BUSHING,57.19mm ID x 61.38mm OD x 28.83mm L

shaft

1шт.

21

K913772

BEARING HALF

2шт.

22

K926385

GASKET

rear axle housing

1шт.

23

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

1шт.

24

413-892

BOLT,Hex, 1/2" - 13 x 5-3/4", Gr 5

hex, 1/2 NC x 5-3/4 inch

2шт.

25

K11518

WASHER

lock, order 193-87

2шт.

26

K601322

BOLT

5/8 UNC x 13 inch

2шт.

27

K626874

WASHER

5/8 inch, 16 mm, special

2шт.

28

K11516

WASHER

lock, 5/8 inch, order 493-41065

2шт.

29

425-1010

NUT,5/8"-11, G5

2шт.

30

211-1010

BALL,5/16" OD

steel, chrome alloy, 5/16 inch, grade 24

1шт.

31

K210238

SCREW

air, Replaces: K910104

1шт.

32

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

33

K206893

PIPE FITTING

CONNECTOR, Serial Range: tube-cylinder

1шт.

34

K600414

BOLT

3/8 UNC x 2-3/4 inch, power shift, order 413-644

2шт.

35

492-11038

LOCK WASHER,3/8"

2шт.

36

K920826

O-RING

PLUG, 3/4 inch UNF

1шт.

37

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
